Test P: The Fog Lamps Are Inoperative
Test P: The Fog Lamps Are Inoperative

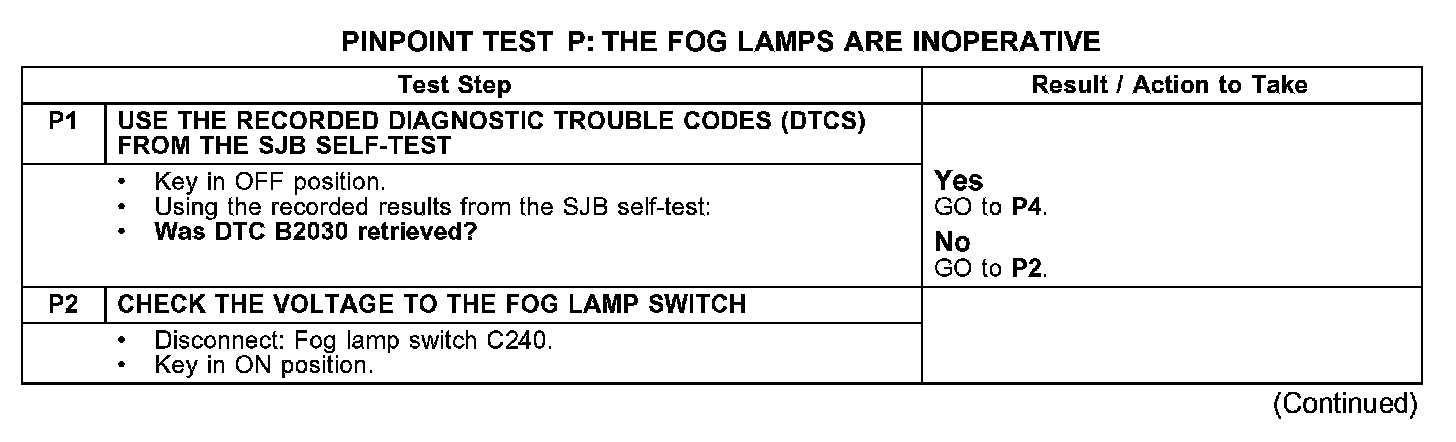

PINPOINT TEST P: THE FOG LAMPS ARE INOPERATIVE
P1-P2:

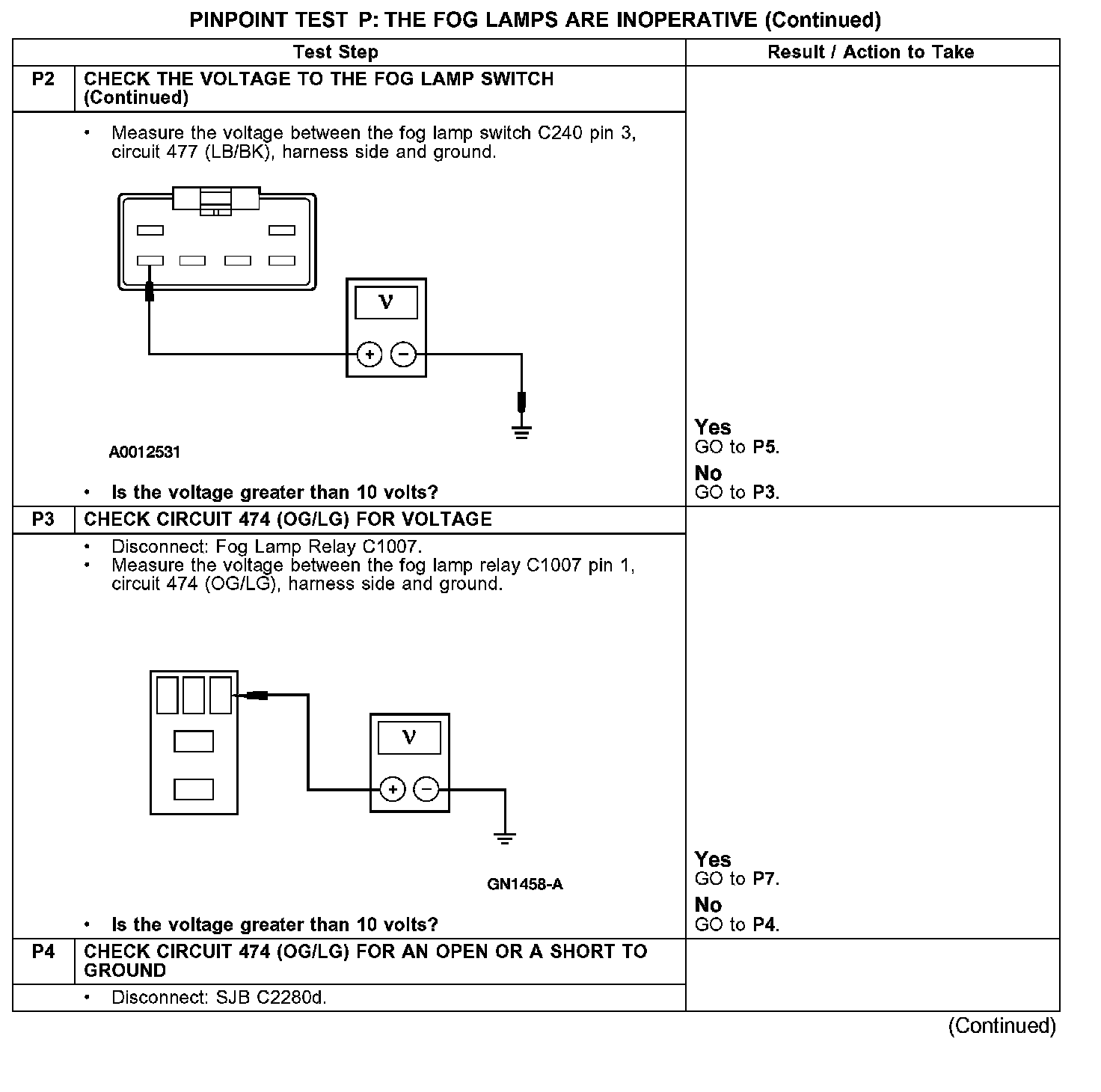

P2-P4:

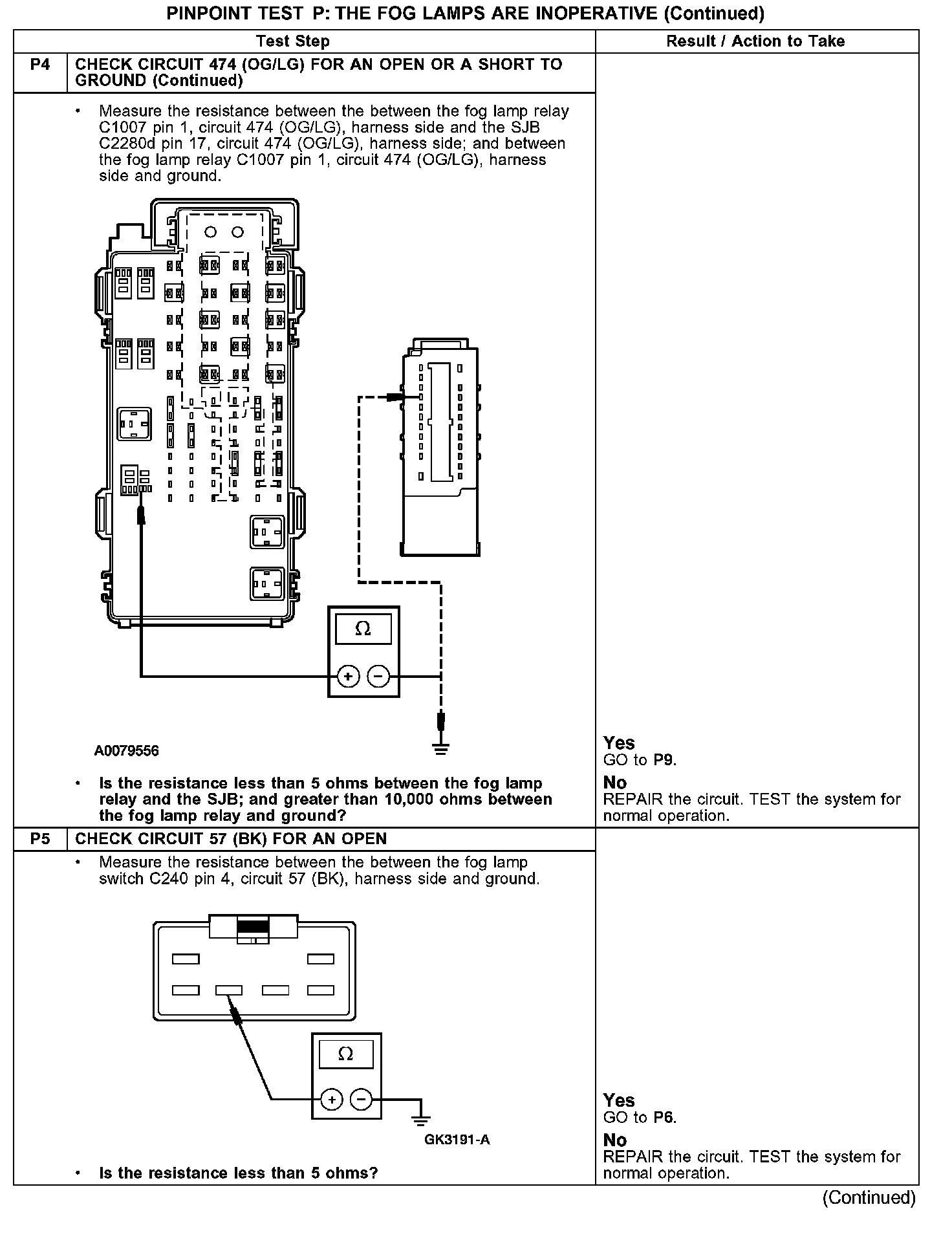

P4-P5:

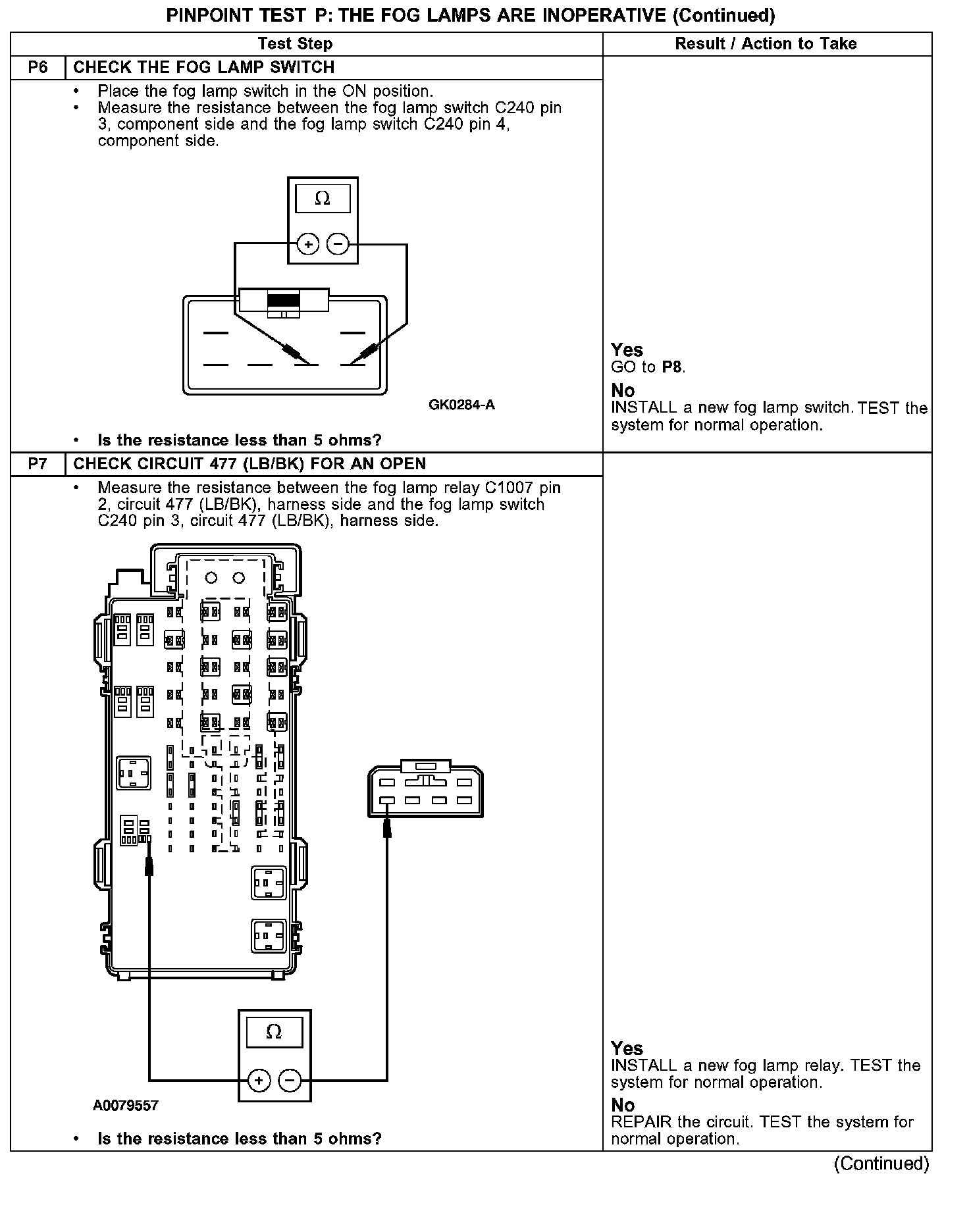

P6-P7:

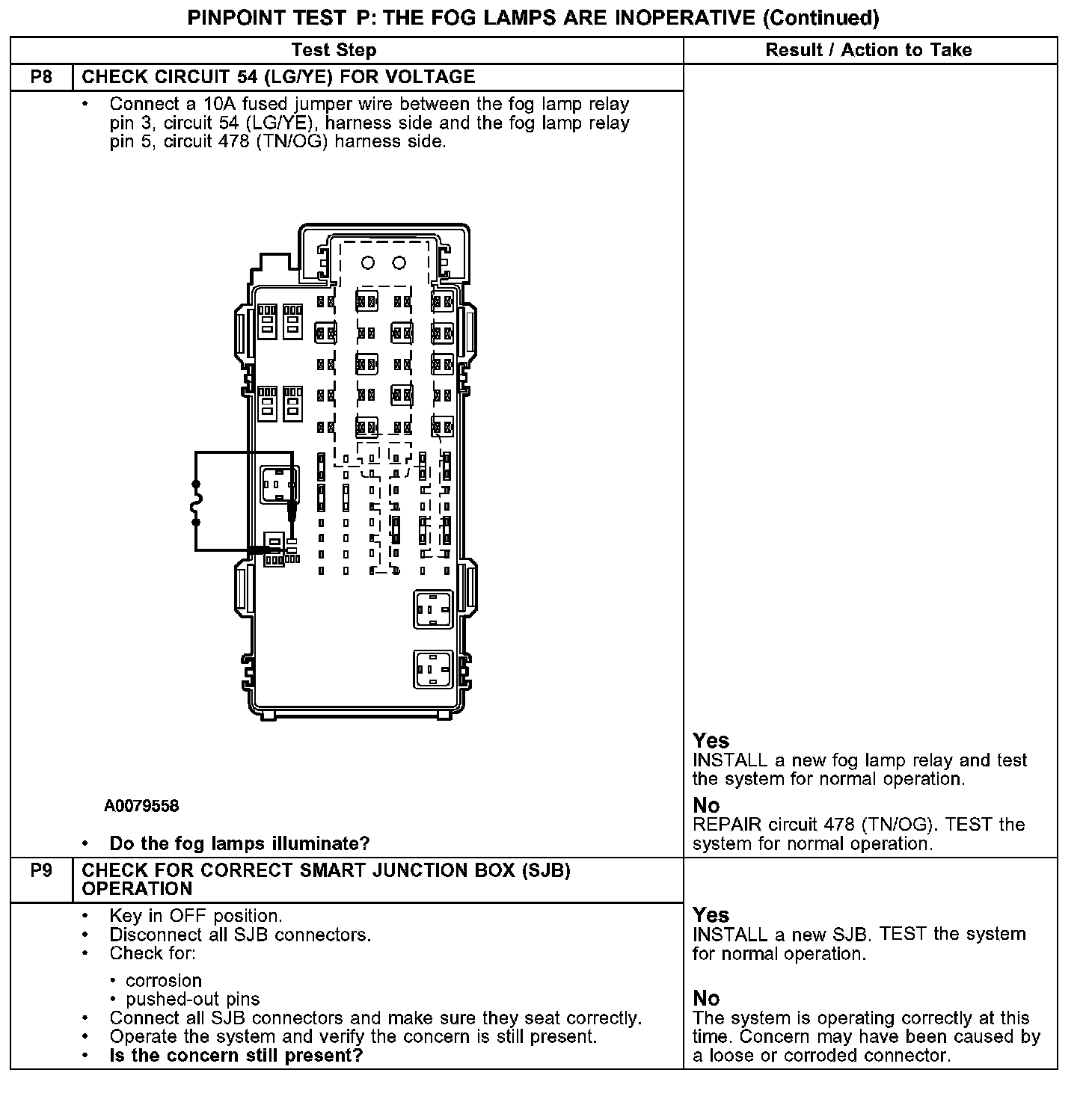

P8-P9:
