Test E: The Flash-to-Pass Feature Is Inoperative
Test E: The Flash-to-Pass Feature Is Inoperative
PINPOINT TEST E: THE FLASH-TO-PASS FEATURE IS INOPERATIVE

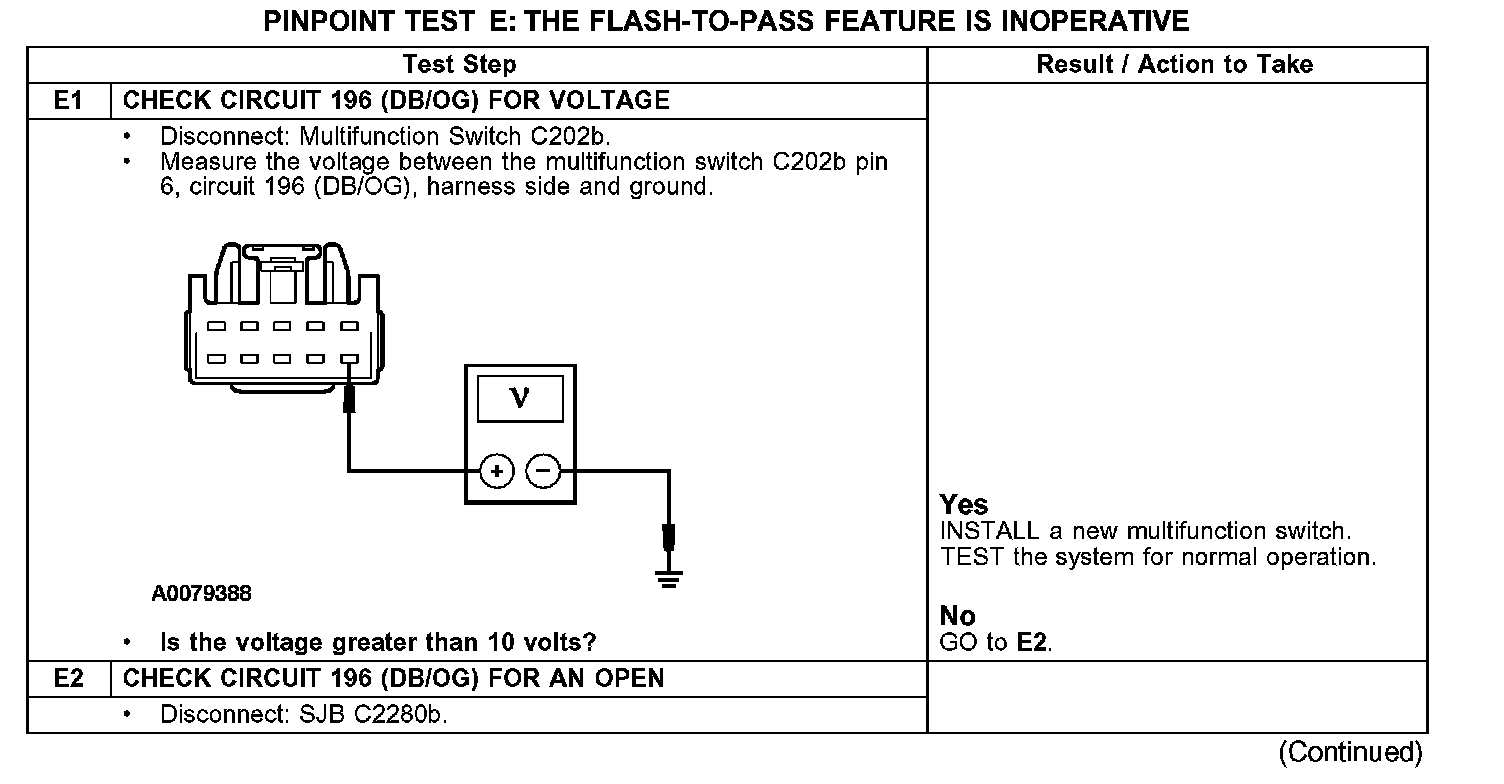

E1-E2:

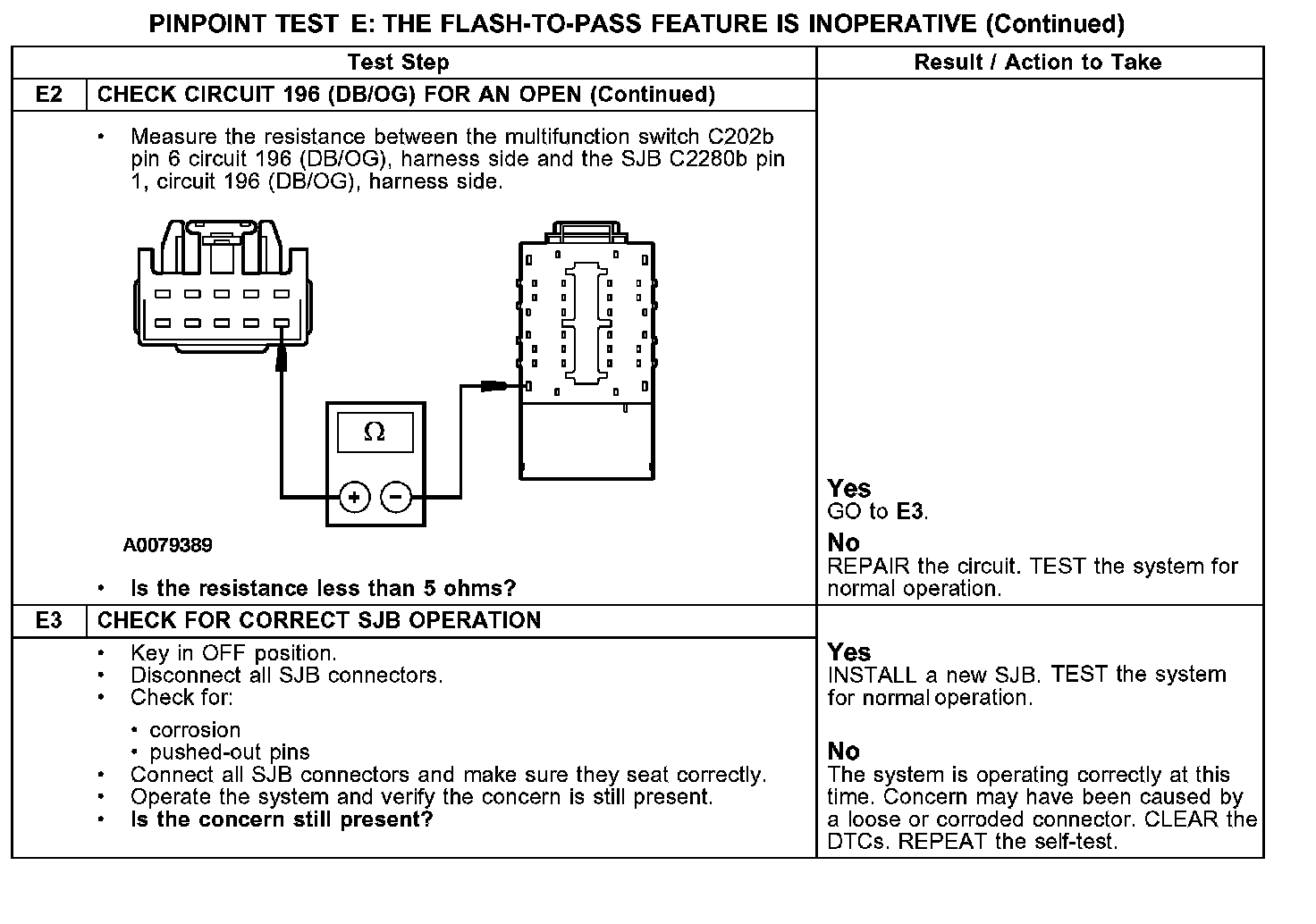

E2-E3:
