Headlamp Switch: Service and Repair

LAMP SWITCH - HEADLAMP

Removal

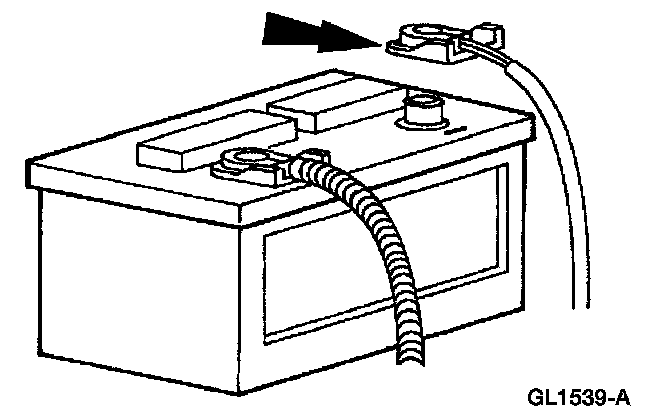

1. Disconnect the battery ground cable.

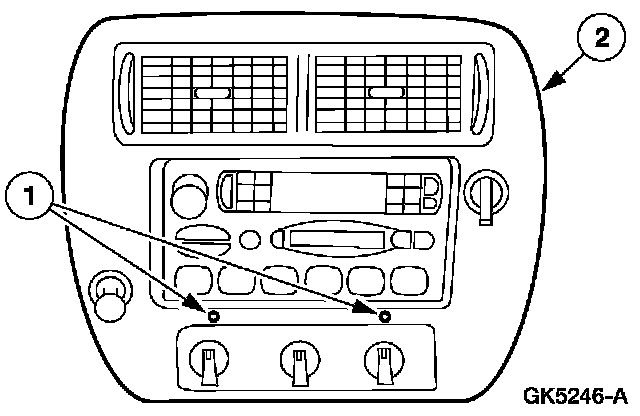

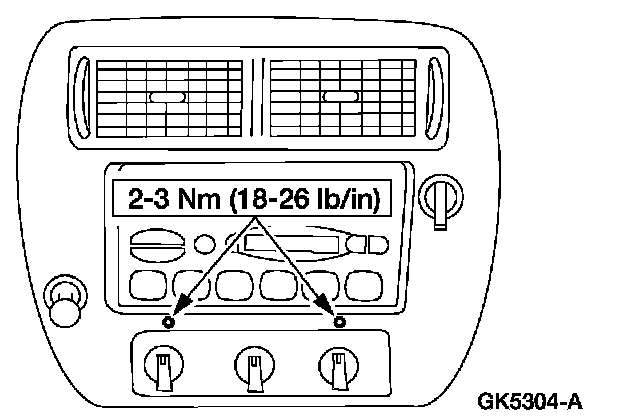

2. Pull out the radio finish panel assembly.
1 Remove the bolts.
2 Pull out the radio finish panel assembly.

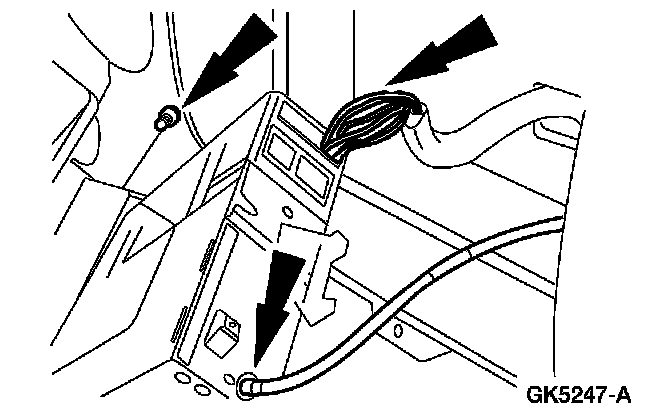

3. Disconnect and remove the radio bezel assembly.

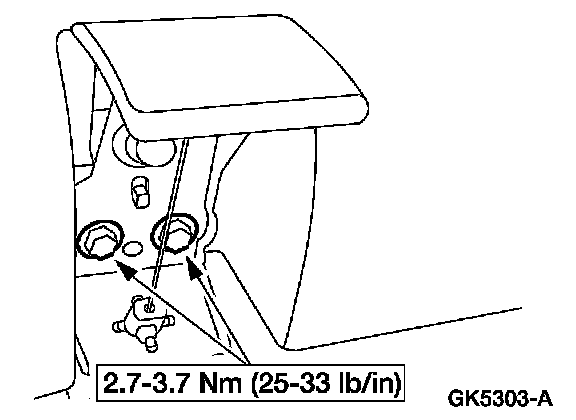

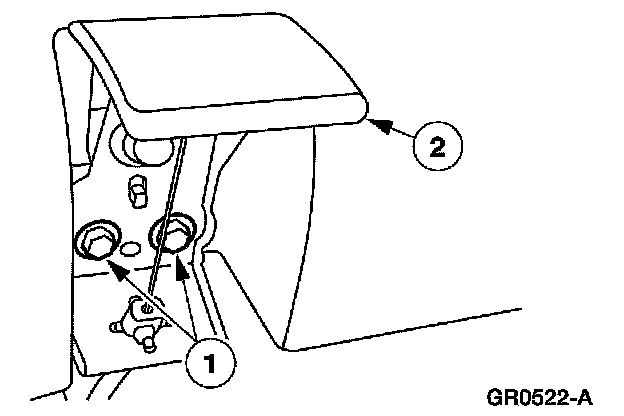

4. Remove the hood latch release handle.
1 Remove the screws.
2 Remove the hood latch release handle.

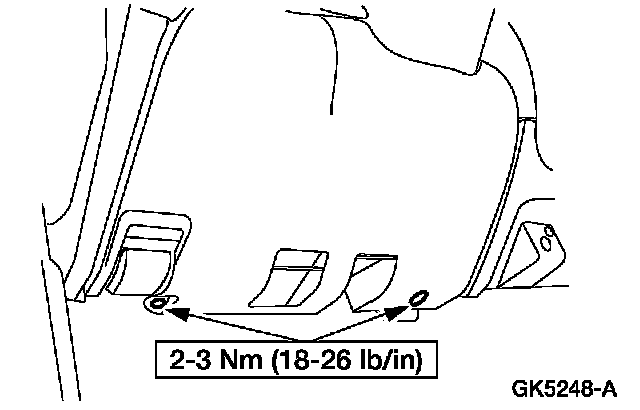

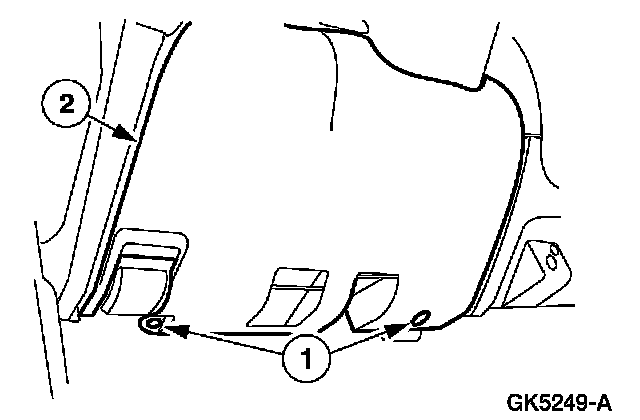

5. Remove the lower instrument panel cover.
1 Remove the screws.
2 Remove the lower instrument panel cover.

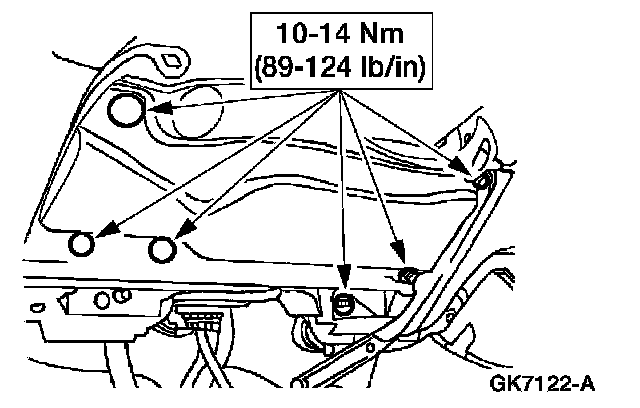

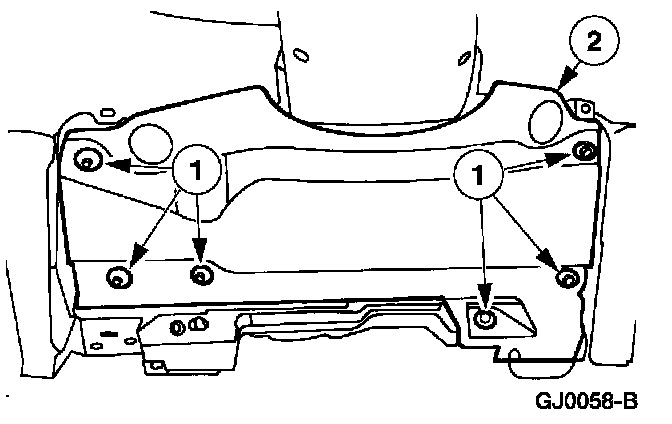

6. Remove the lower instrument panel reinforcement.
1 Remove the bolts.
2 Remove the lower instrument panel reinforcement.
7. If equipped, position the column gear shift lever out of the way.

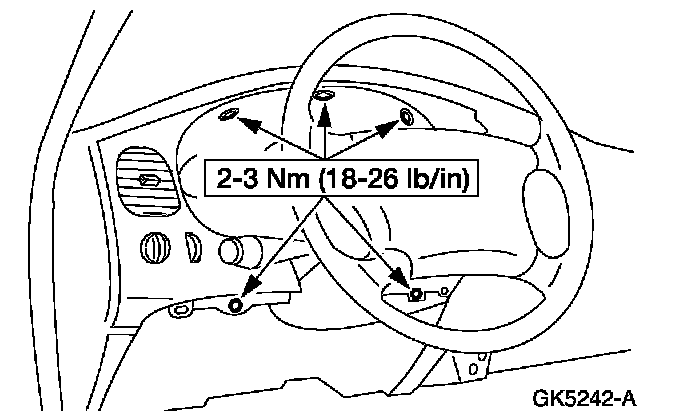

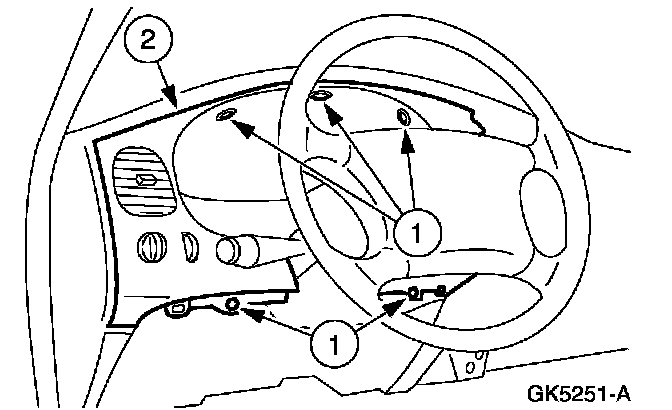

8. Pull out the cluster finish panel.
1 Remove the screws.
2 Pull out the cluster finish panel.

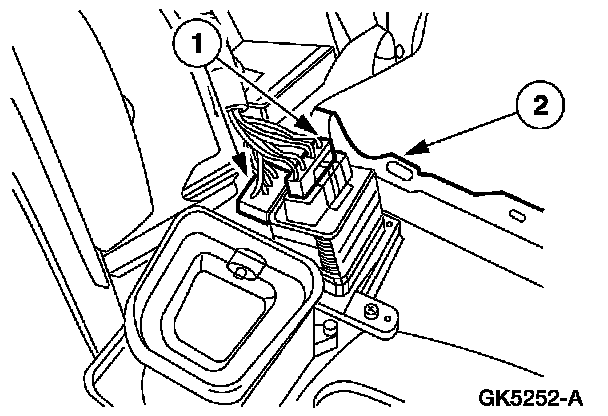

9. Remove the cluster finish panel.
1 Disconnect the connectors.
2 Remove the cluster finish panel.

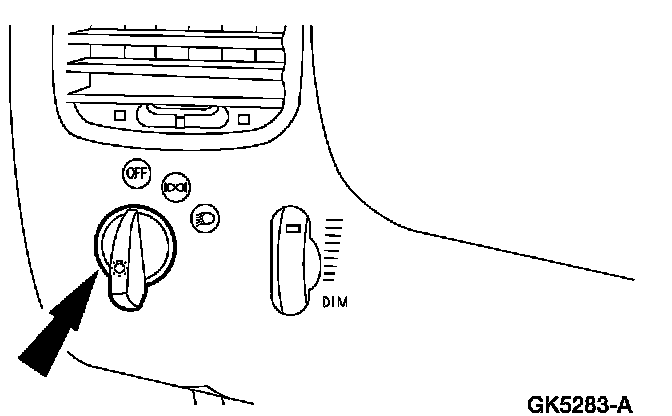

10. Pull off and remove the headlamp switch knob.

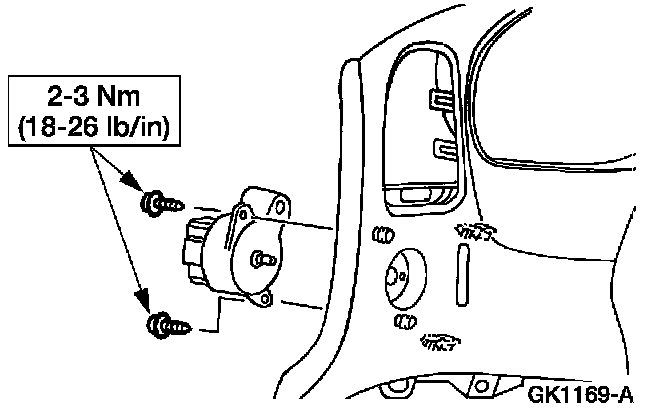

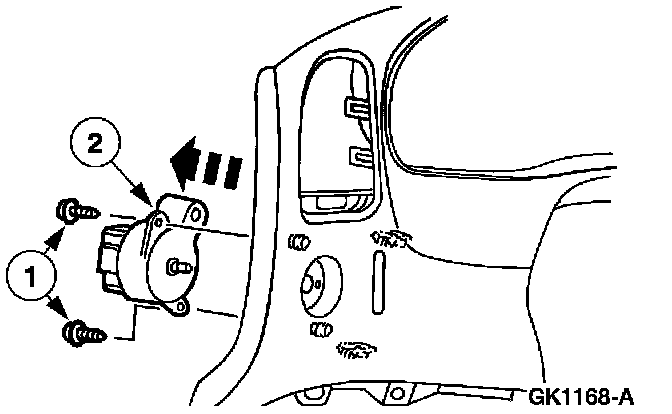

11. Remove the headlamp switch.
1 Remove the screws.
2 Remove the headlamp switch.

Installation
































1. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

To install, reverse the removal procedure.
