Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>

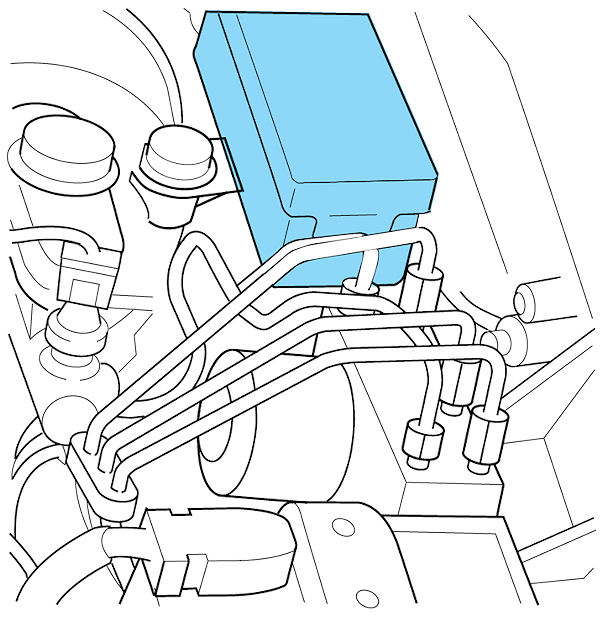

Locations
>>

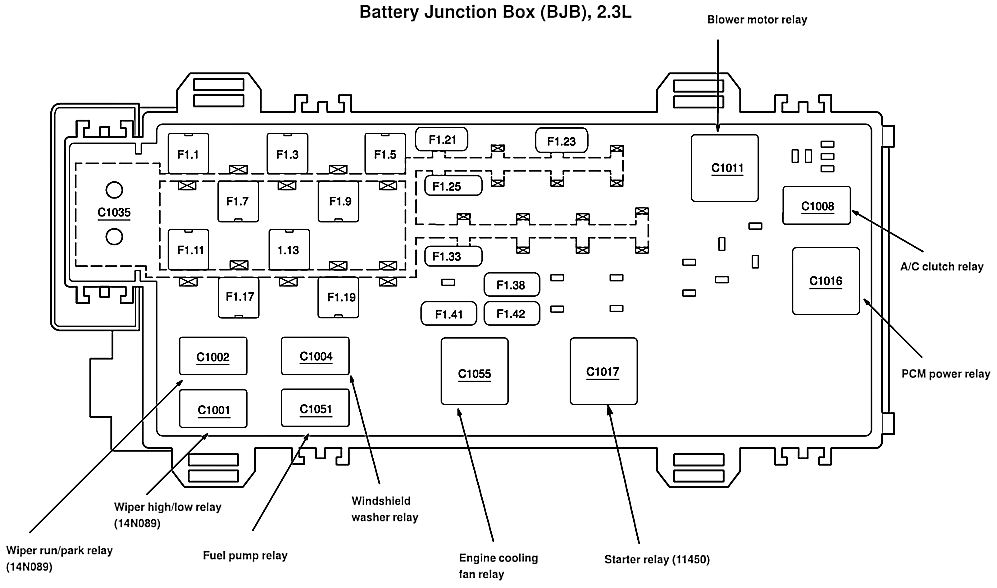

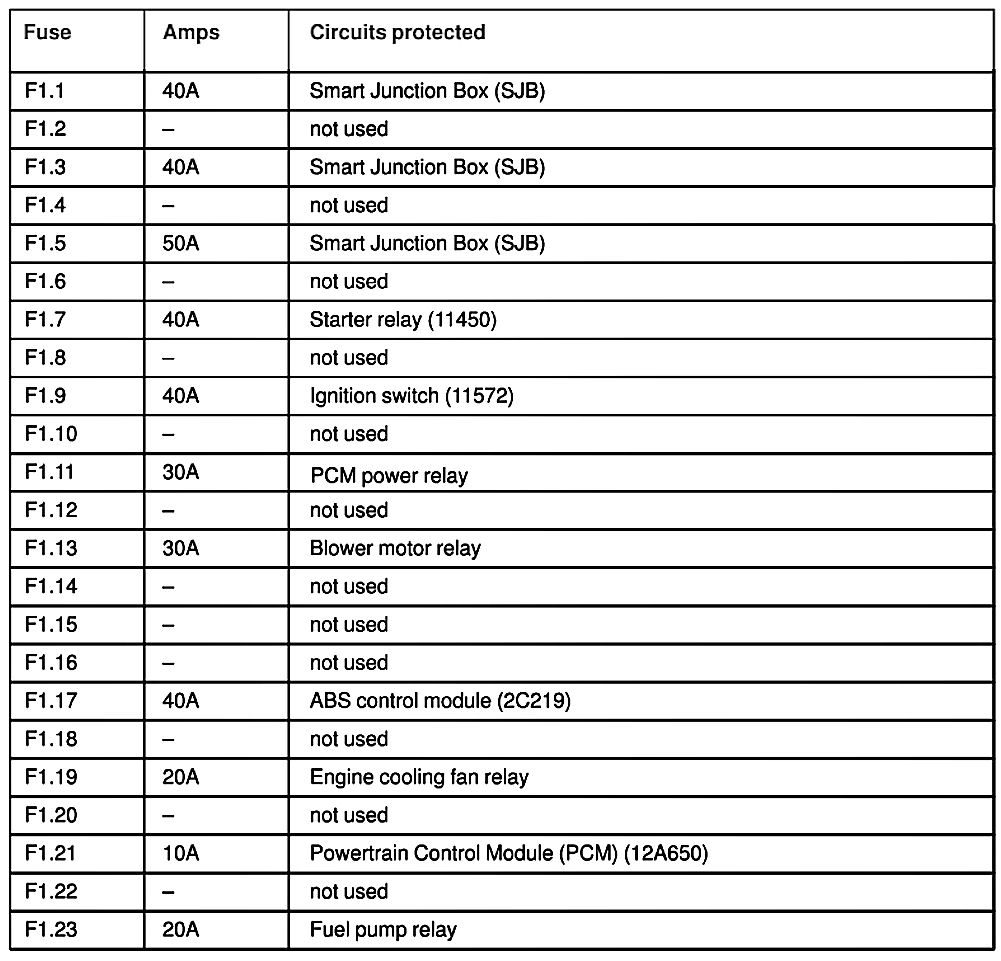

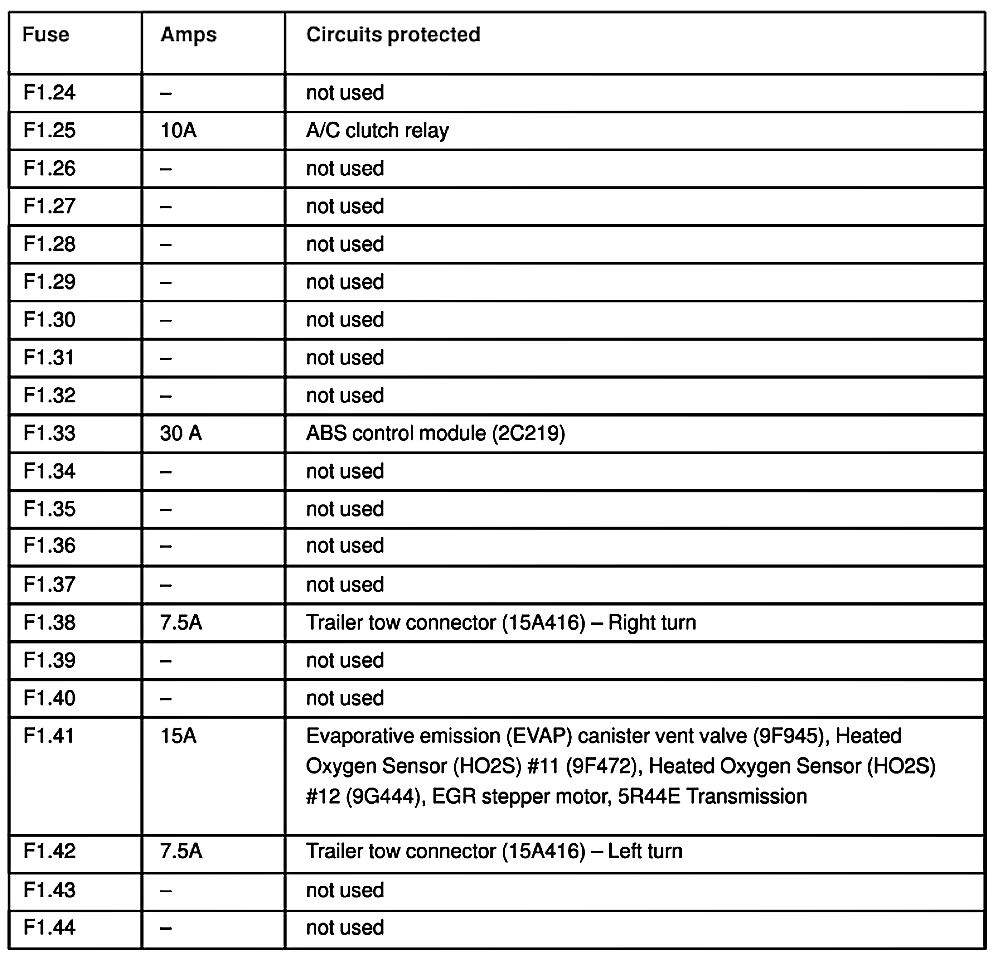

Battery Junction Box
Battery Junction Box
