Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>

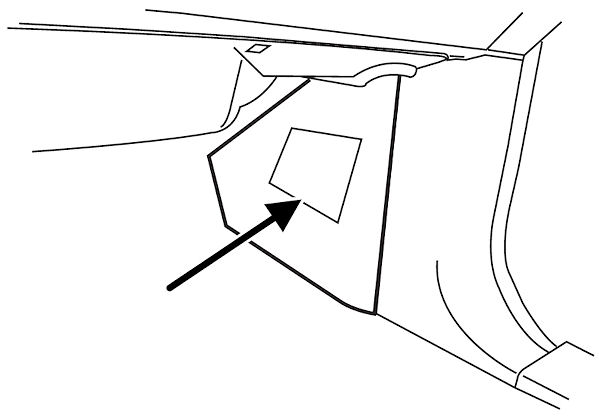

Locations
>>

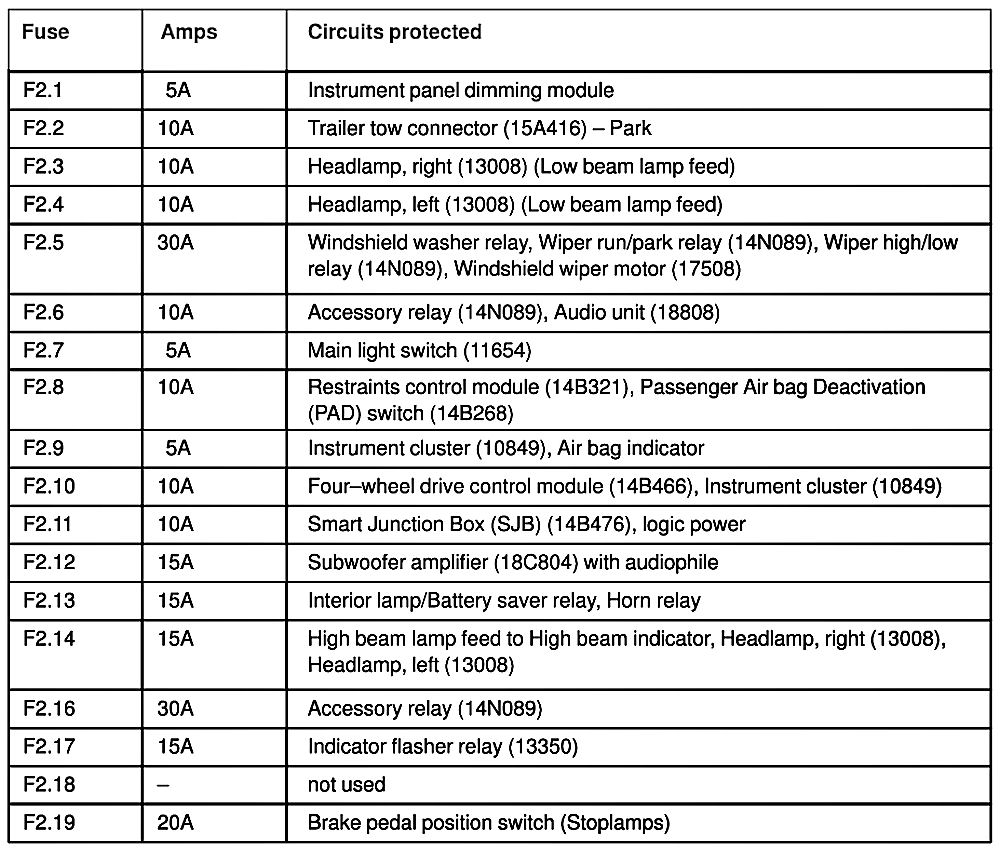

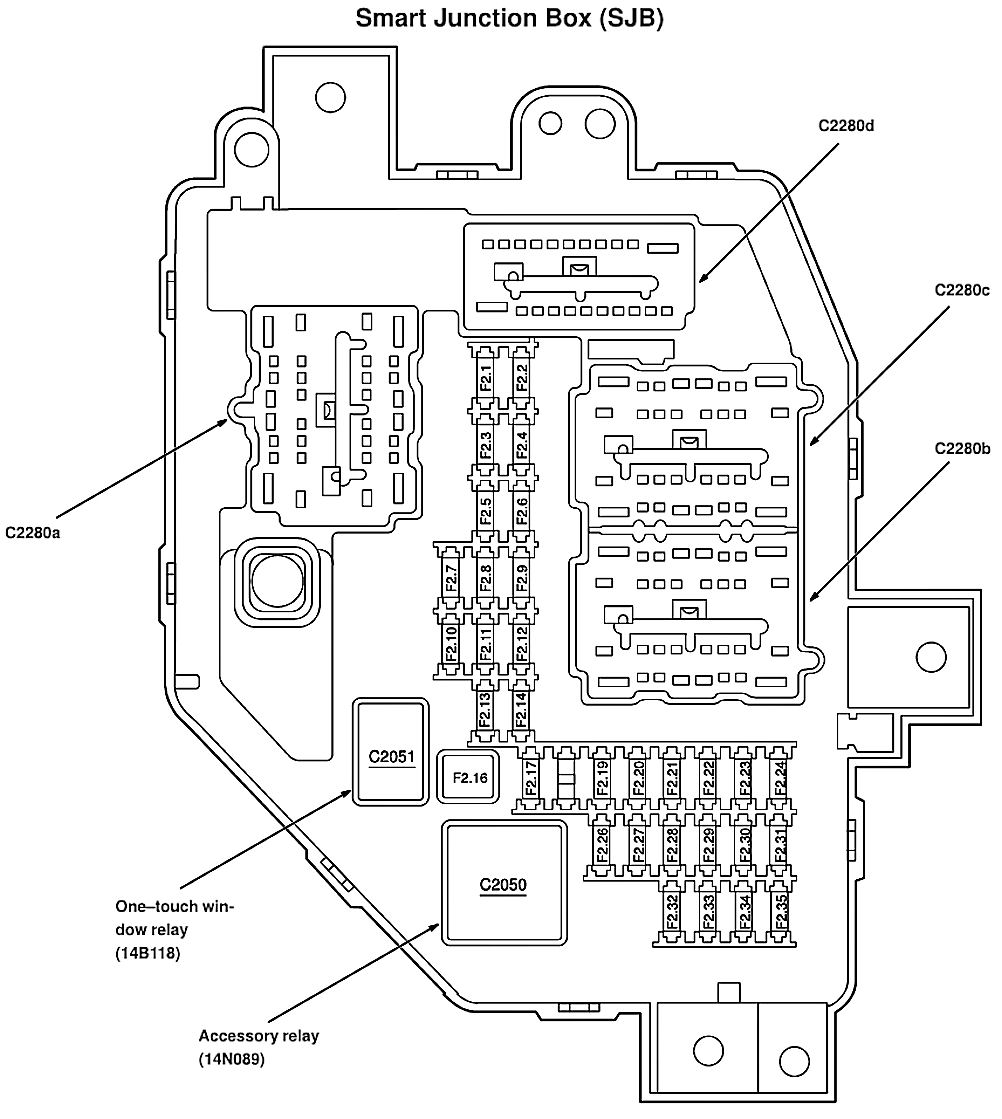

Smart Junction Box
Smart Junction Box
