Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

Timing Peg, Crankshaft:

Special Tool(s)

Removal
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

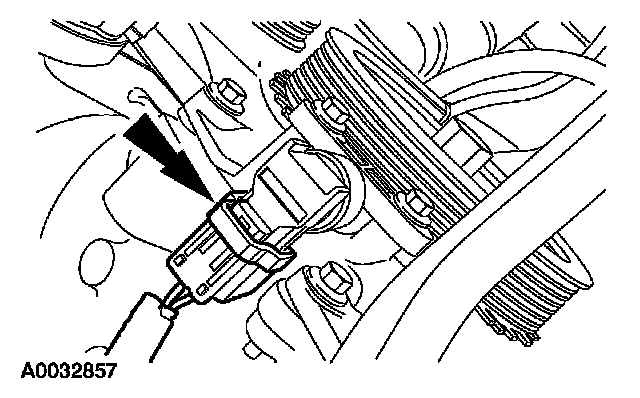

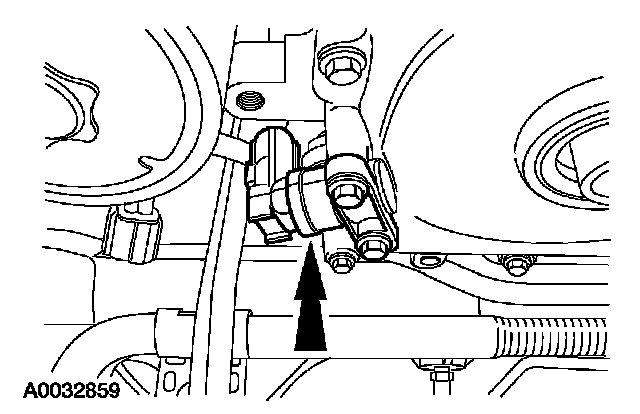

3. Disconnect the crankshaft position (CKP) sensor electrical connector.

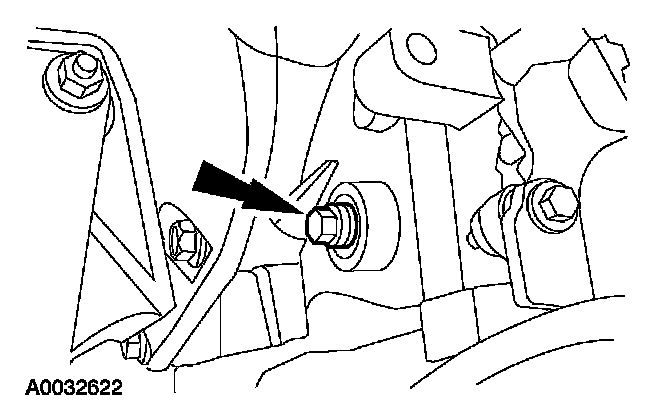

4. Remove the plug.

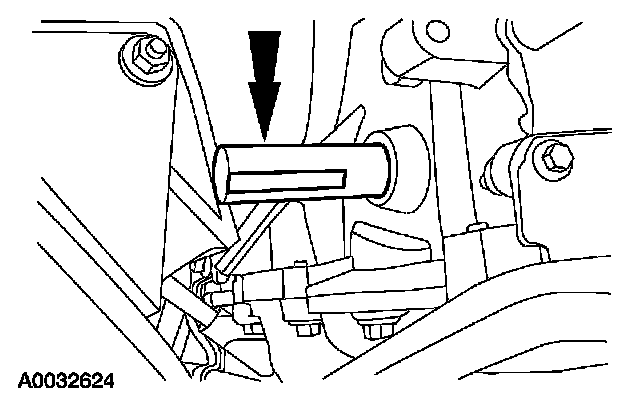

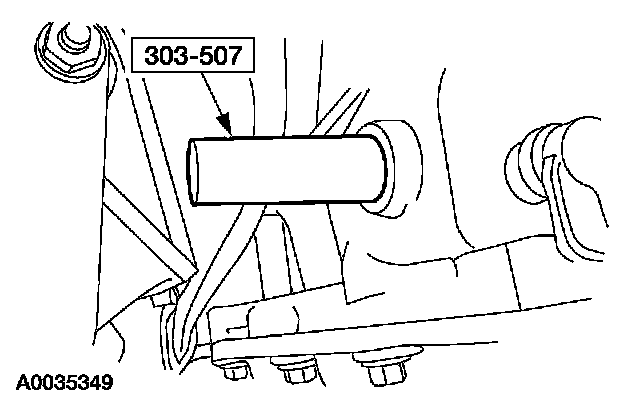

5. Install the special tool and turn the crankshaft pulley bolt to position the number one cylinder at top dead center.







6. Remove the CKP.

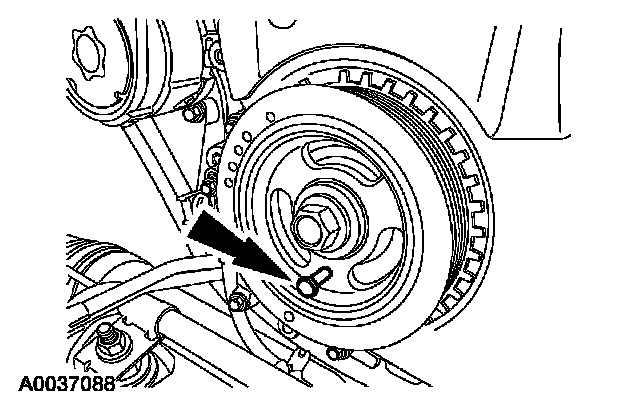

7. Install an M6 bolt.

Installation







1. Install the CKP, but do not tighten the bolts at this time.







2. NOTE: The CKP sensor alignment tool is supplied with the new sensor and is not available separately.

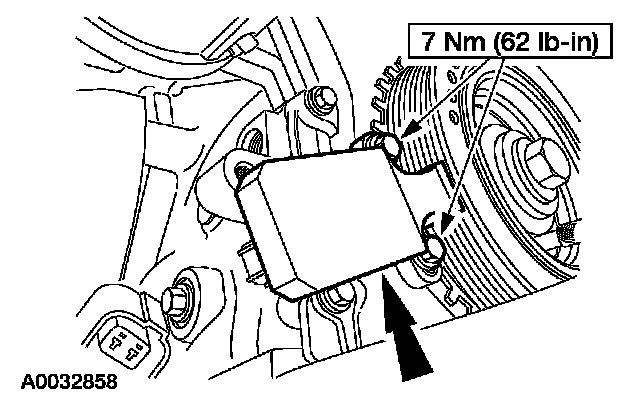

Adjust the CKP with the crankshaft position sensor alignment jig and tighten the bolts.

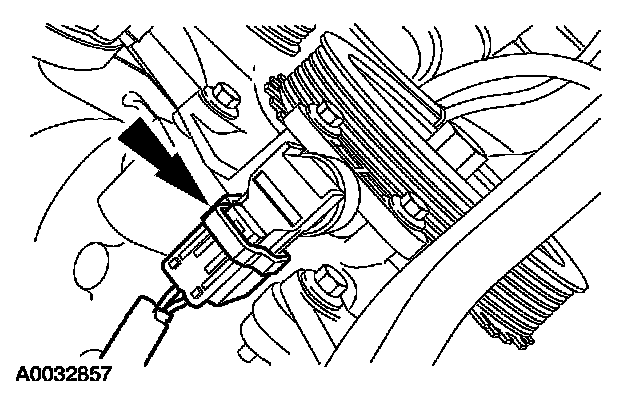

3. Connect the CKP electrical connector.

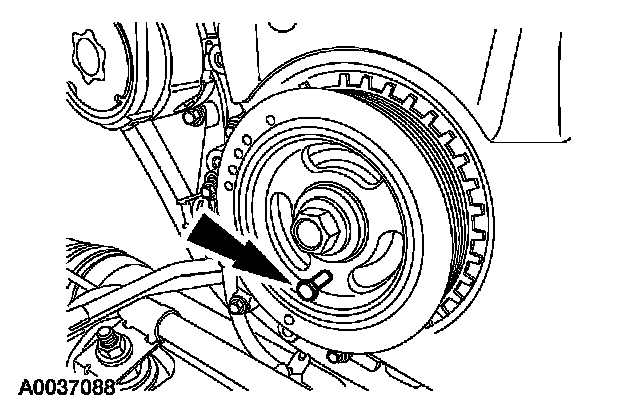

4. Remove the M6 bolt.







5. Remove the crankshaft timing peg.

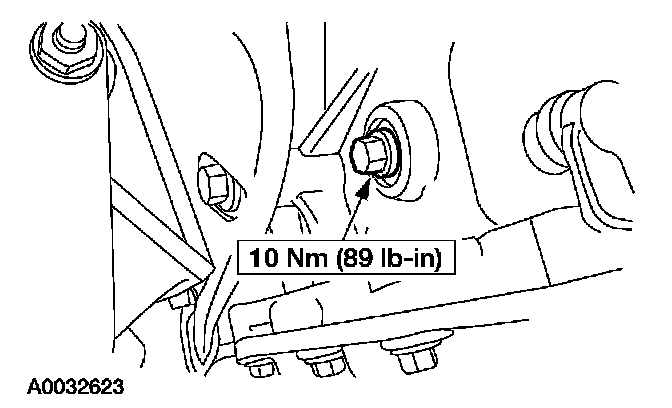

6. Install the plug.
