Air Cleaner Housing: Service and Repair

AIR CLEANER

REMOVAL







1. Loosen the clamp and disconnect the tube from the air cleaner outlet.

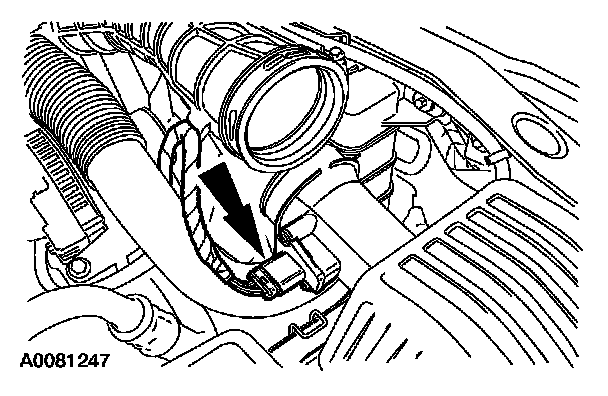

2. Disconnect the mass airflow (MAF) sensor electrical connector.







3. NOTE: Pry the engine air cleaner (ACL) from the base.

Remove the ACL assembly.


INSTALLATION

1. NOTE: Clean the engine air cleaner with a dry, clean cloth.

To install, reverse the removal procedure.
