Home >> Ford >> 2005 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Wiper and Washer Systems >> Wiper Relay >> Diagrams >> Connector Views >> Wiper High/Low Relay

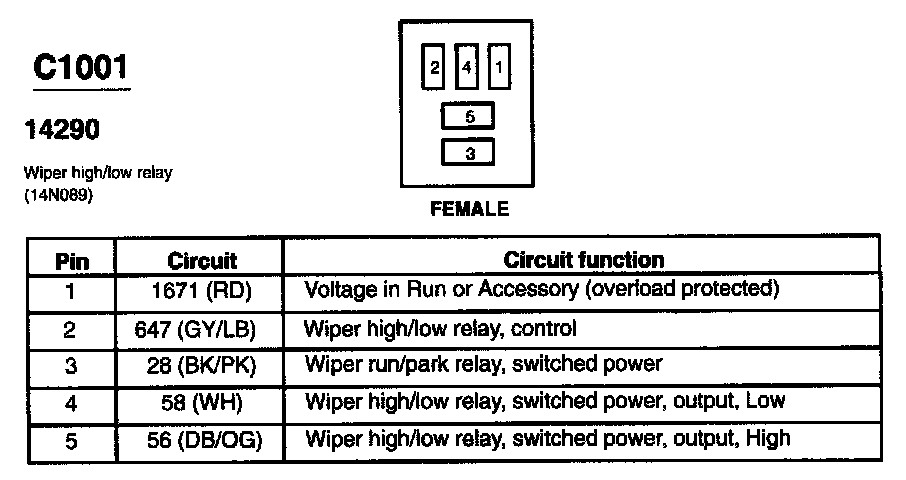

Wiper High/Low Relay
