Flex Plate

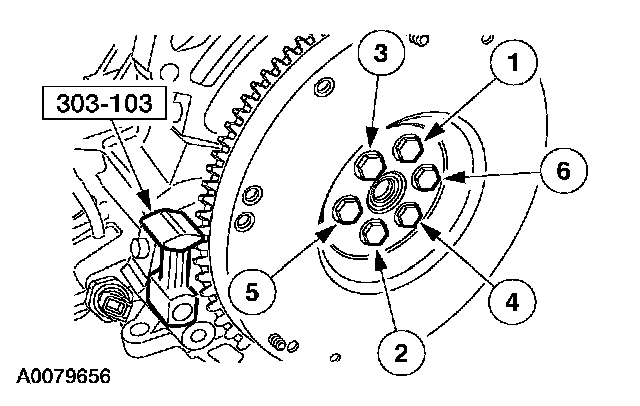

TORQUE SPECIFICATIONS





Flexplate Bolts
Stage 1 50 Nm (37 ft. lbs.)
Stage 2 80 Nm (59 ft. lbs.)
Stage 3 112 Nm (83 ft. lbs.)
