Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test F: The Charging System Warning Indicator Flickers or Is Intermittent
Test F: The Charging System Warning Indicator Flickers or Is Intermittent
PINPOINT TEST F: THE
CHARGING SYSTEM
WARNING INDICATOR FLICKERS OR IS INTERMITTENT

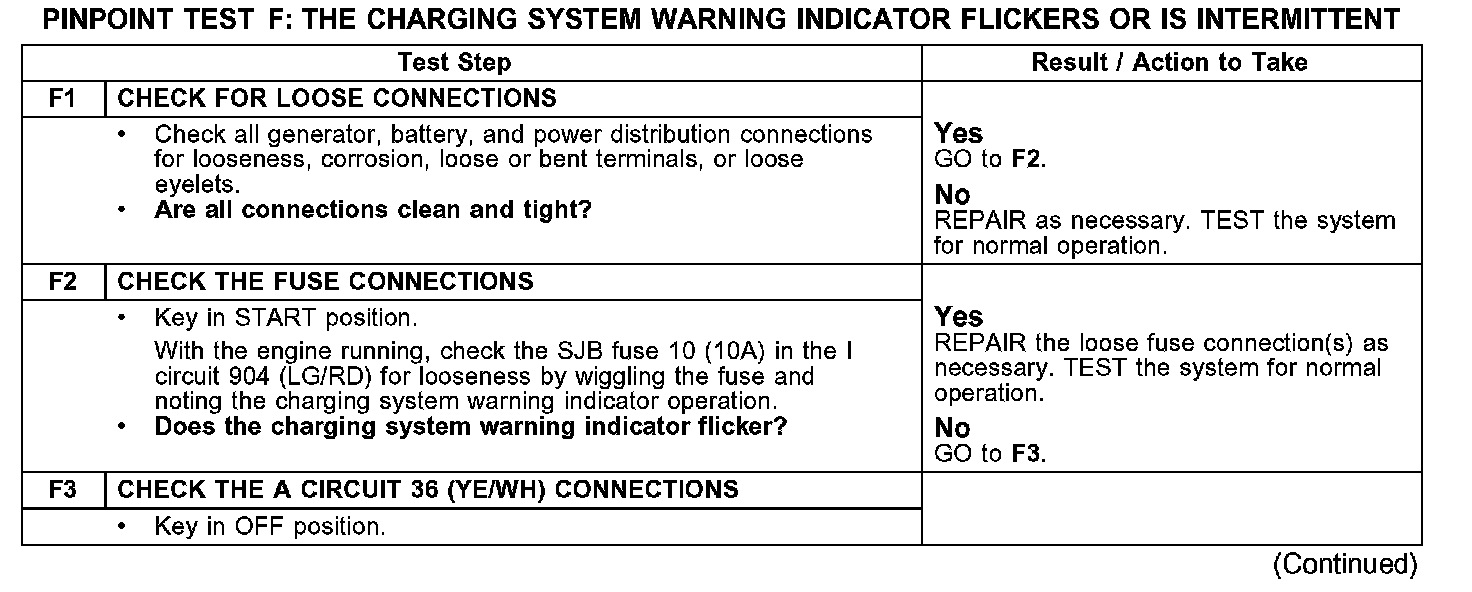

F1-F3:
F3-F6:

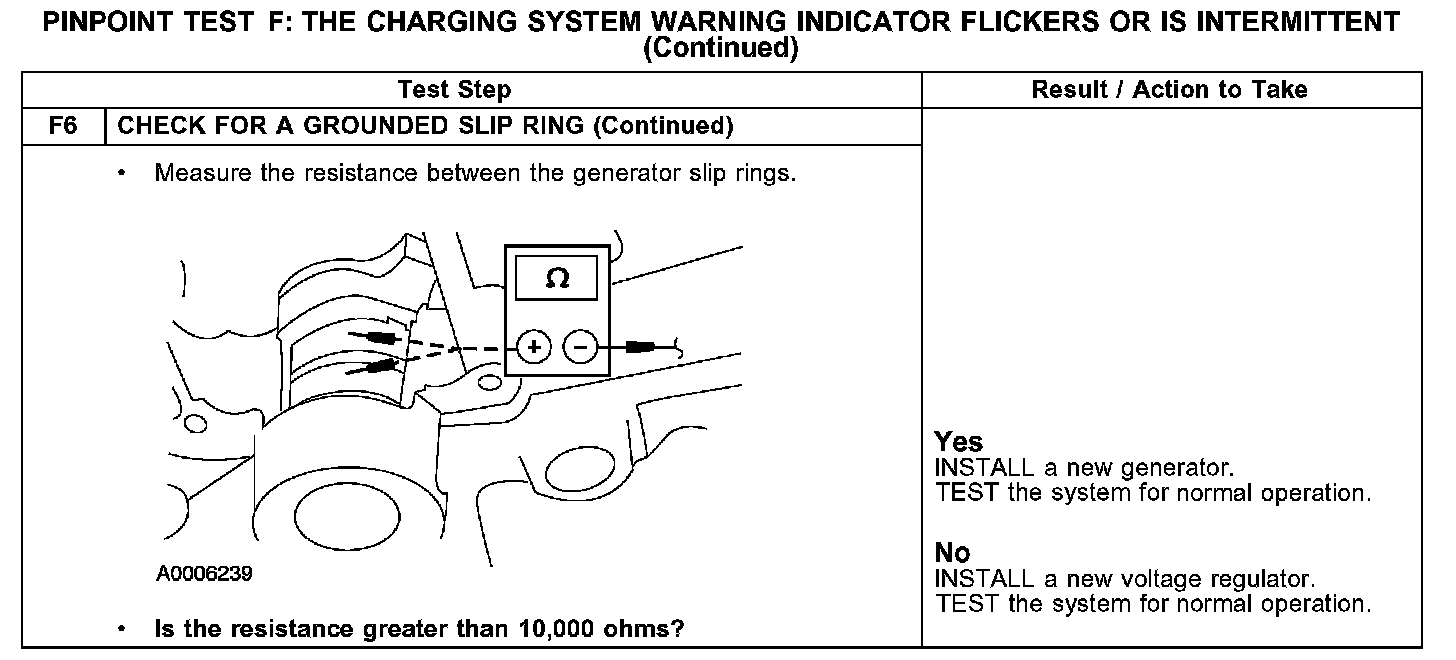

F6 Continued:
