Test A: The Engine Does Not Crank

PINPOINT TEST A: THE ENGINE DOES NOT CRANK

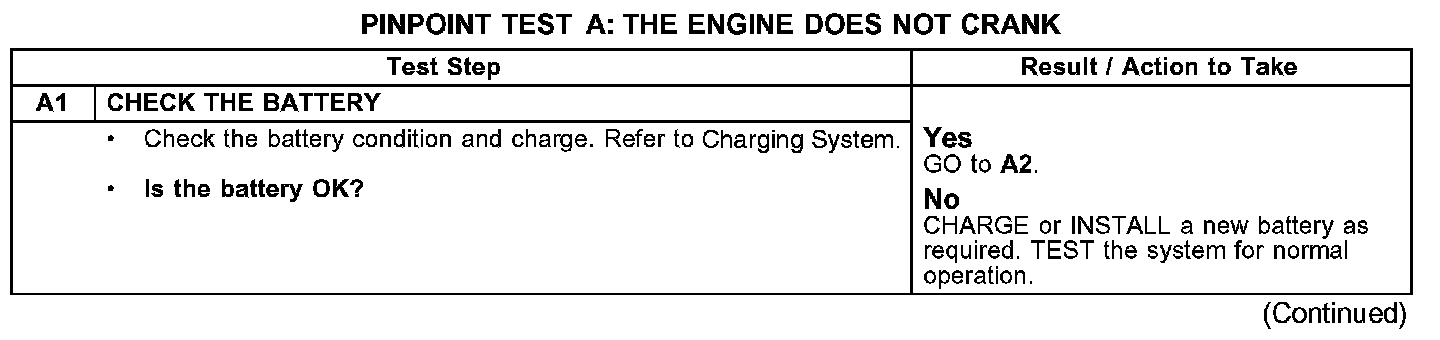

A1:

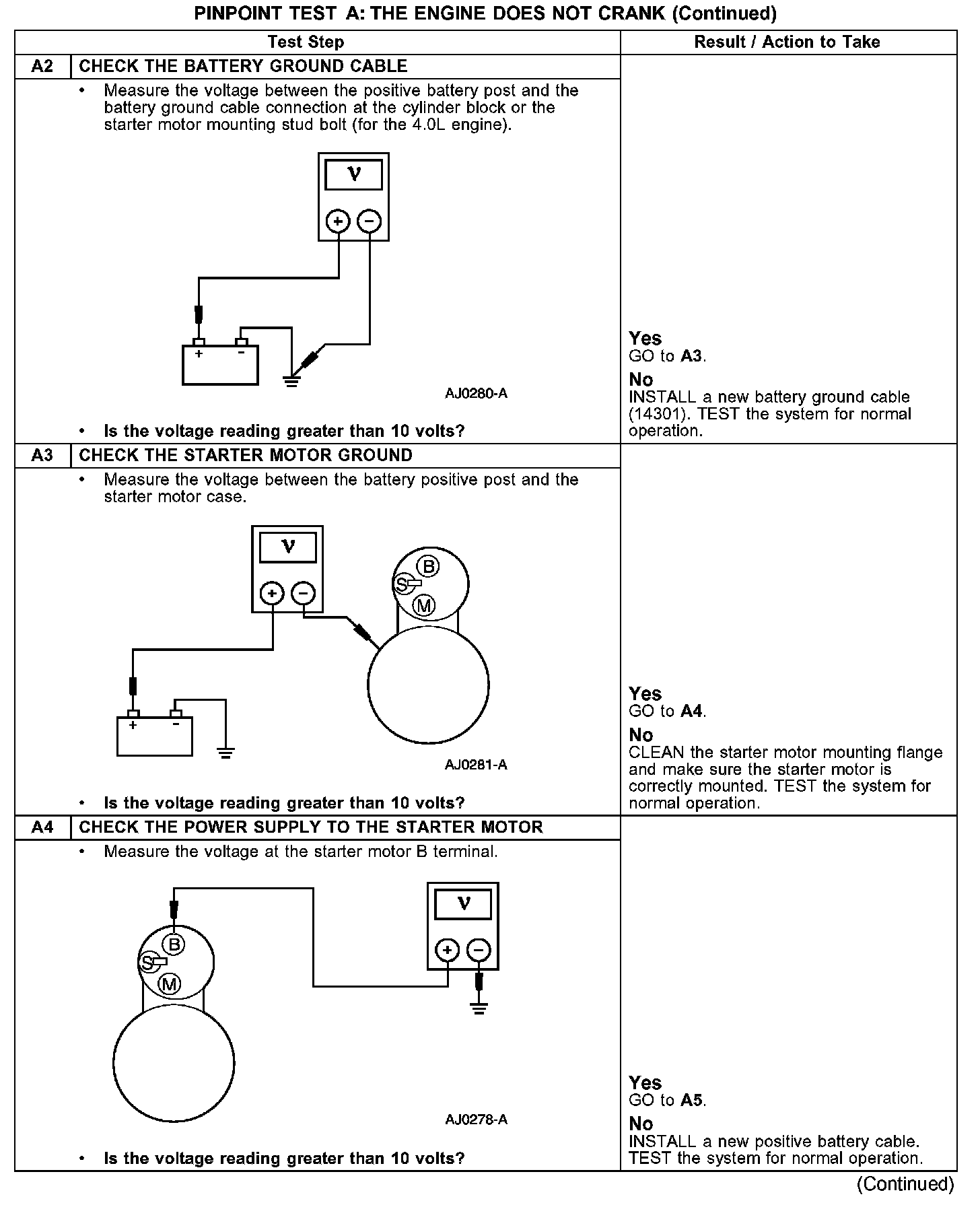

A2-A4:






A5-A7:

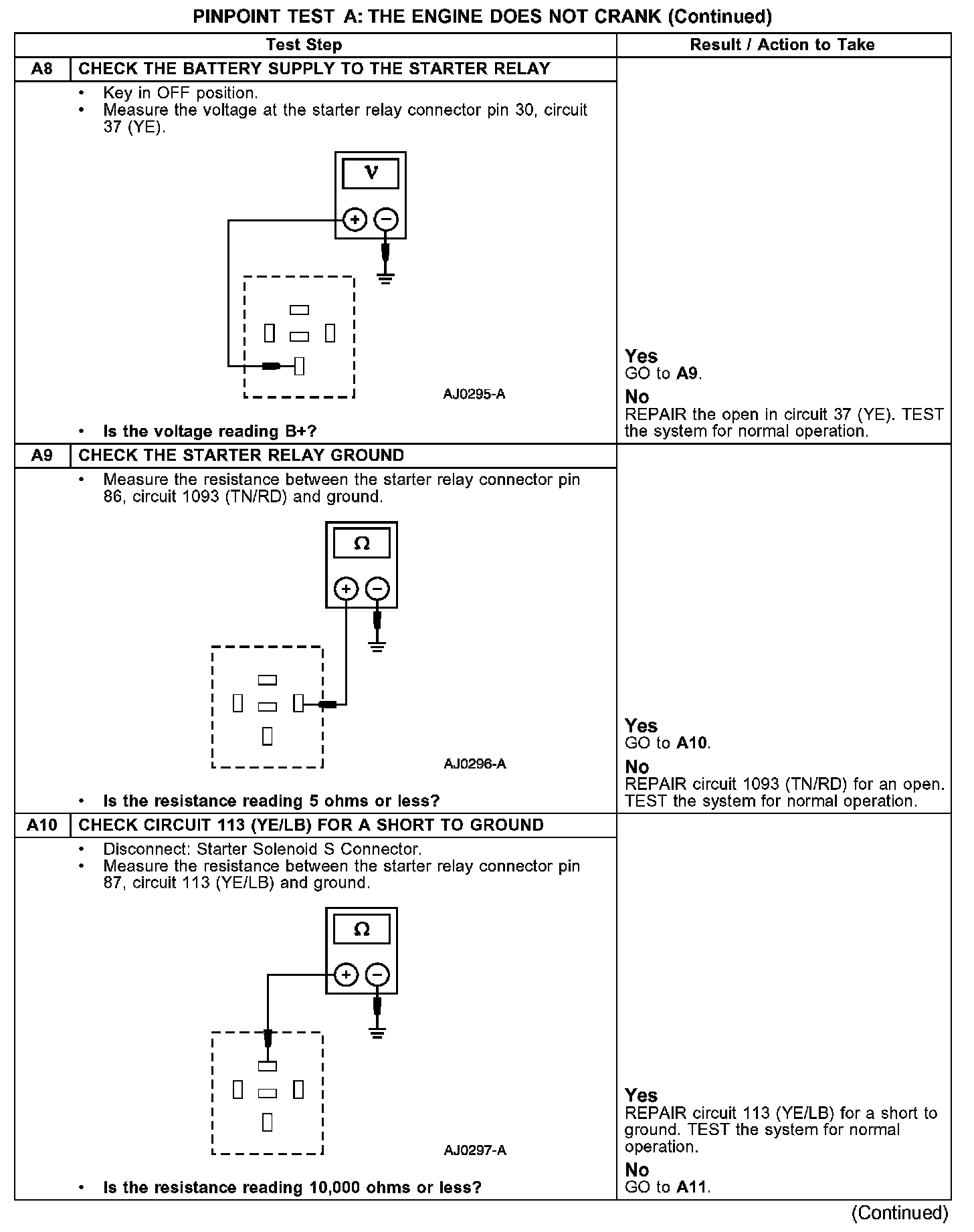

A8-A10:

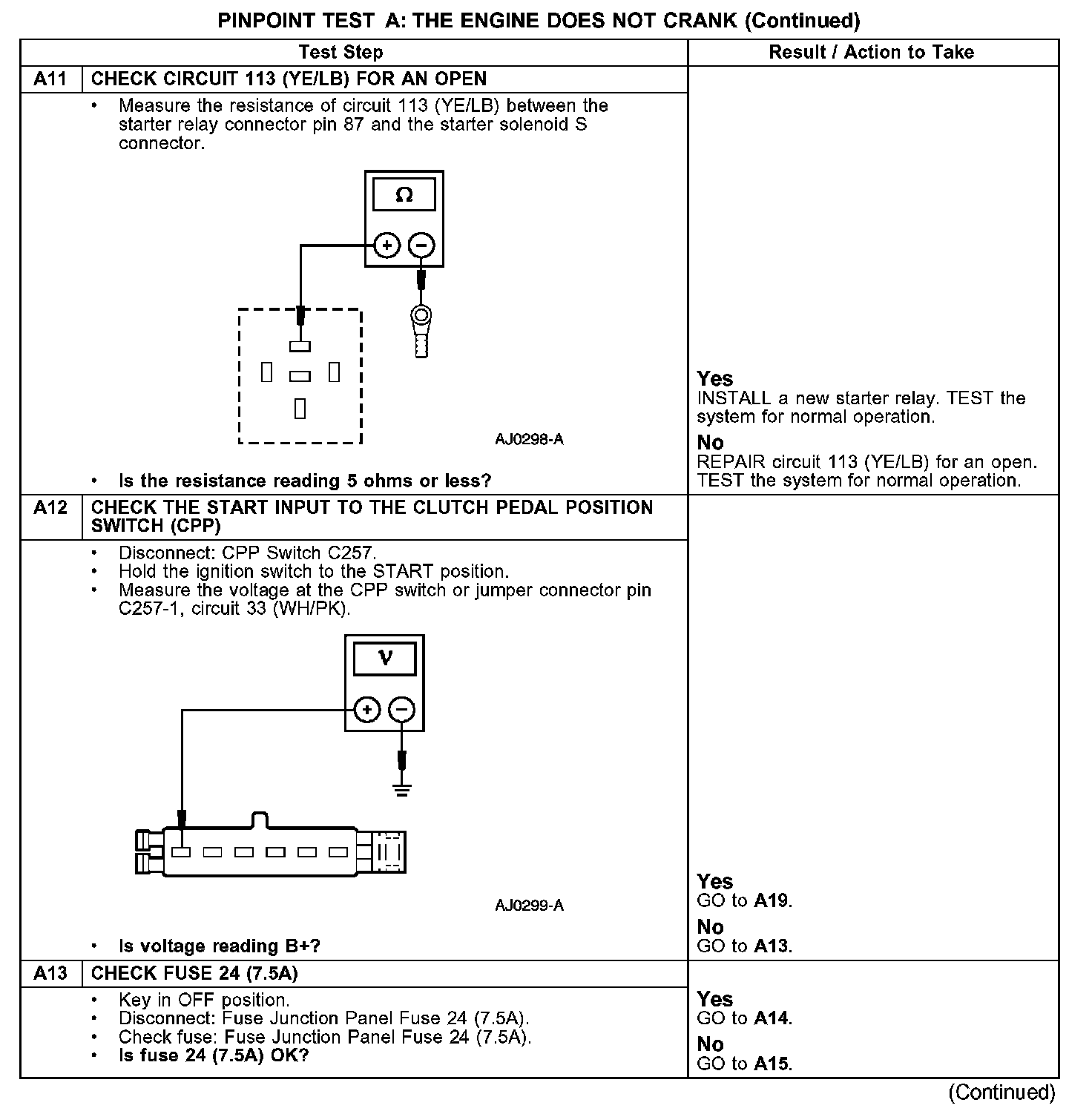

A11-A13:

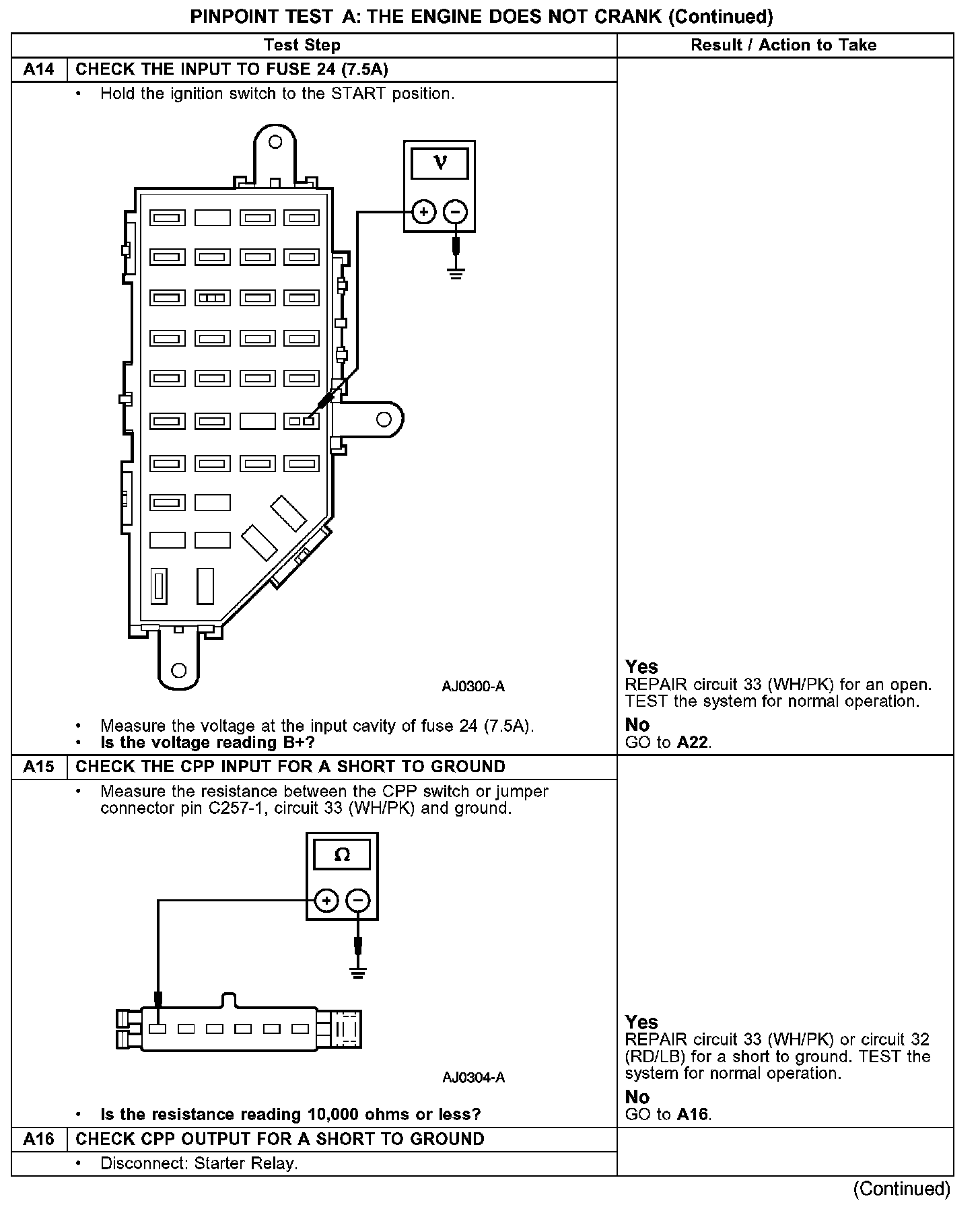

A14-A16:

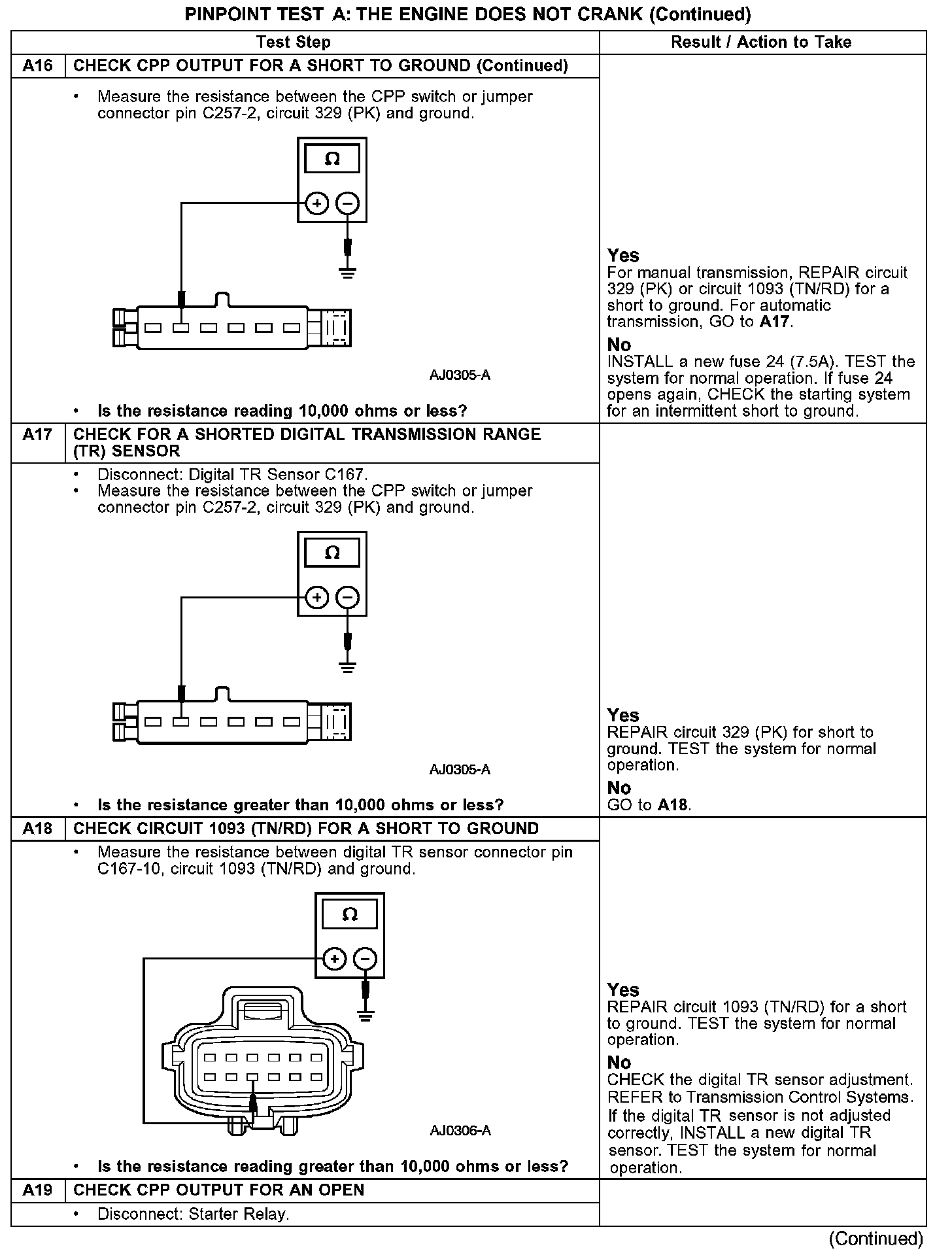

A16-A19:

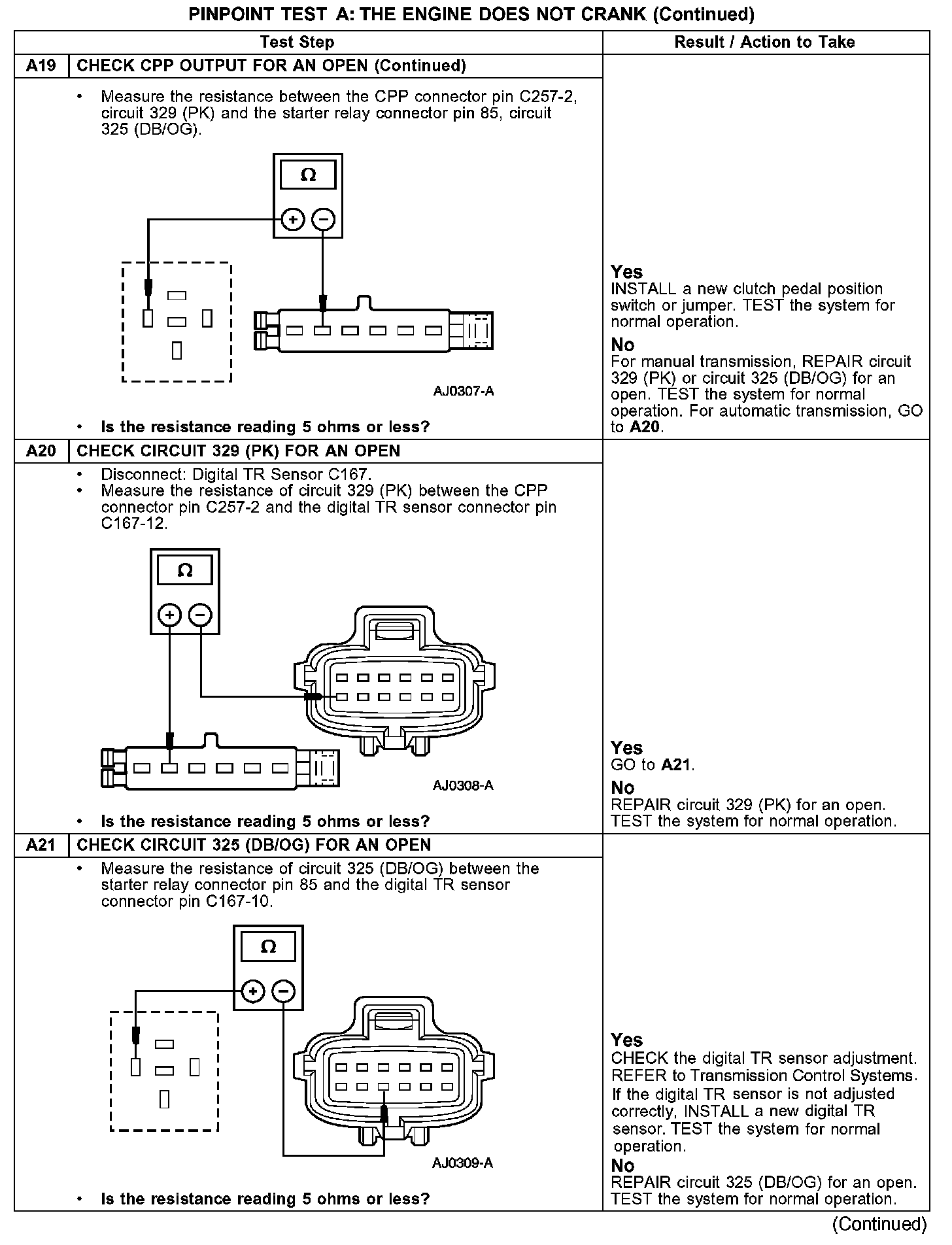

A19-A21:

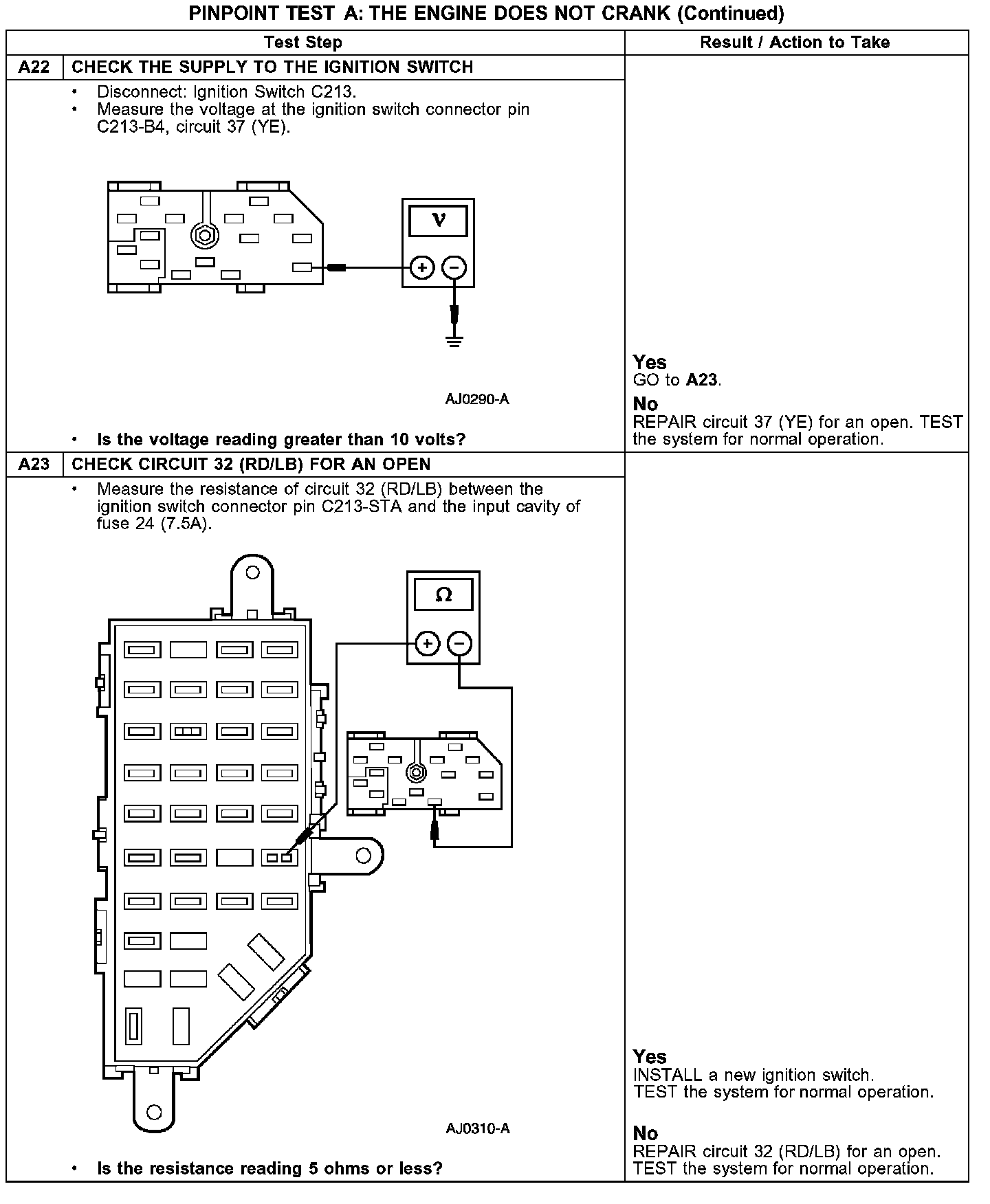

A22-A23:
