Heat Shield

Heat Shield

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

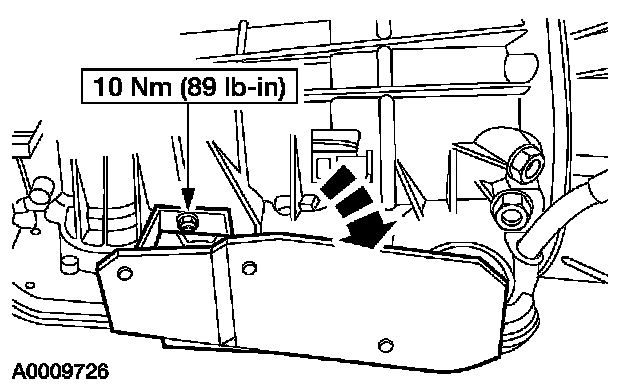

2. If equipped, remove the transmission servo heat shield.

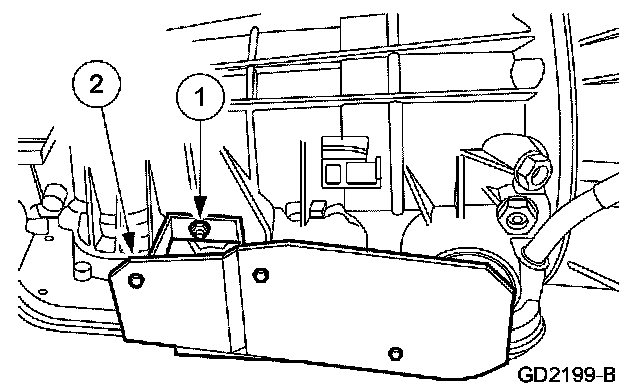

1. Remove the transmission servo heat shield nut.
2. Remove the transmission servo heat shield.





3. To install, reverse the removal procedure.
