Initial Inspection - External Controls

Inspection and Verification
1. Verify the customer concern by operating the transmission external control.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the following chart:

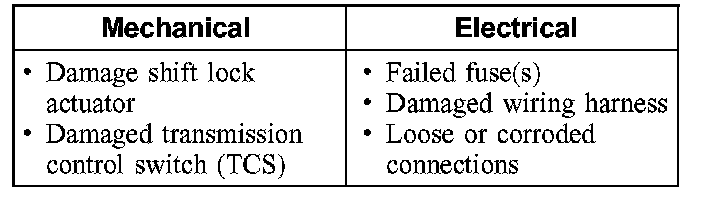

Visual Inspection Chart

3. If the concern is not visually evident, determine the symptom. Diagnosis By Symptom - External Controls
