Test A: Shift Interlock System Does Not Release/Lock Correctly

PINPOINT TEST A: SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

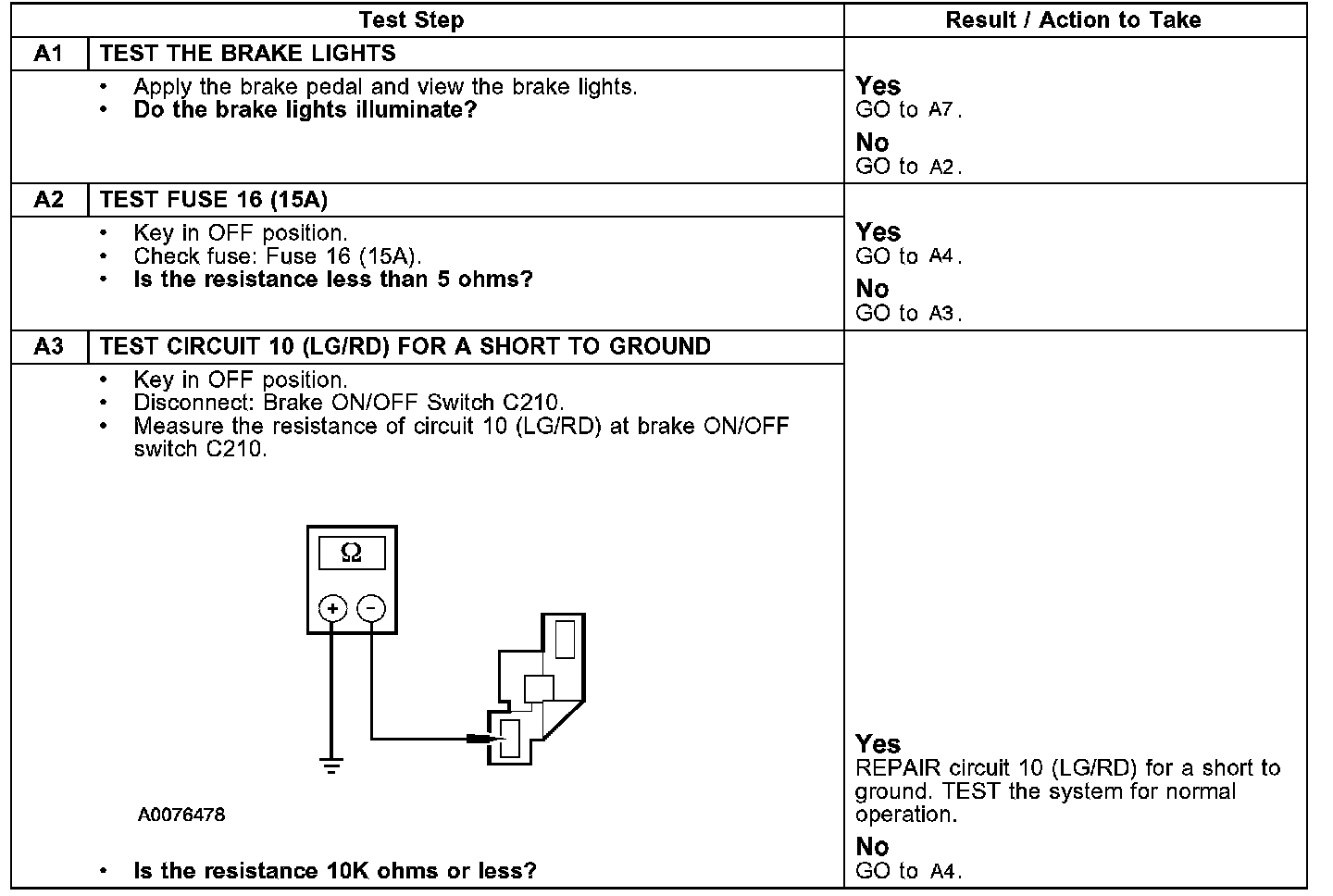

Steps A1 - A3:

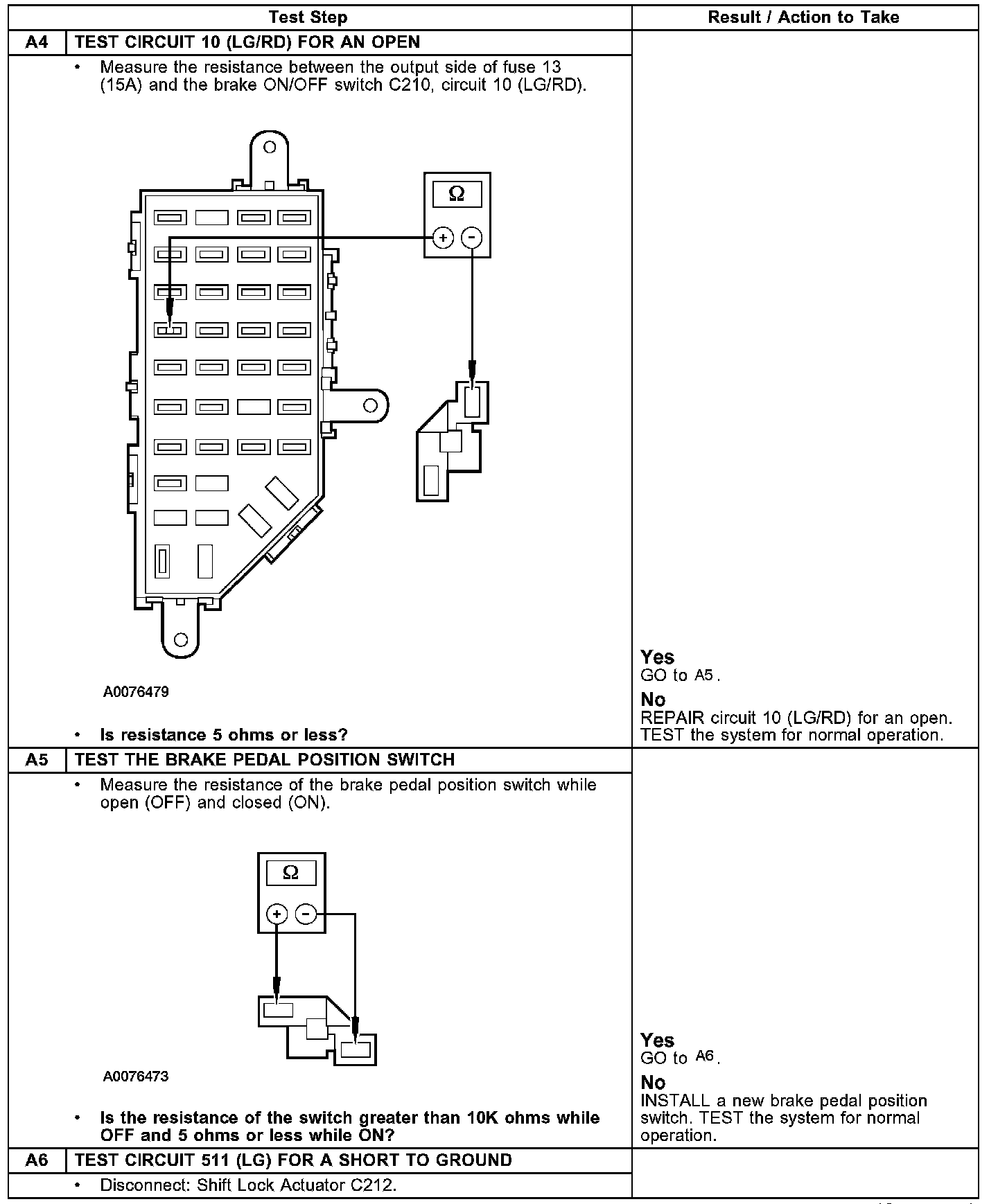

Steps A4 - A6:

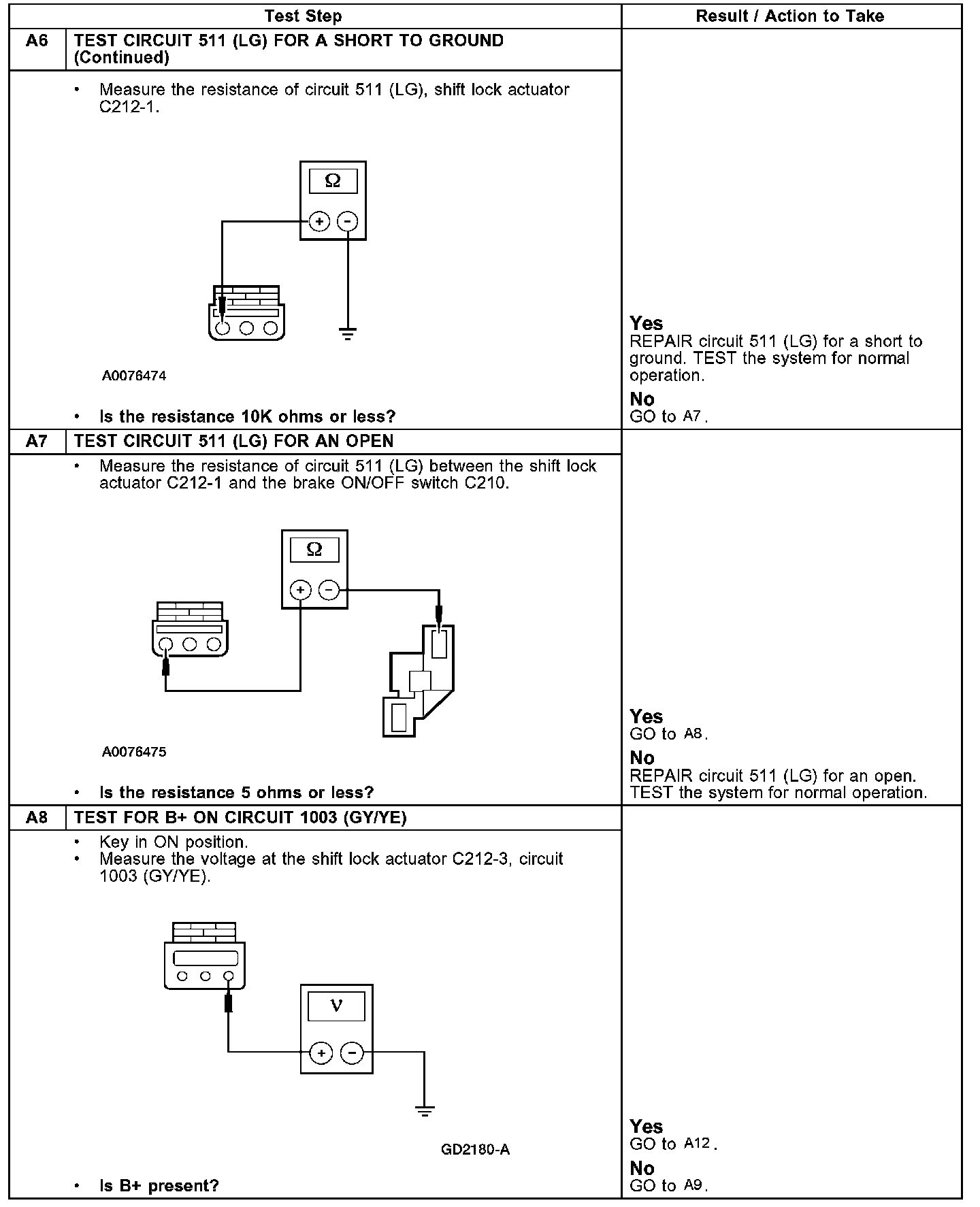

Steps A6 - A8:

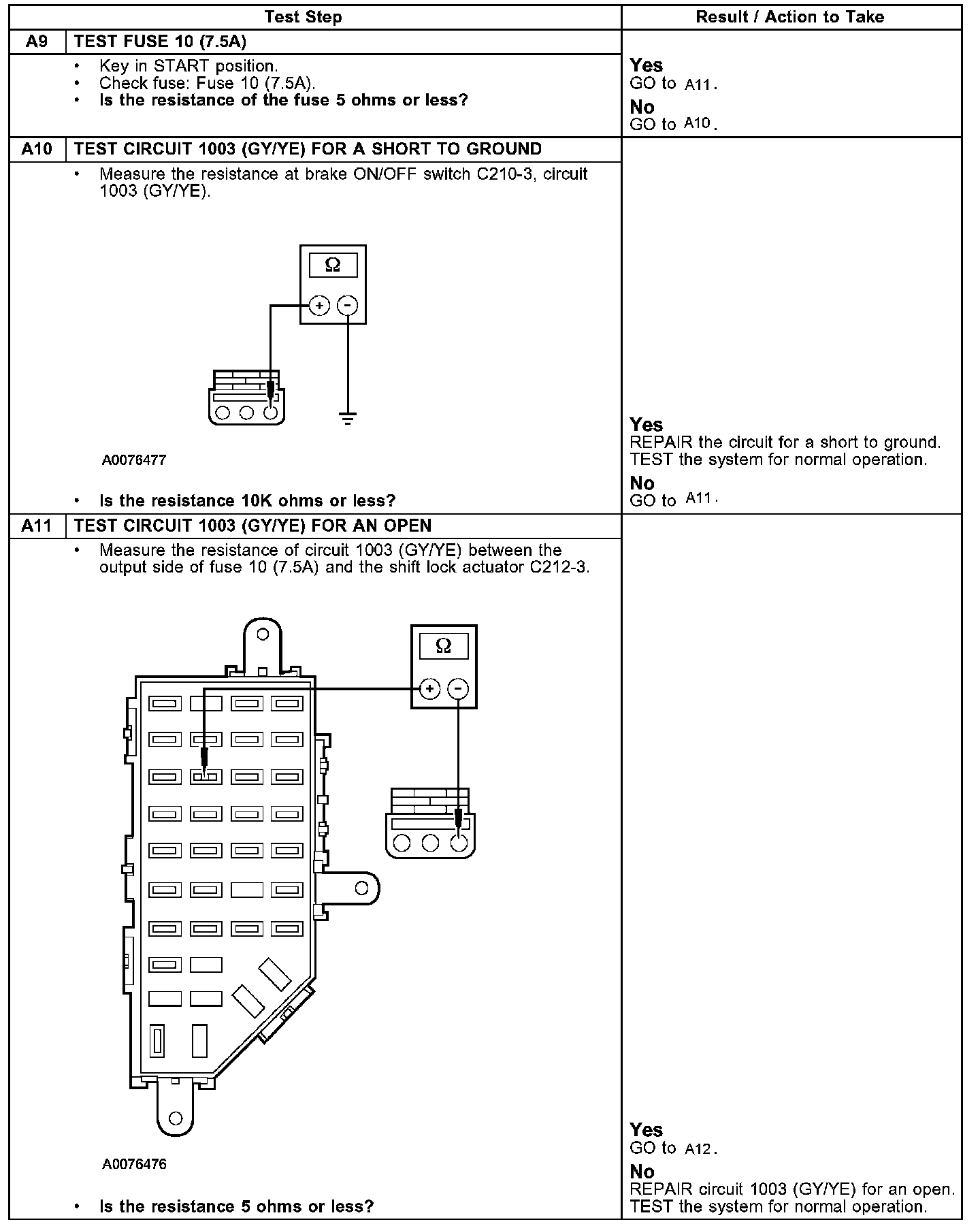

Steps A9 - A11:

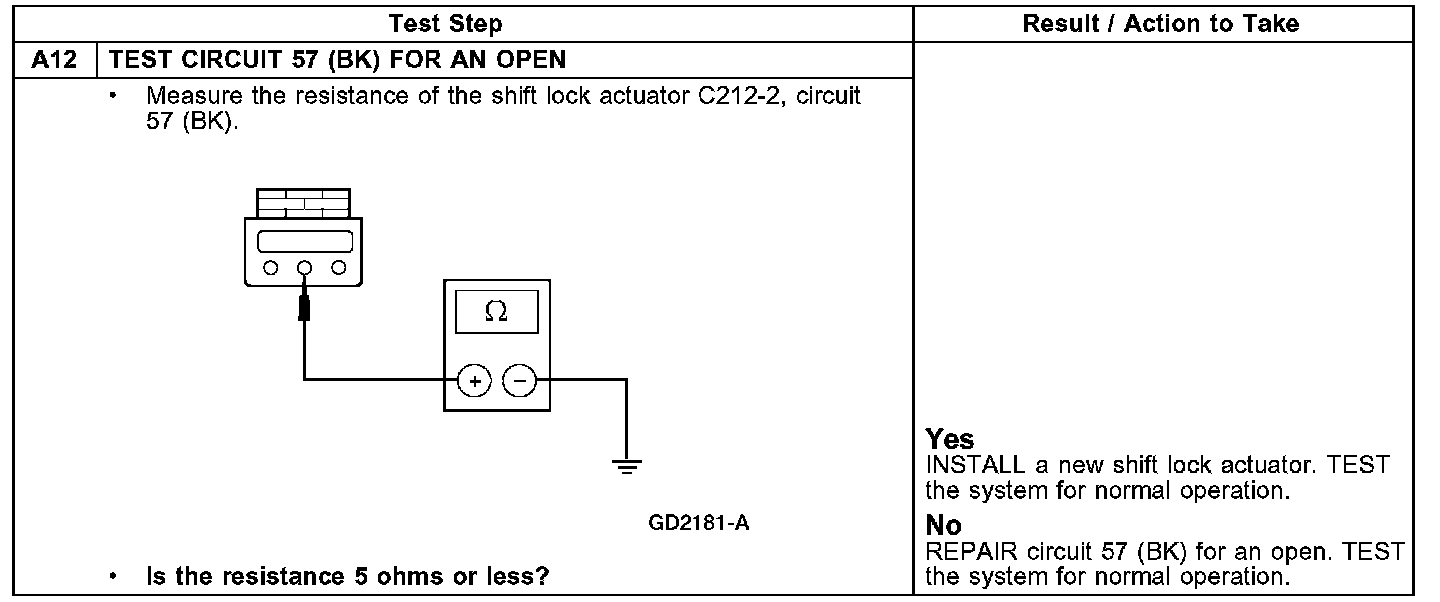

Step A12:
