Test C: the Transmission Control Switch Is Not Operating Correctly
Test C: the Transmission Control Switch Is Not Operating Correctly
PINPOINT TEST C: THE TRANSMISSION CONTROL SWITCH IS NOT OPERATING CORRECTLY

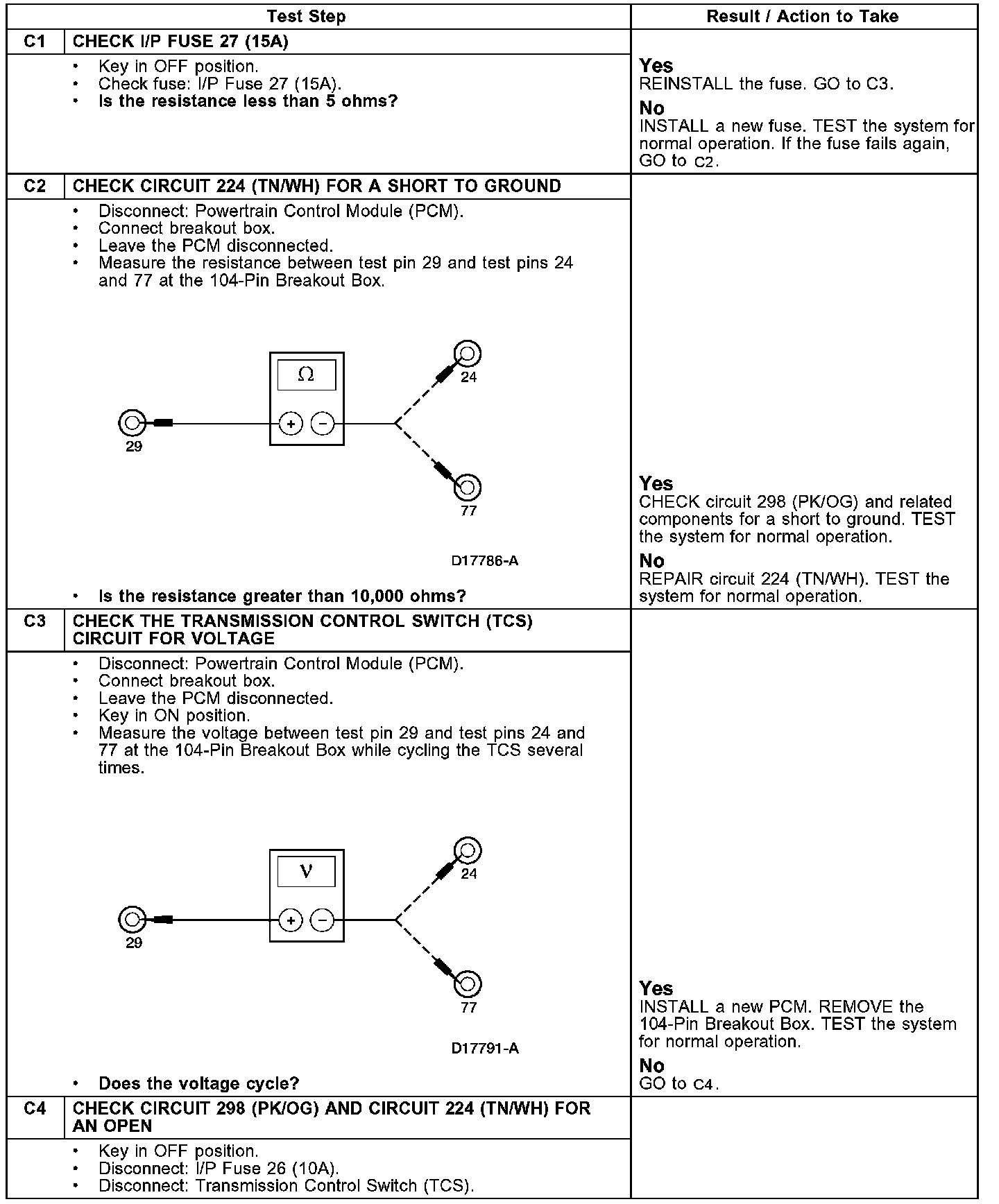

Steps C1 - C4:

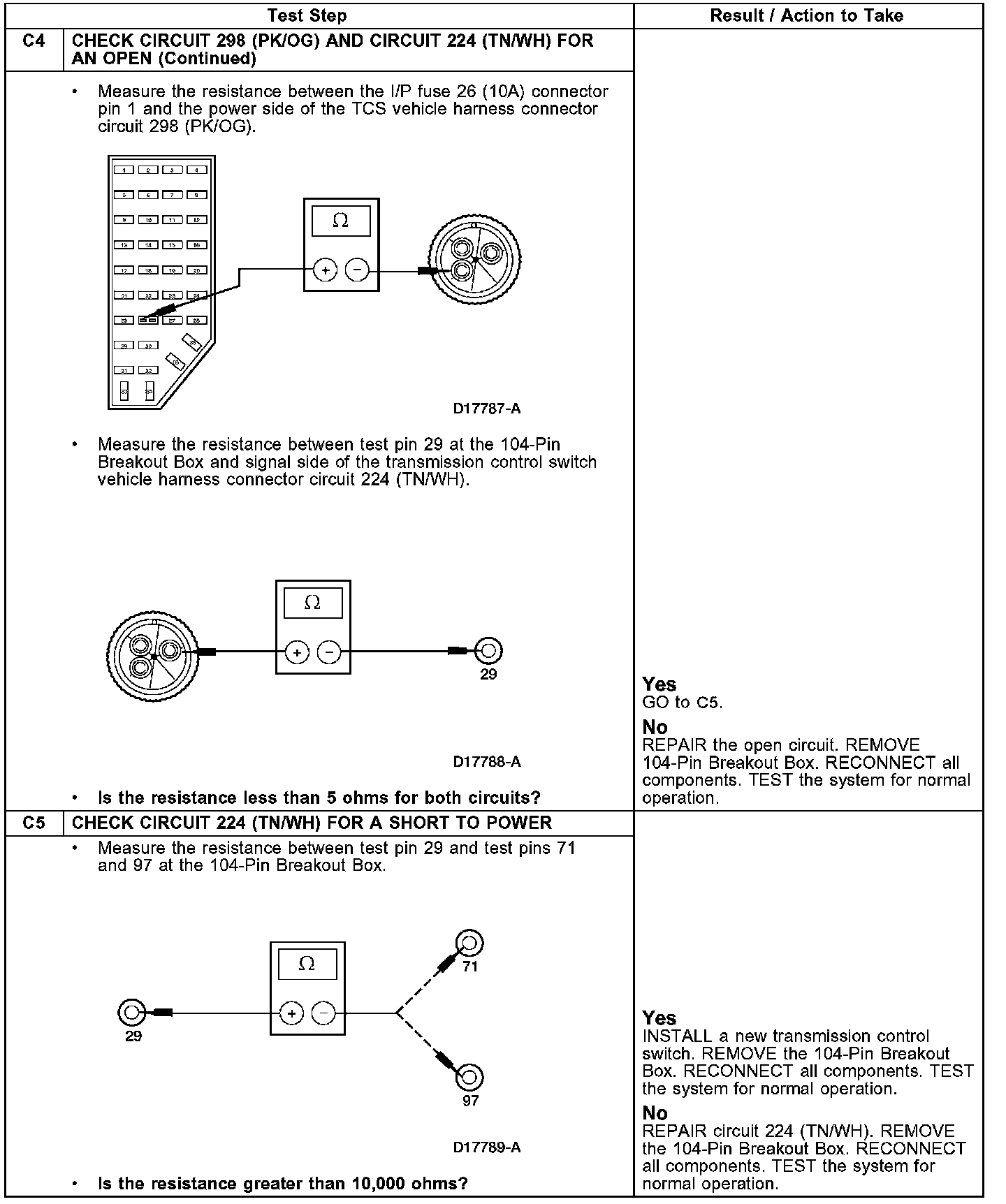

Steps C4 - C5:
