Input Shaft Bearing

Input Shaft Bearing

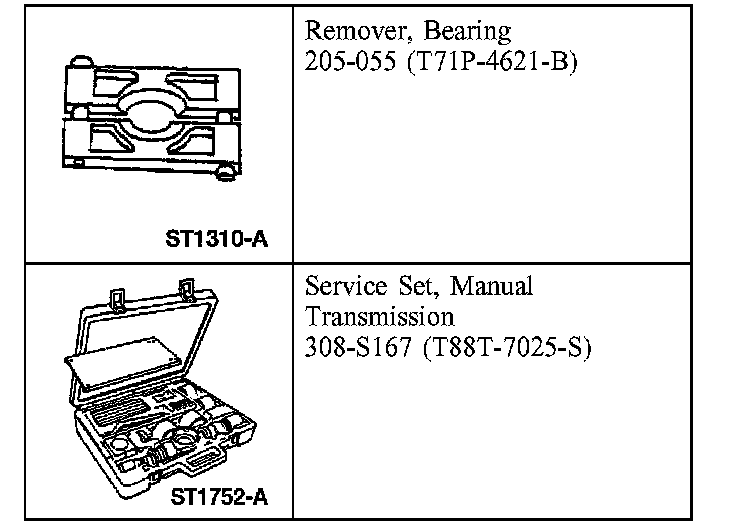

Special Tool(s)

Disassembly
1. Inspect the input shaft bearing for wear or damage.

2. CAUTION: To prevent damage, inspect the surface of the input shaft in the area of the bearing race to make sure it is smooth and free of burrs.

Inspect the input shaft for damage or wear.

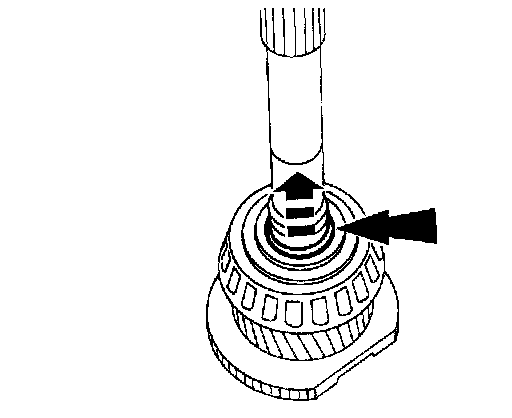

3. Remove and discard the front bearing oil scoop ring.





4. CAUTION: Hold the input shaft so it does not fall.

NOTE: Remove the input shaft bearing only if installing a new one.

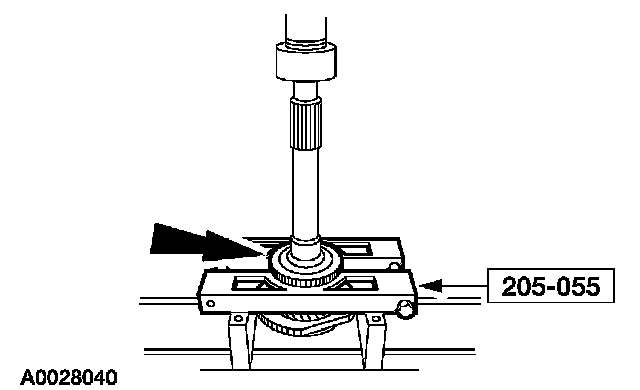

Using the special tool, press the input shaft bearing from the input shaft.

Assembly

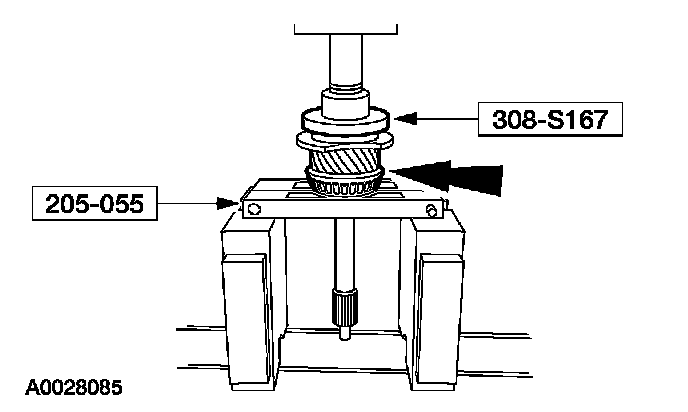

1. Using the special tools, press a new bearing on the input shaft.

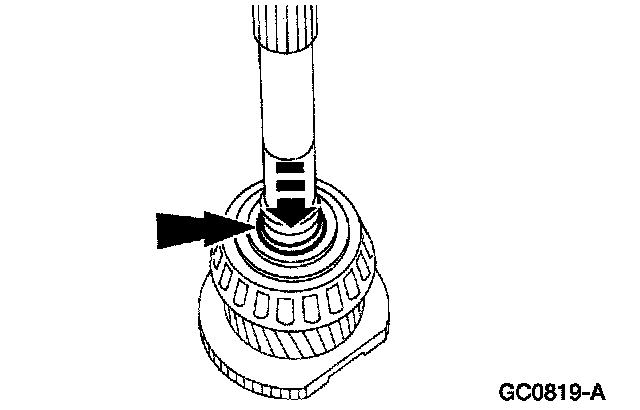

2. Install the front bearing oil scoop ring.
^ A click should be felt as the scoop ring notches align with the input shaft oil holes.
