Test C: Single Power Window Is Inoperative - Passenger Power Window
Test C: Single Power Window Is Inoperative - Passenger Power Window
PINPOINT TEST C: SINGLE POWER WINDOW IS INOPERATIVE - PASSENGER POWER WINDOW

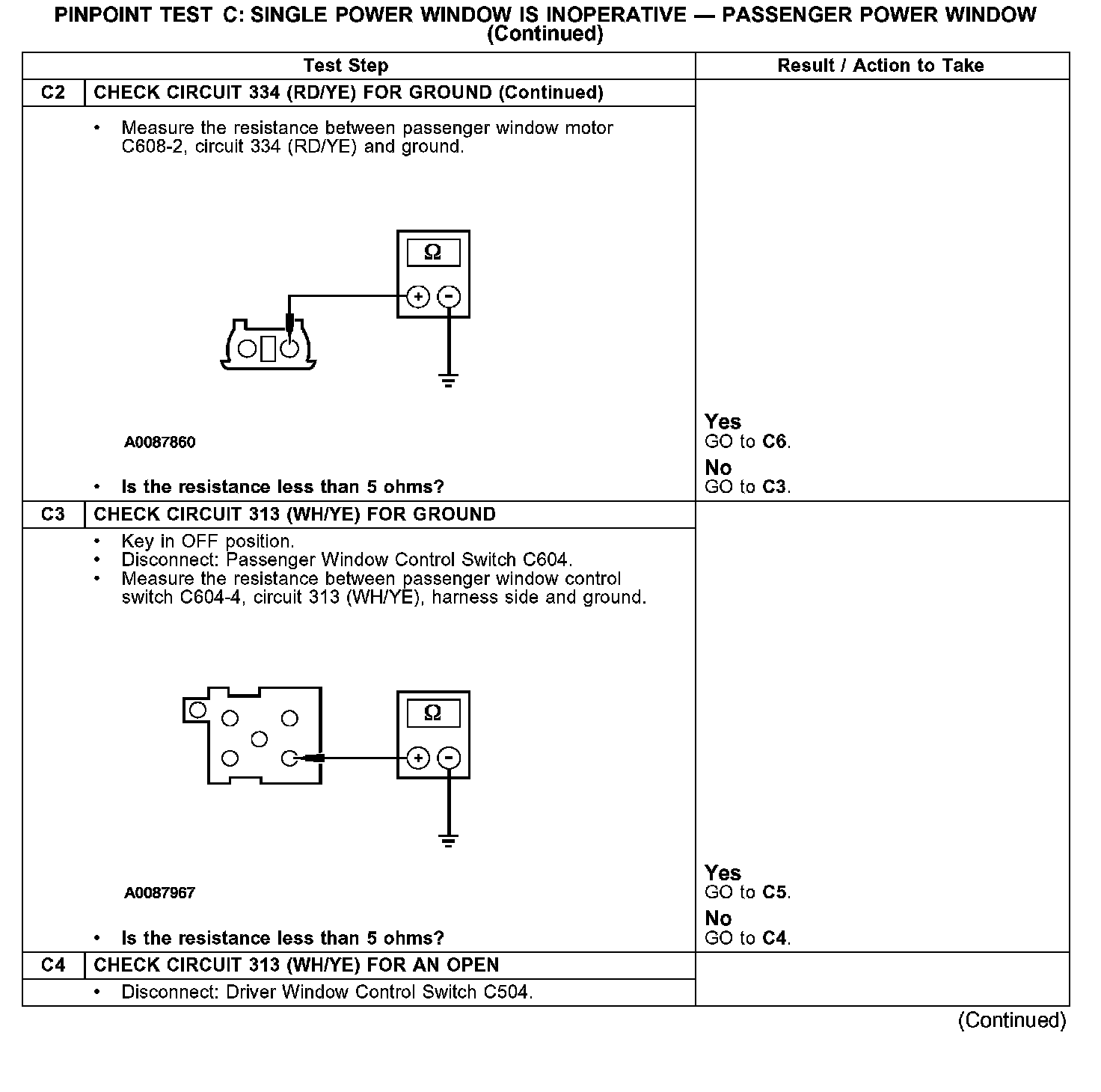

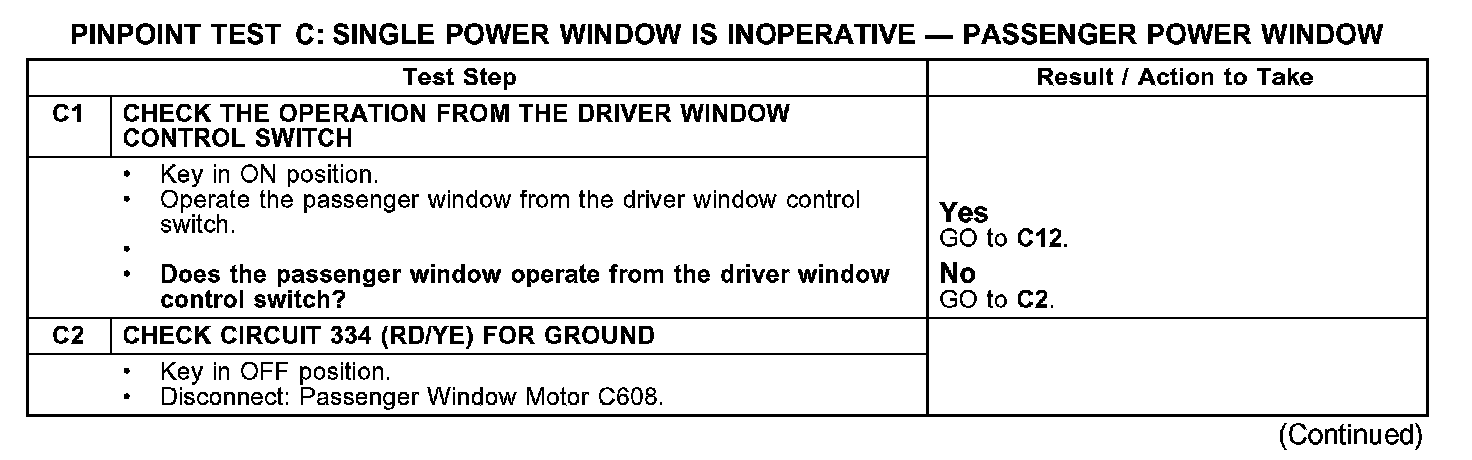

C1-C2:
C2-C4:
C4-C6:
C7-C9:

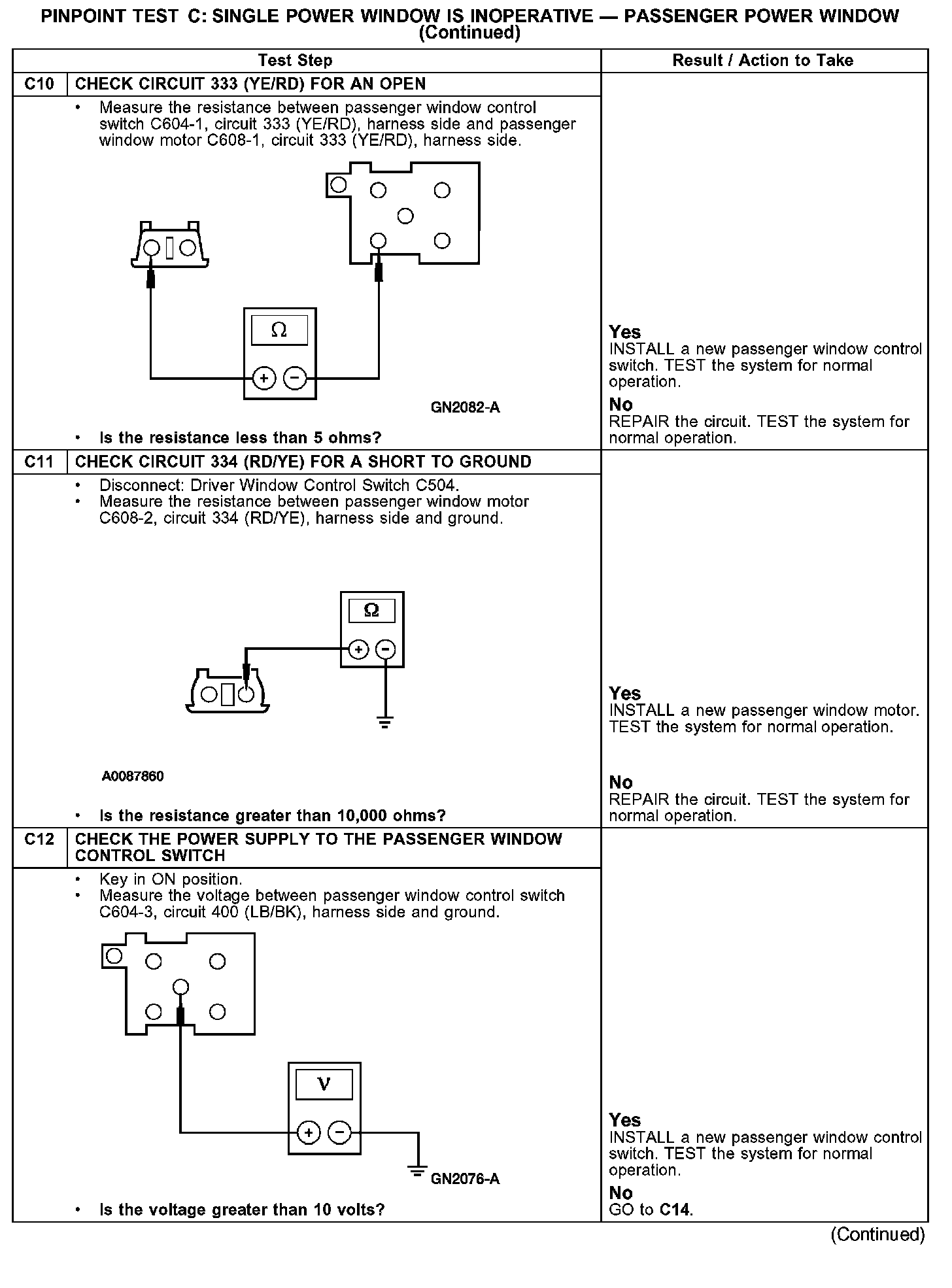

C10-C12:
C13-C14:
