Test F: The Low Wiper Speed Does Not Operate Correctly
Test F: The Low Wiper Speed Does Not Operate Correctly
PINPOINT TEST F: THE LOW WIPER SPEED DOES NOT OPERATE CORRECTLY

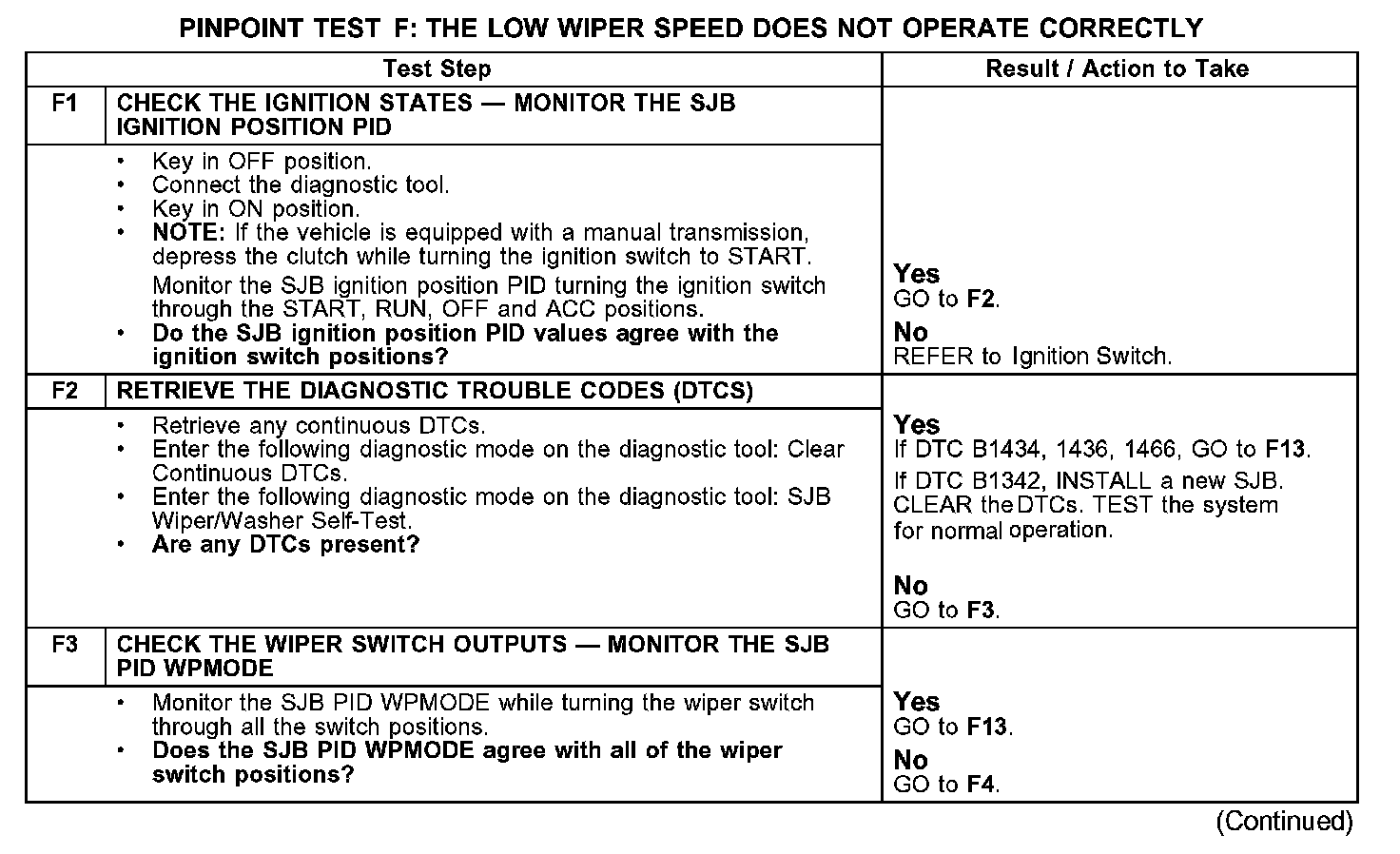

F1-F3:

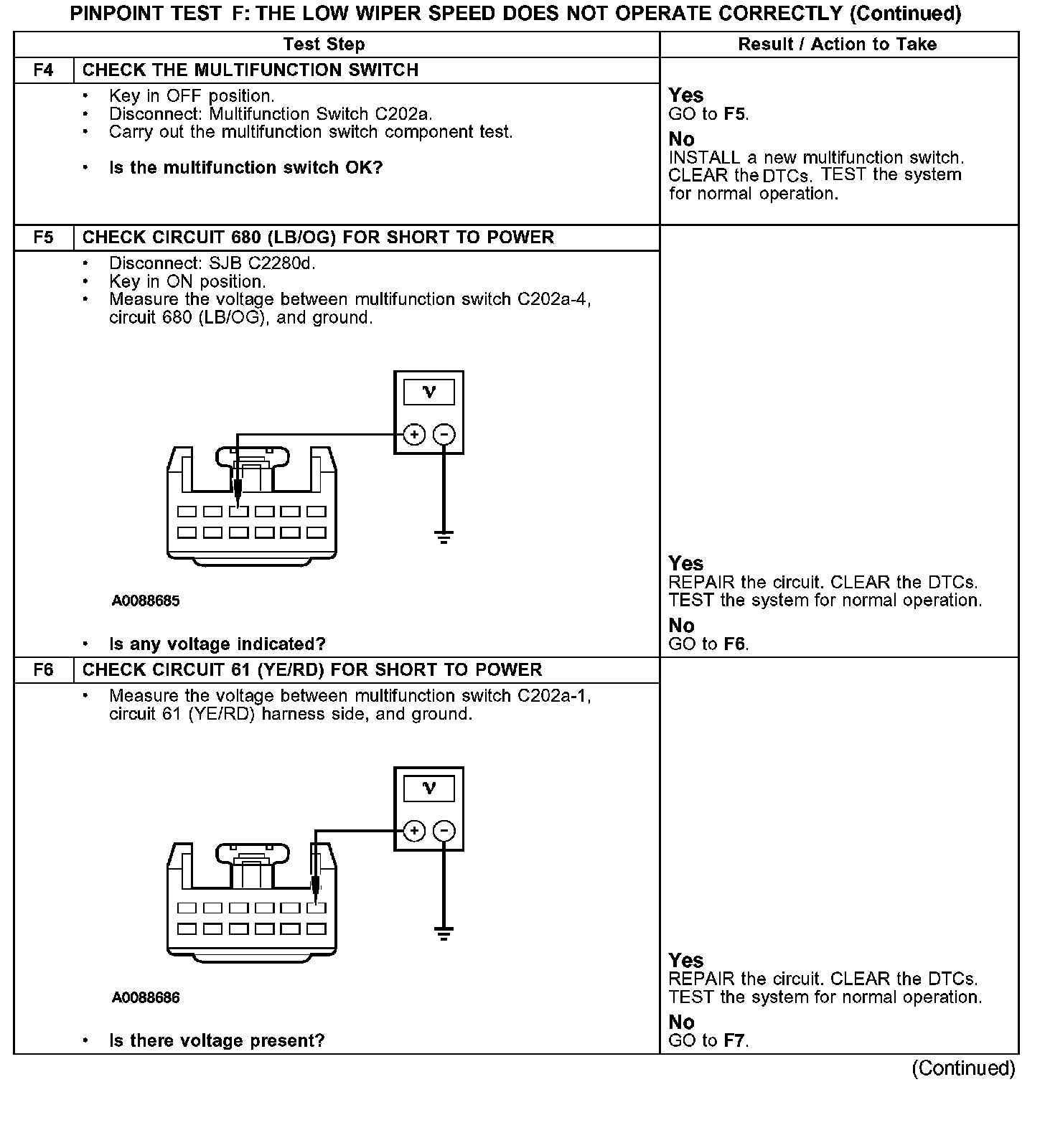

F4-F6:

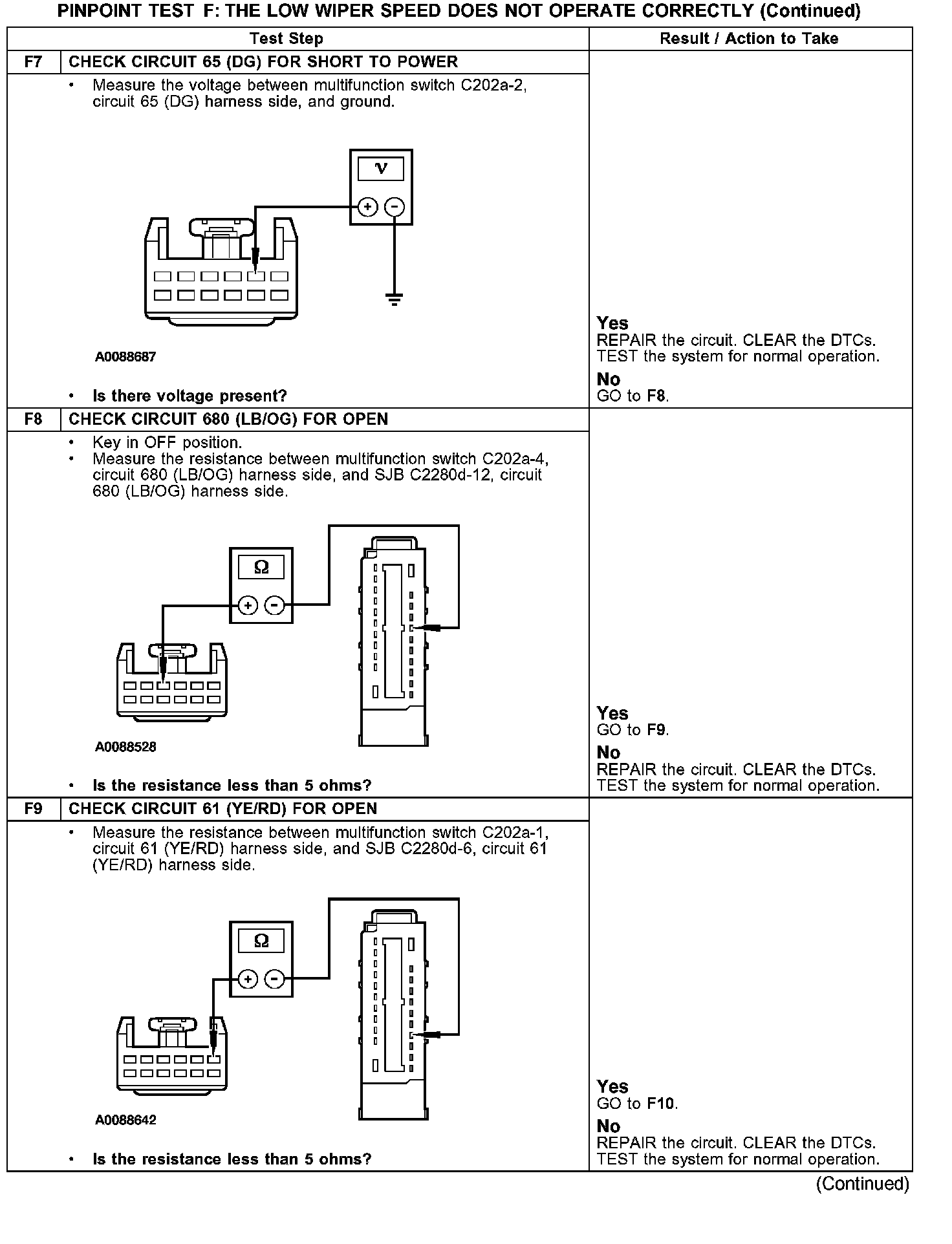

F7-F9:

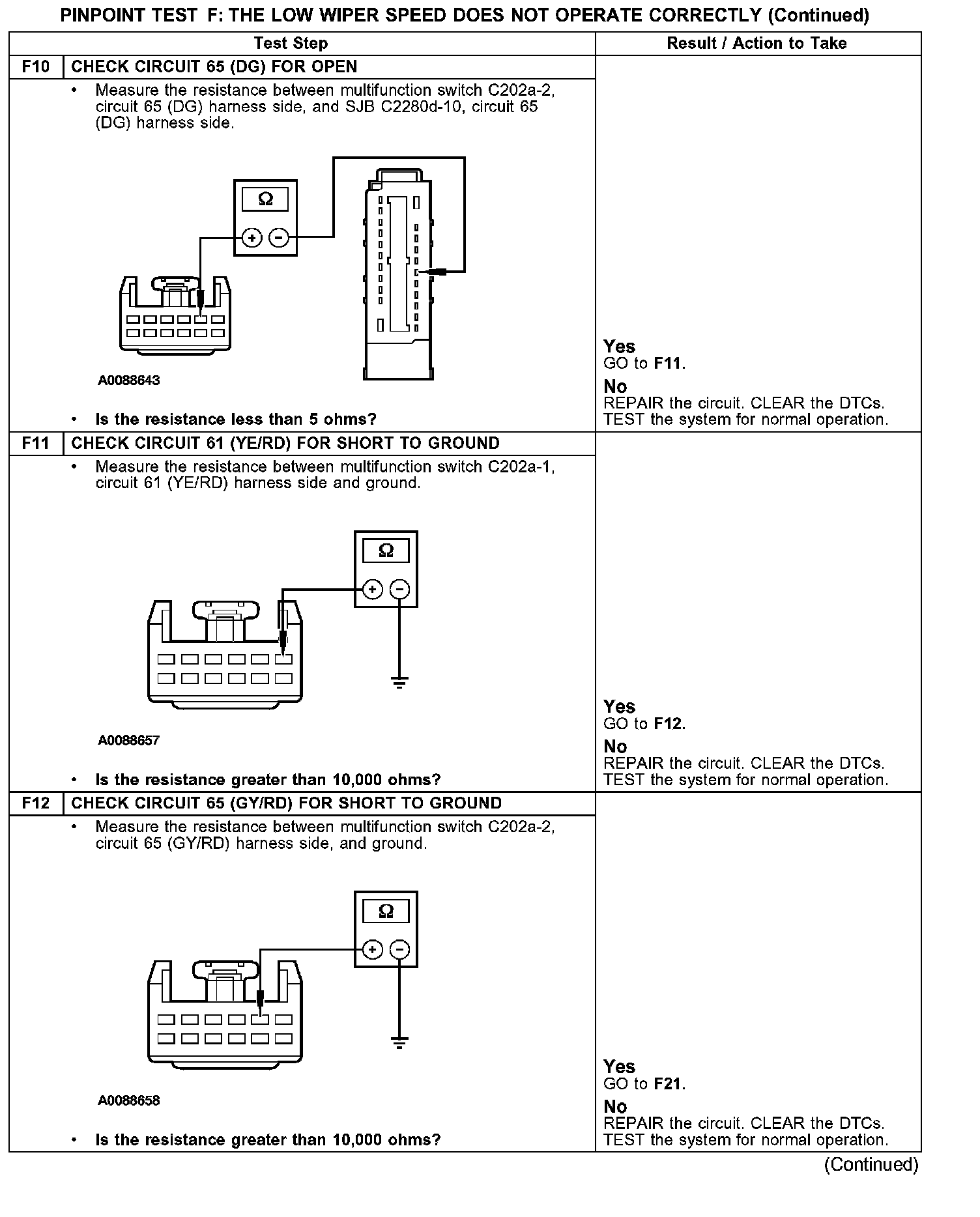

F10-F12:

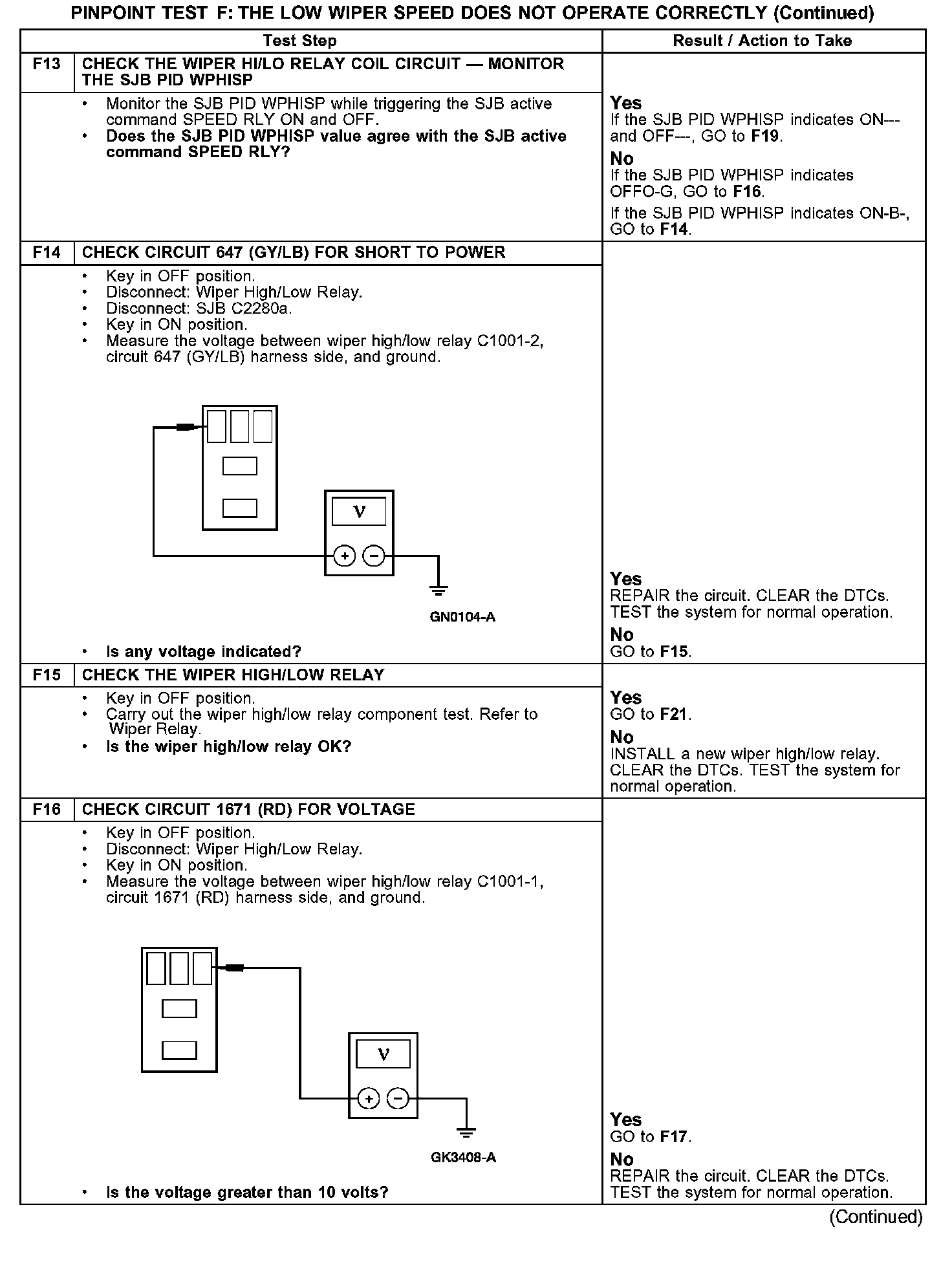

F13-F16:

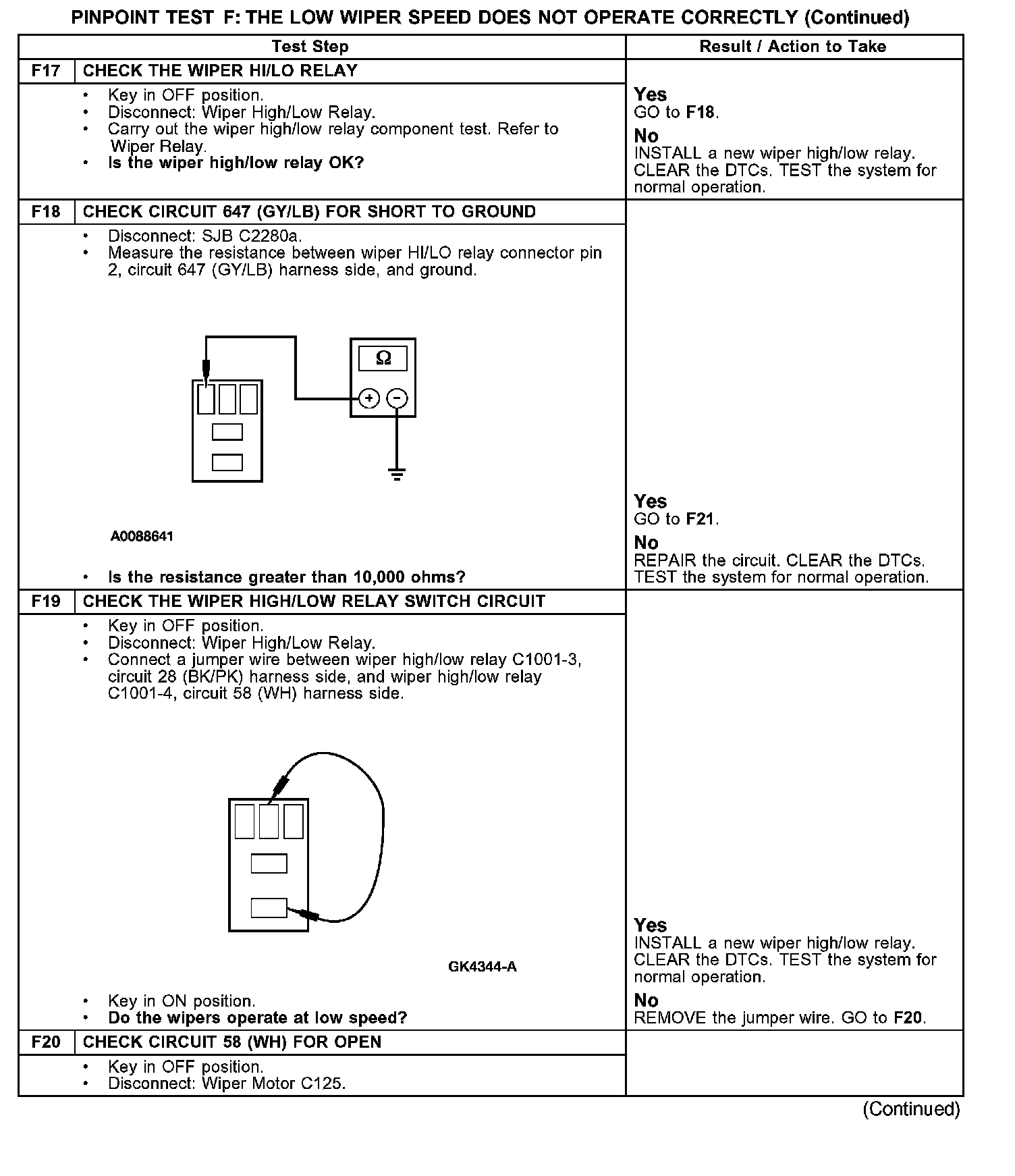

F17-F20:

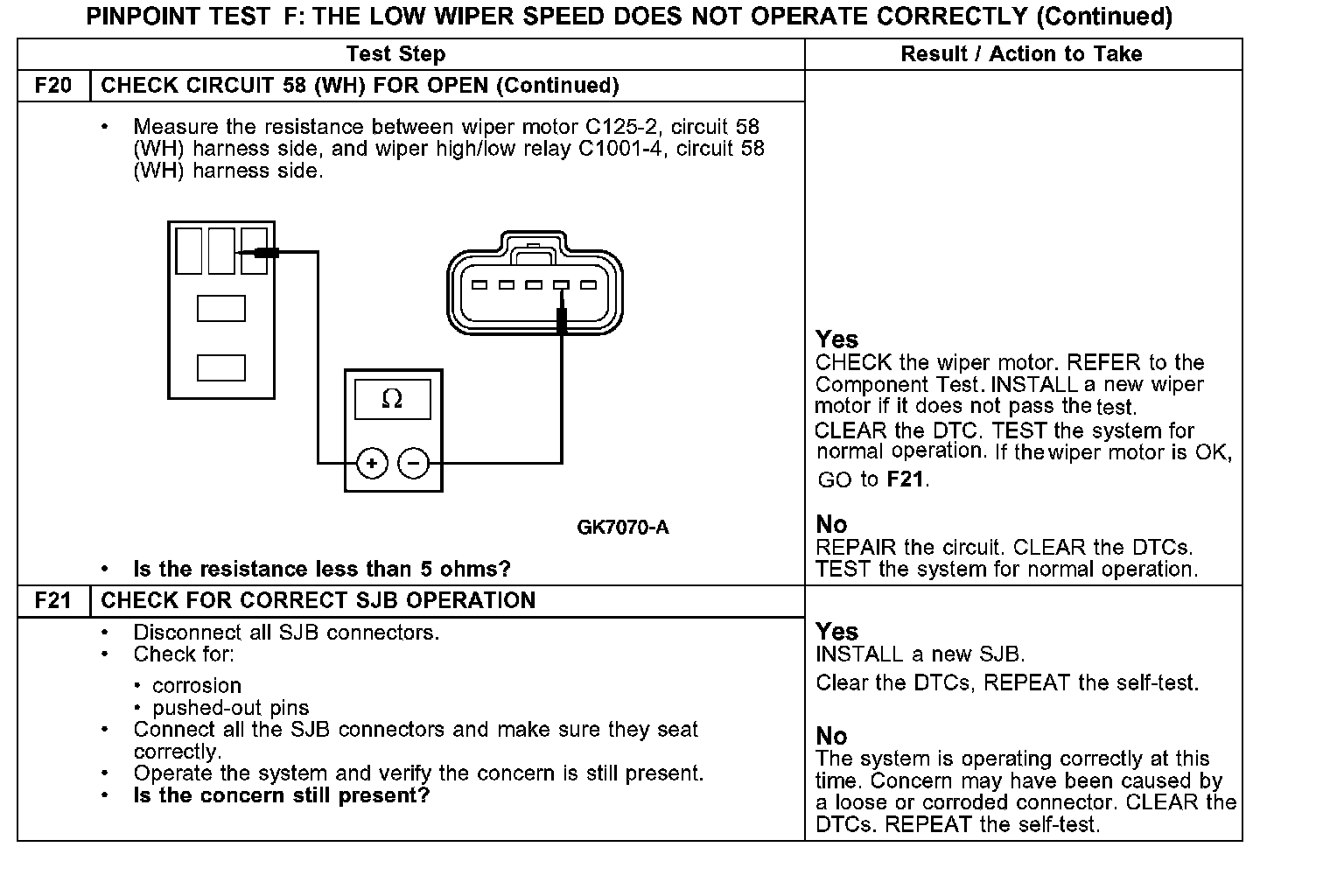

F20-F21:
