Drive Belt: Service and Repair

Accessory Drive Belt 4.0L

Removal and Installation





1. Remove the air cleaner outlet tube.

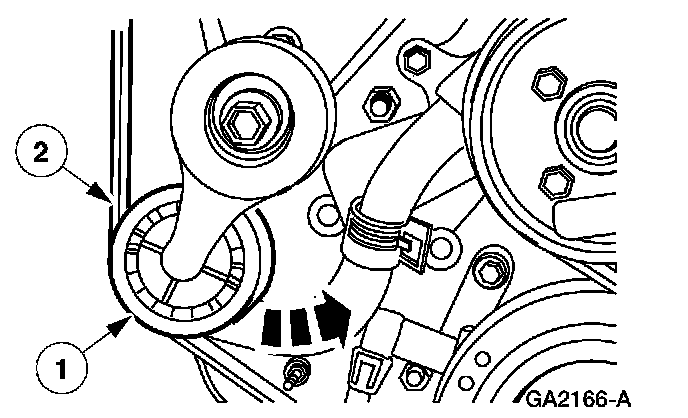

2. Remove the accessory drive belt.
1 Rotate the accessory drive belt tensioner counterclockwise.
2 Remove the belt.

3. NOTE: Refer to Accessory Drive for correct drive belt routing.

To install, reverse the removal procedure.
