Removal and Installation

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Removal and Installation
1. Disconnect the battery ground cable.
2. Partially drain the cooling system.







3. Disconnect the engine coolant temperature (ECT) sensor electrical connector.

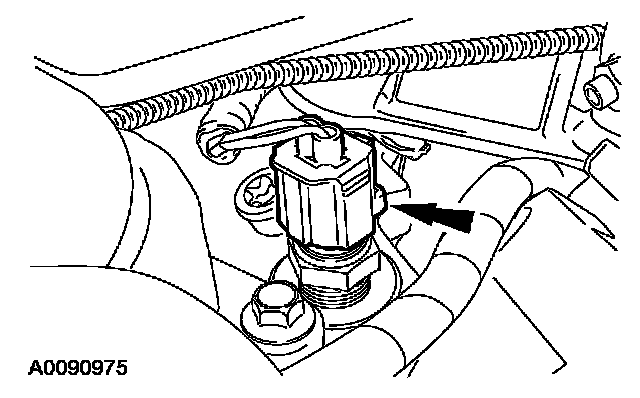

4. Remove the ECT sensor.

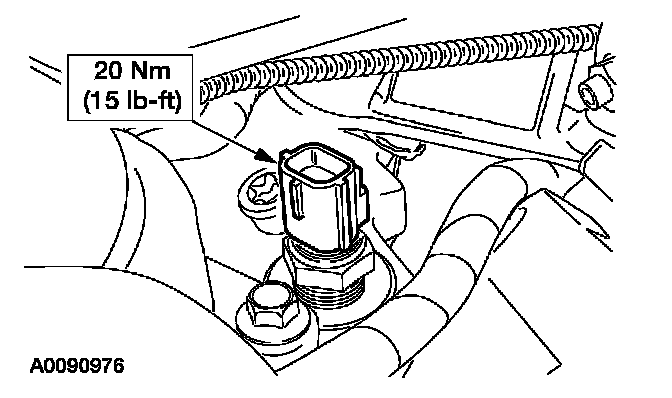

5. To install, reverse the removal procedure.
