Home >> Ford >> 2005 >> Ranger 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Flywheel

Flywheel

TORQUE SPECIFICATIONS

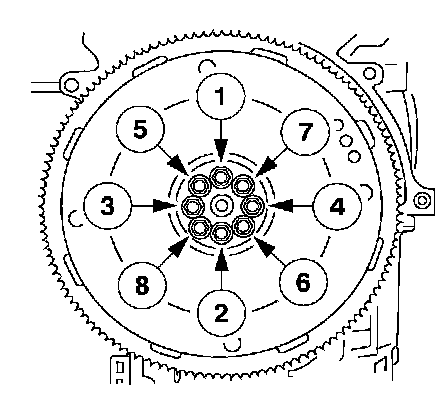

Flywheel Bolts
Stage 1 13 Nm (10 ft. lbs.)
Stage 2 71 Nm (52 ft. lbs.)
