Test E: The Headlamps Are On Continuously

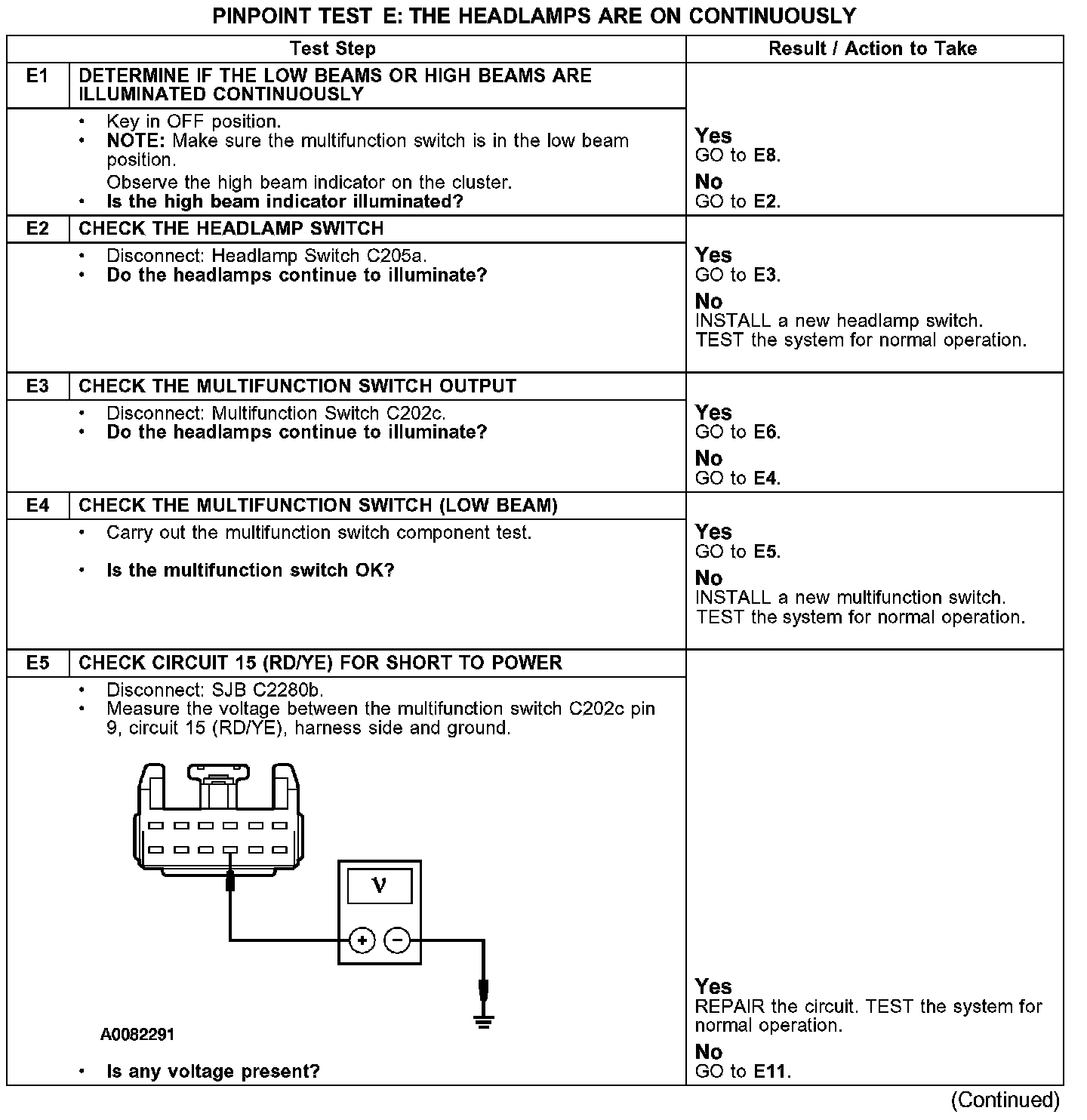

PINPOINT TEST E: THE HEADLAMPS ARE ON CONTINUOUSLY


E1-E5:






E6-E11:
