Power Door Lock Switch: Service and Repair

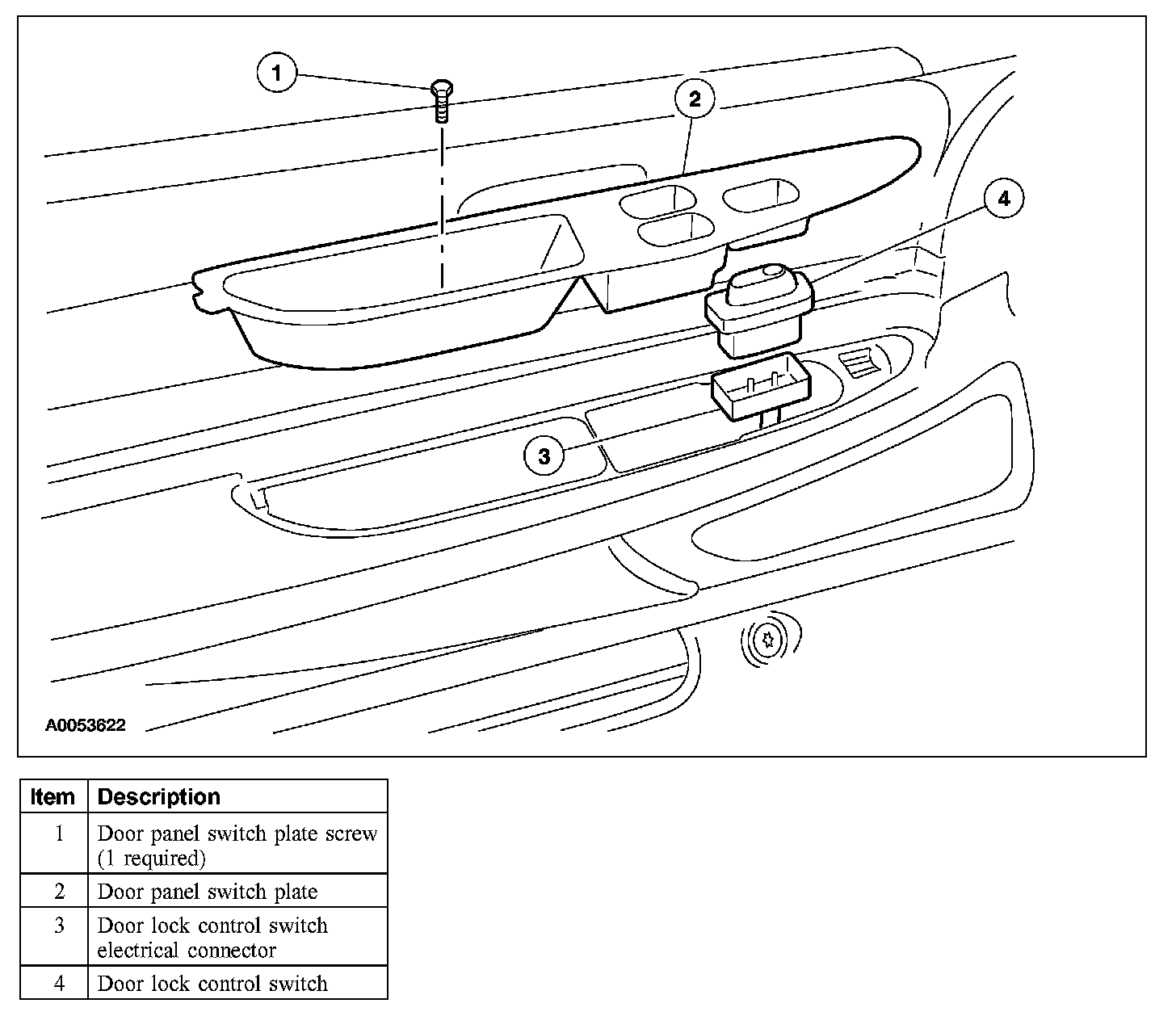

DOOR LOCK CONTROL SWITCH







Removal and Installation
1. Remove the screw and the door panel switch plate.
2. Disconnect the door lock control switch electrical connector.
3. Remove the door lock control switch.
4. To install, reverse the removal procedure.
