Home
>>
Ford
>>
2005
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Brake Signal
>>
Locations
Brake Signal: Locations

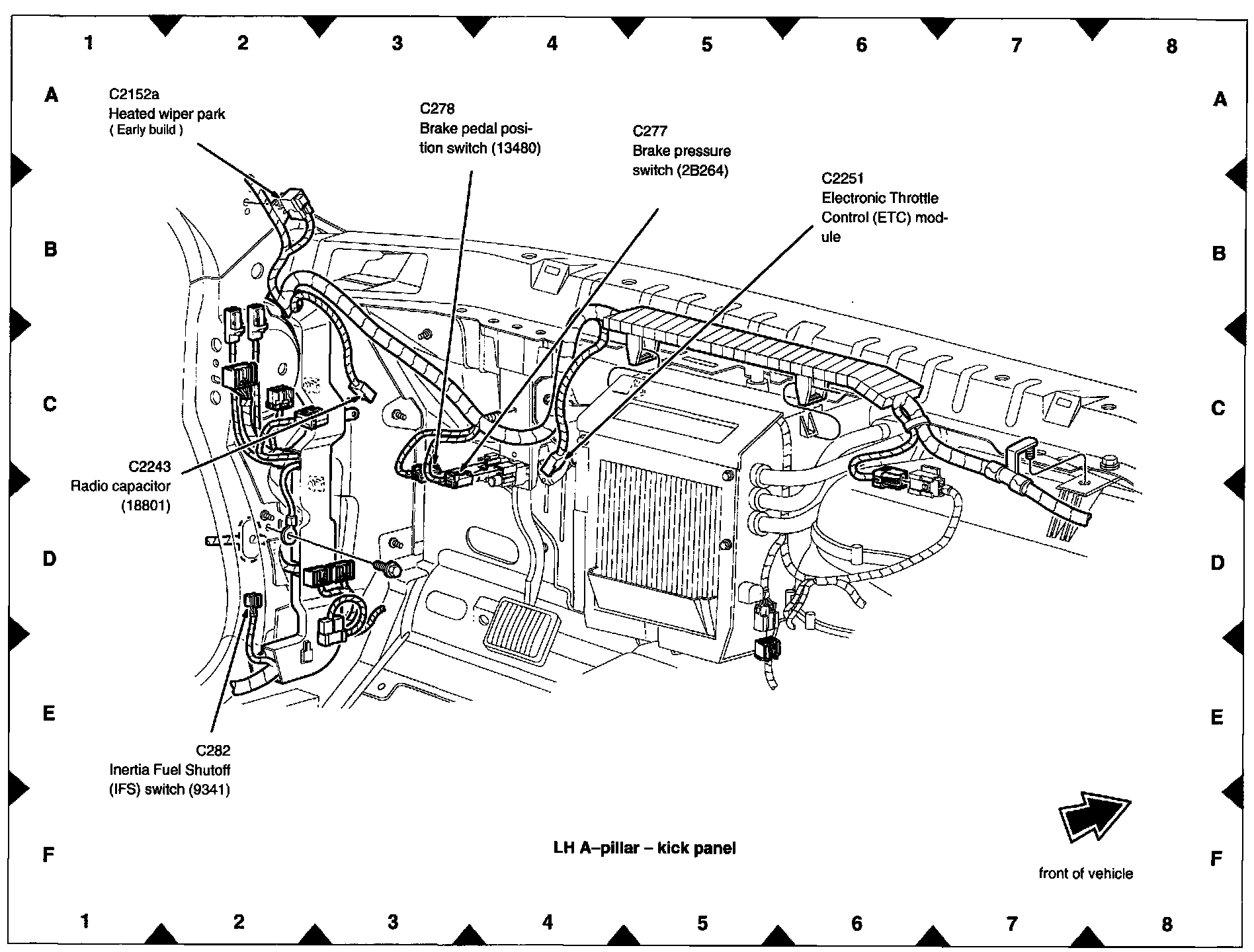

View 151-42 (LH A-Pillar - Kick Panel):
