Home
>>
Ford
>>
2005
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

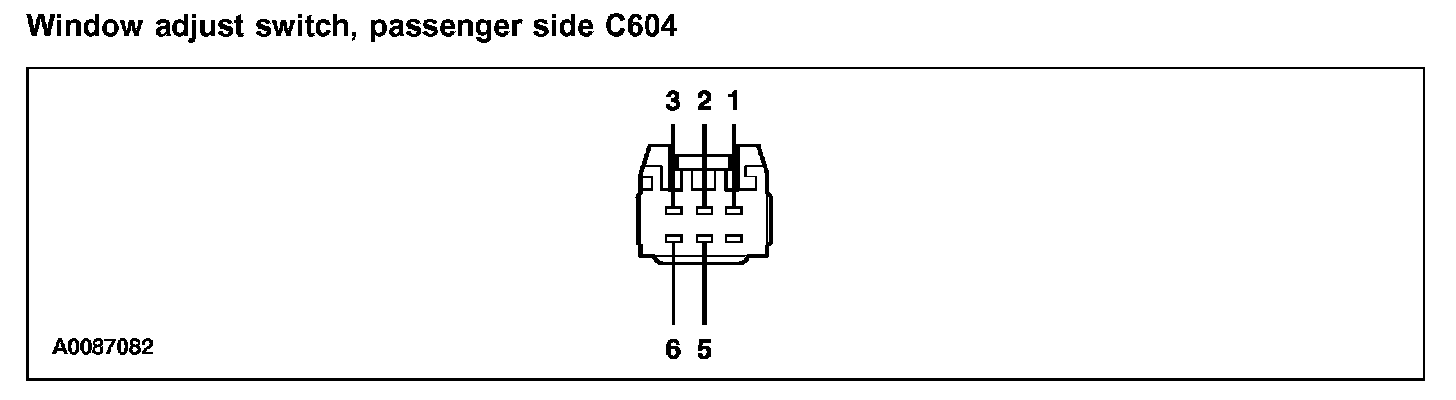

Window Adjust Switch, Passenger Side C604
Window Adjust Switch, Passenger Side C604

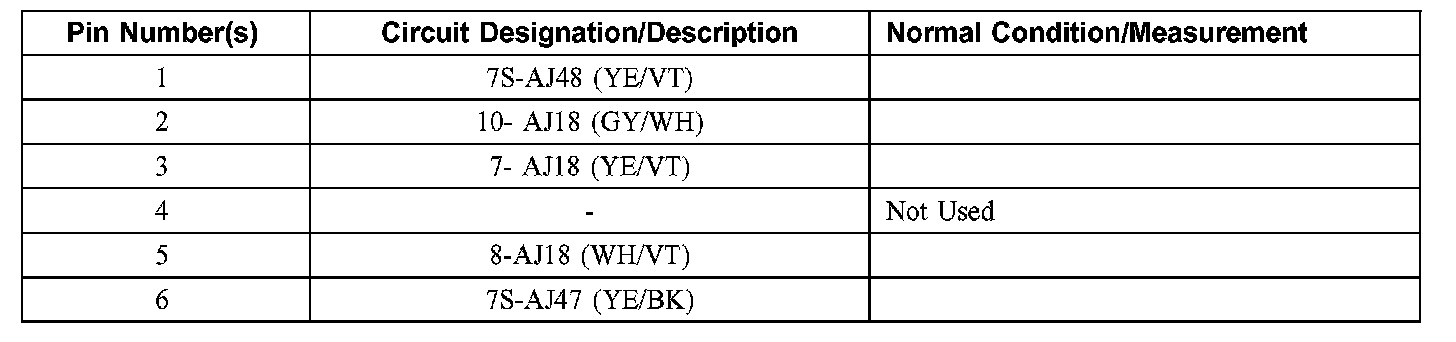

Window Adjust Switch, Passenger Side C604 (Part 1):
Window Adjust Switch, Passenger Side C604 (Part 2):
