Home >> Ford >> 2006 >> E 350 V10-6.8L VIN S >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-33 (Roof, LH Side, Front)

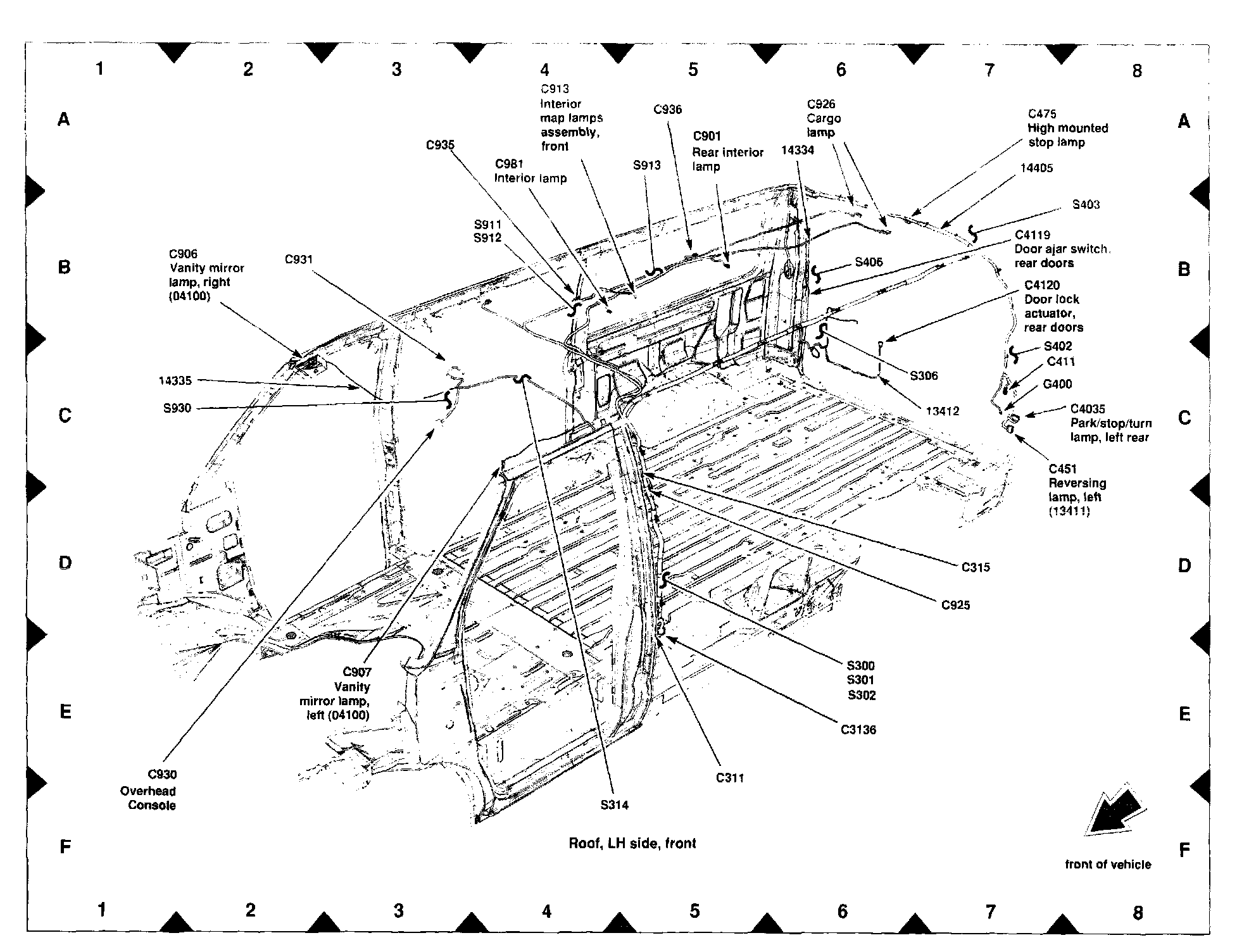

View 151-33 (Roof, LH Side, Front)

View 151-33 (Roof, LH Side, Front):
