Home >> Ford >> 2006 >> E 350 V10-6.8L VIN S >> Repair and Diagnosis >> Diagrams >> Connectors >> View 151-37 (Chassis - Van/Wagon)

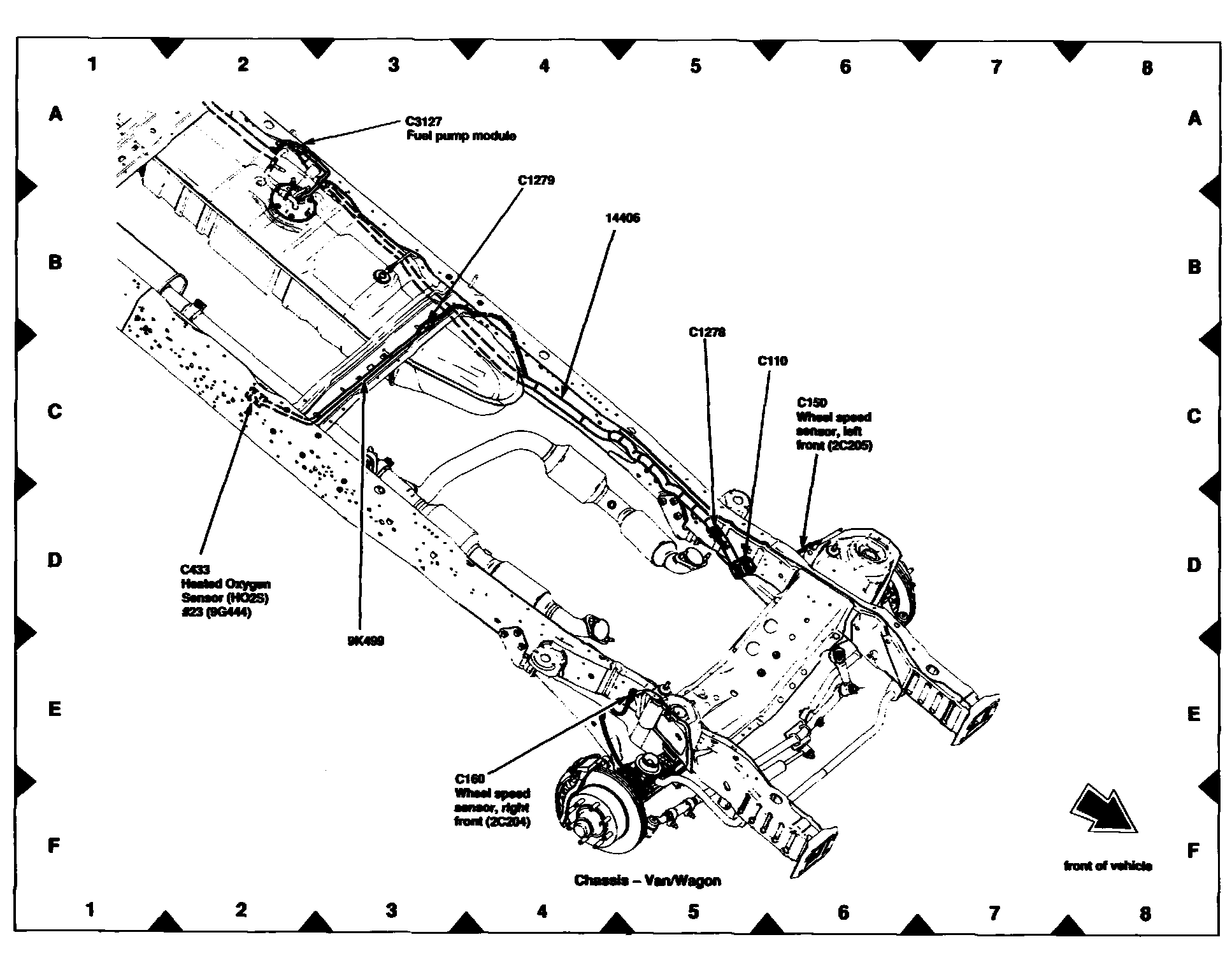

View 151-37 (Chassis - Van/Wagon)

View 151-37 (Chassis - Van/Wagon):
