Engine Components - Exploded View

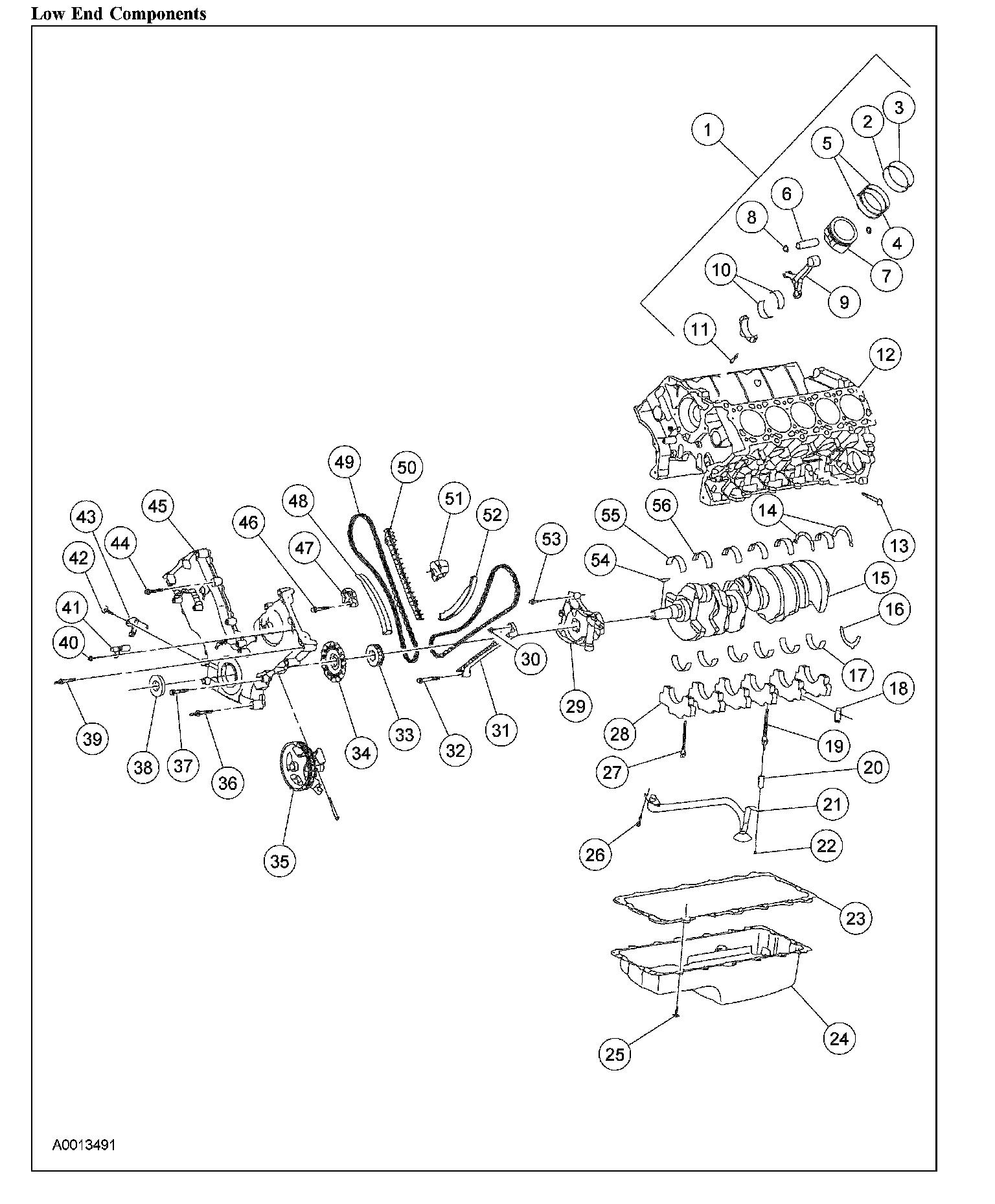

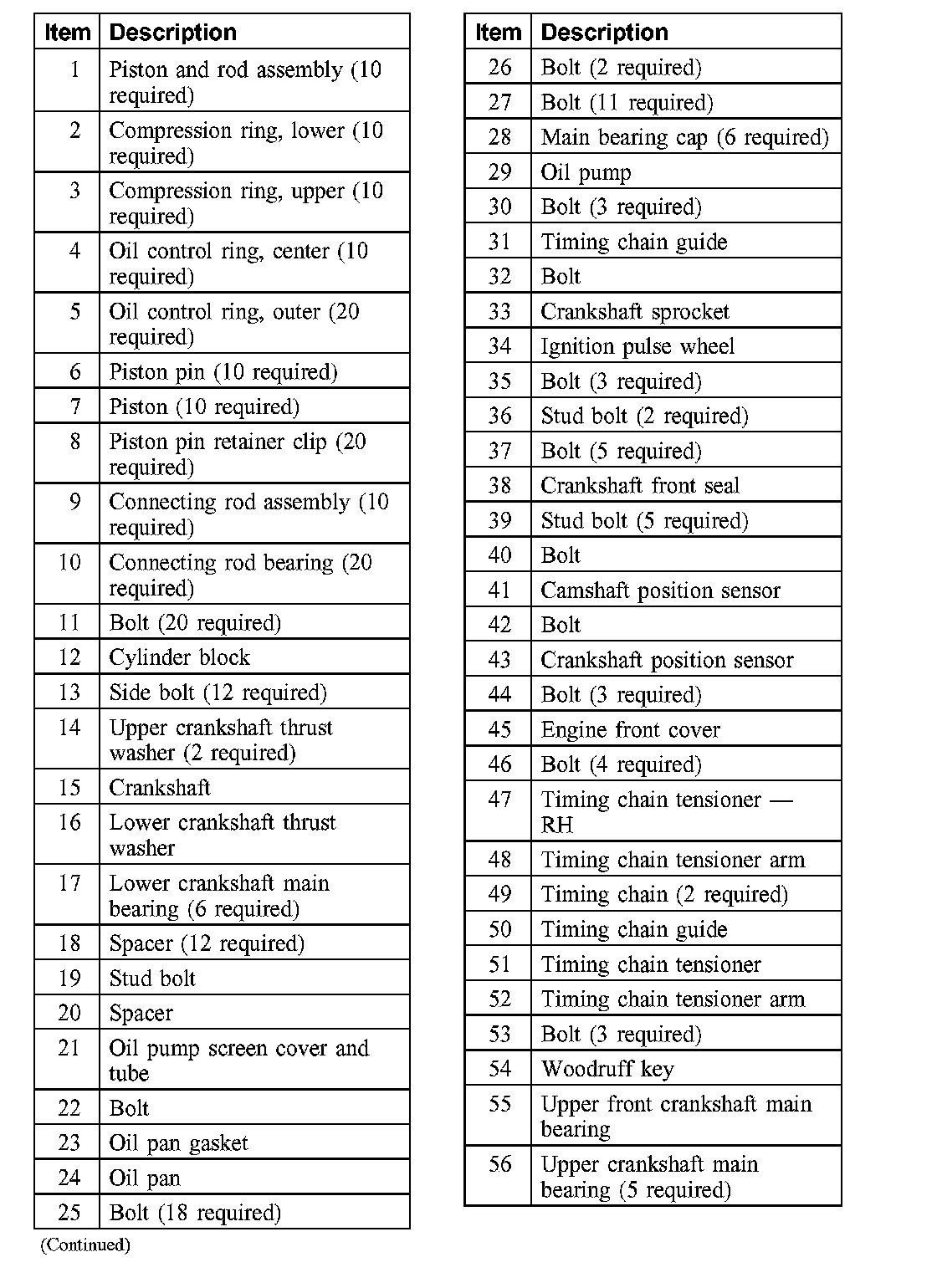

Low End Components:
Low End Components:

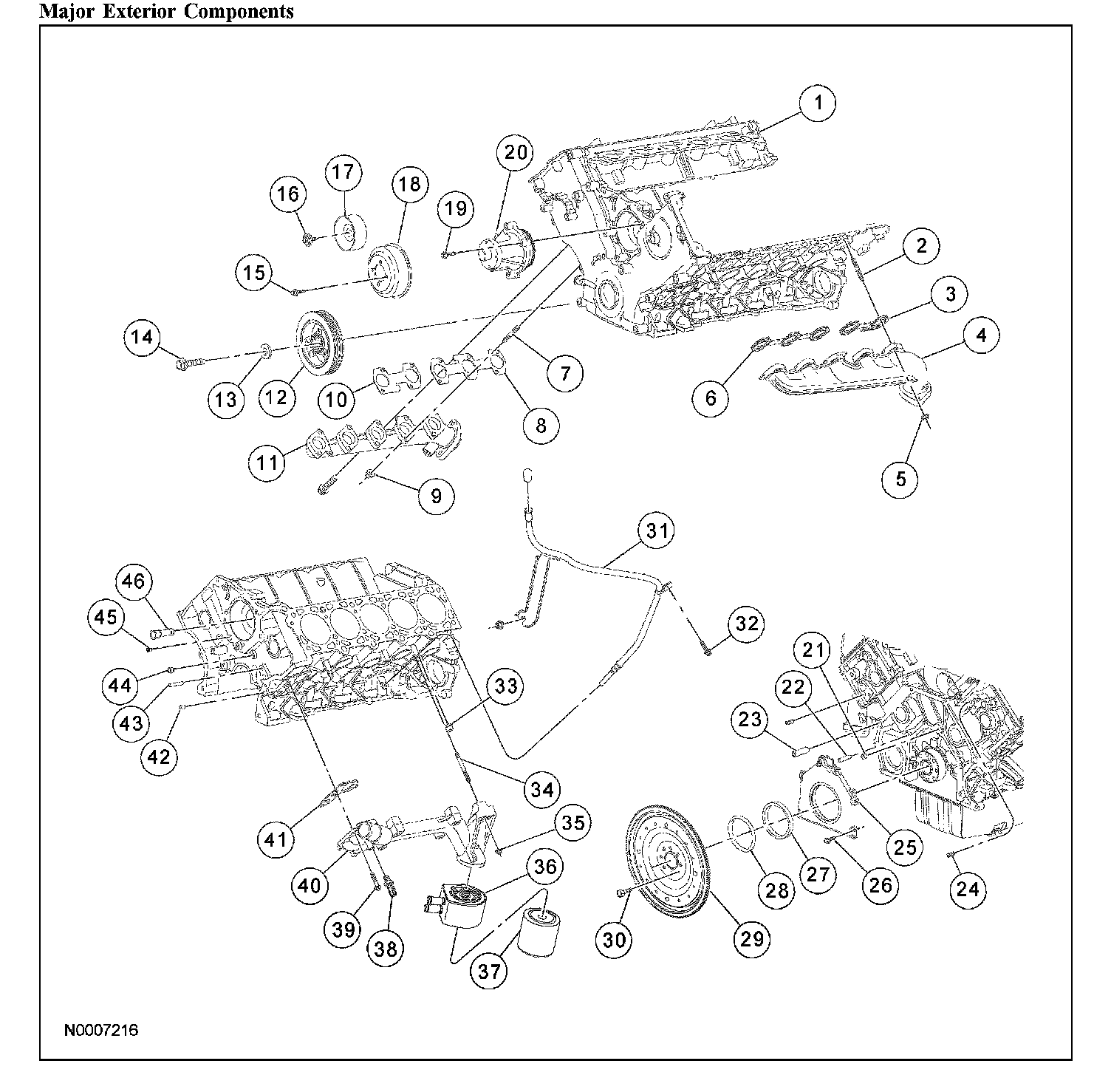

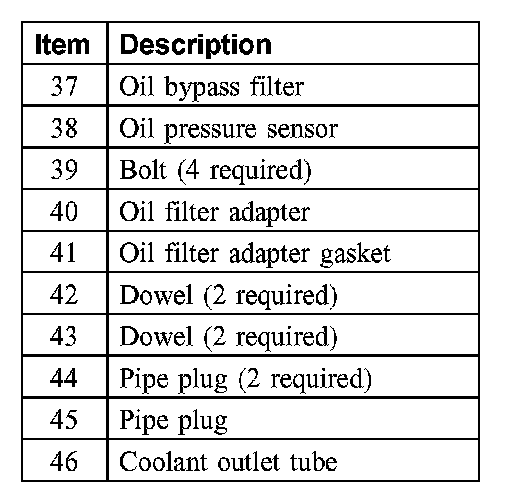

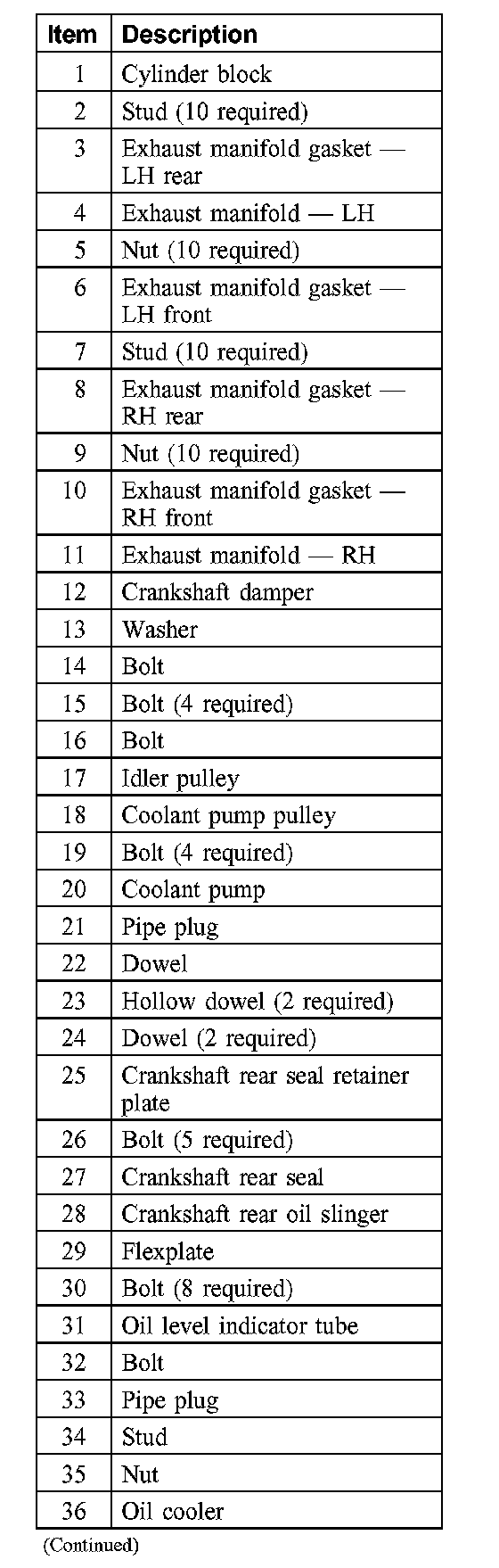

Major Exterior Components:
Major Exterior Components:
Major Exterior Components:
