Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2006
>>
E 350 V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
View 151-39 (Chassis - Van/Wagon)
View 151-39 (Chassis - Van/Wagon)

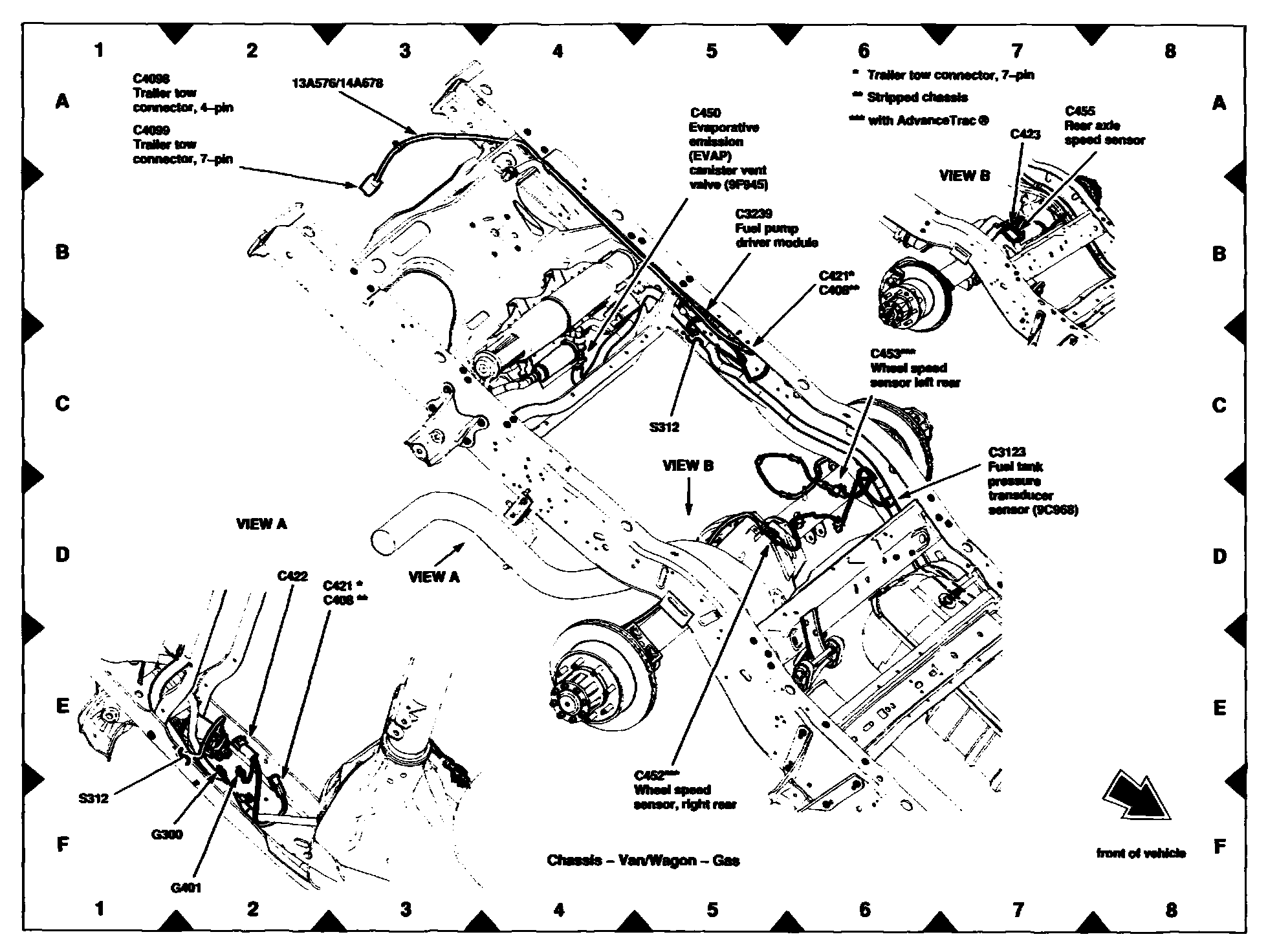

View 151-39 (Chassis - Van/Wagon):
View 151-42 (Chassis - Cutaway/Stripped Chassis - Rear):
