Valve Guide Seal: Service and Repair

Valve Seals

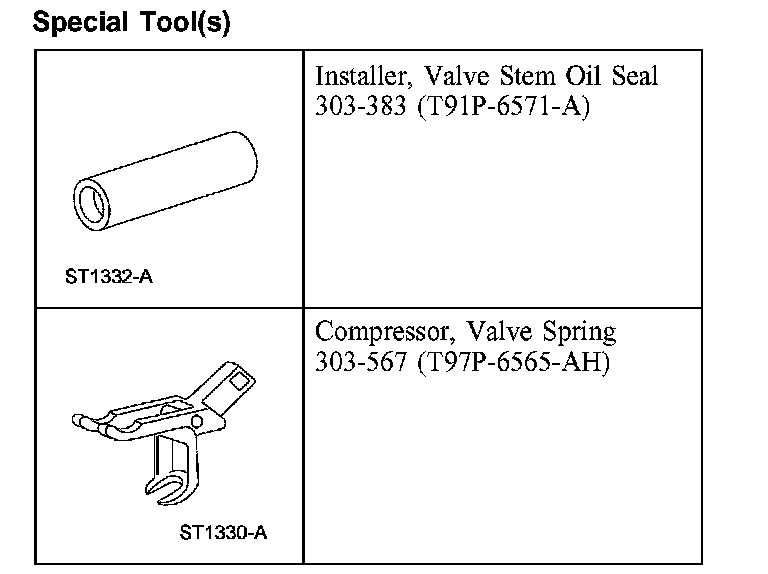

Special Tool(s):

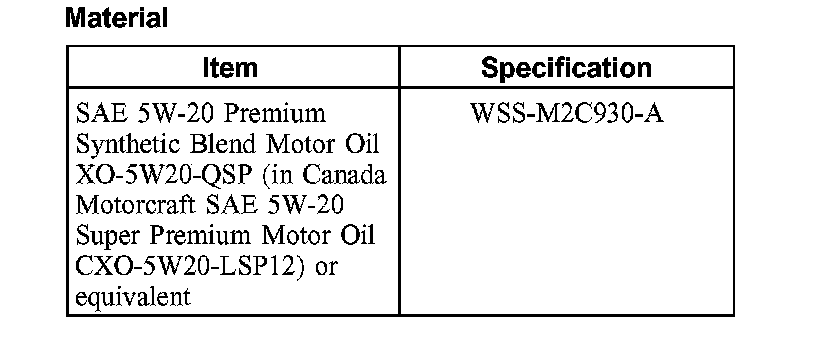

Material:

Removal
1. Remove the valve spring.
2. Remove and discard the valve stem seals.

Installation





1. NOTE: Lubricate the valve seals with clean engine oil prior to installation.

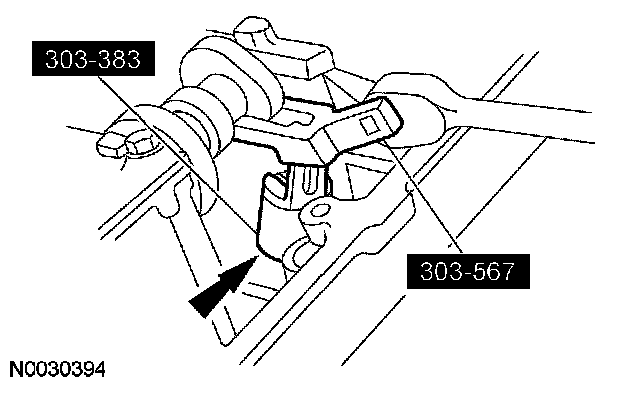

Using the special tools, install the new valve stem seal.
2. Install the valve spring.
