Test B: The Instrument Cluster Illumination Is Inoperative

PINPOINT TEST B: THE INSTRUMENT CLUSTER ILLUMINATION IS INOPERATIVE

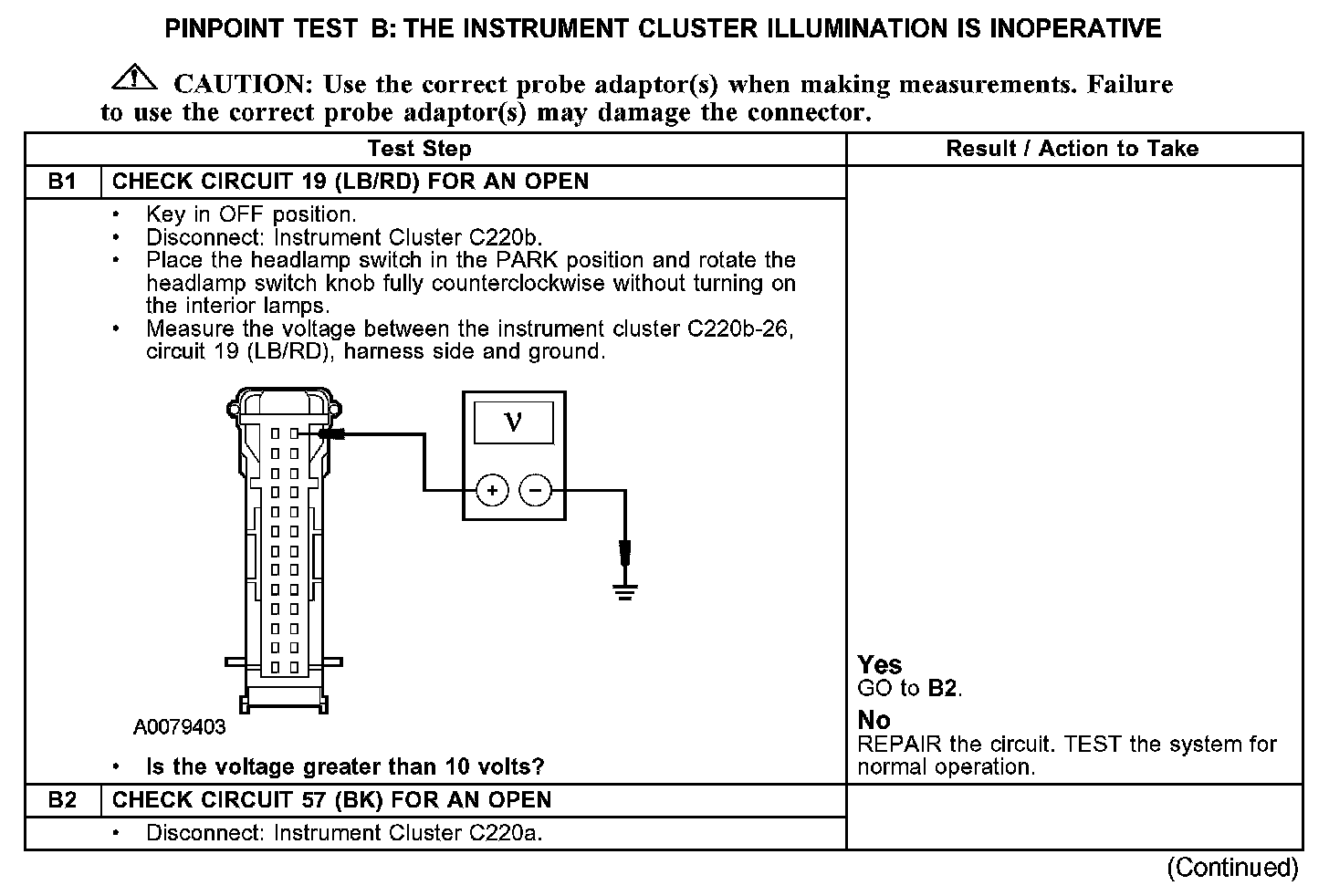

B1-B2:

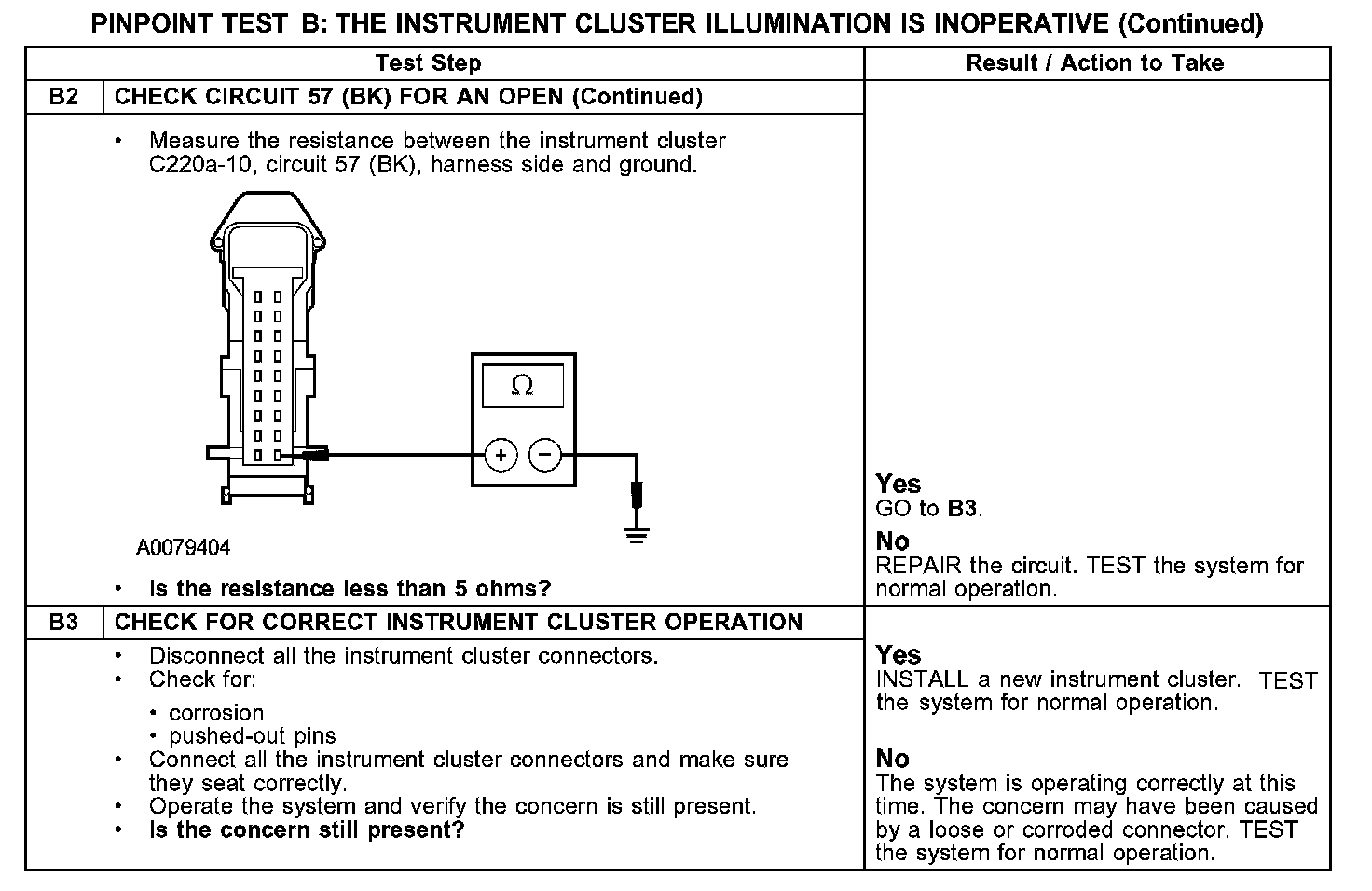

B2-B3:

Normal Operation
Variable voltage is supplied to the instrument cluster on circuit 19 (LB/RD). The instrument cluster is grounded by circuit 57 (BK).

Possible Causes
- circuit 19 (LB/RD) open
- circuit 57 (BK) open
- instrument cluster
