Door Position Switch
>>
Locations
>>
Sliding Door Contact Switch
Sliding Door Contact Switch

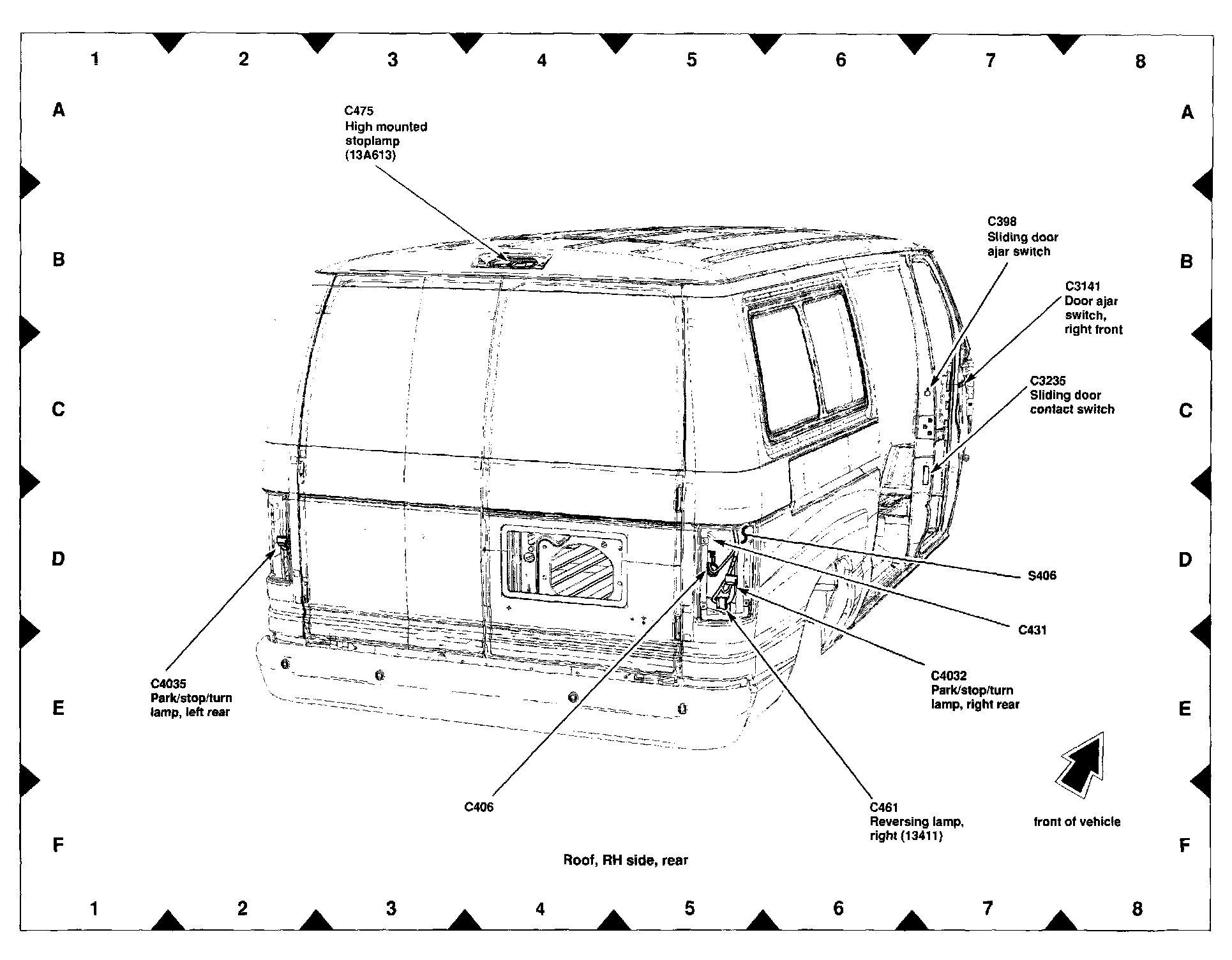

View 151-34 (Roof, RH Side Rear):
