Power Distribution Relay
>>
Locations
>>
Auxiliary Battery Relay
Auxiliary Battery Relay

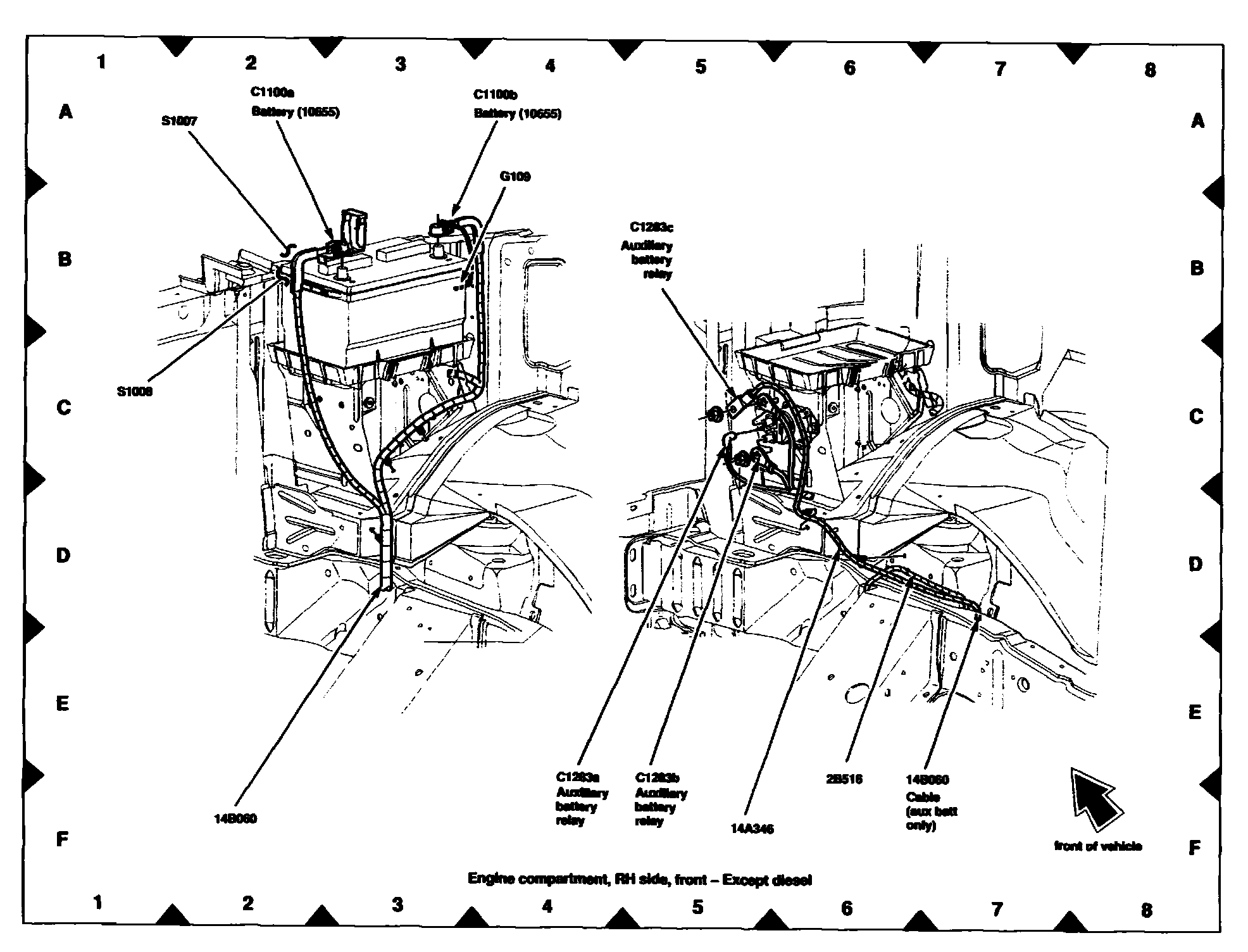

View 151-7 (Engine Compartment, RH Side, Front):
