Test D: Unusual Starter Noise

PINPOINT TEST D: UNUSUAL STARTER NOISE

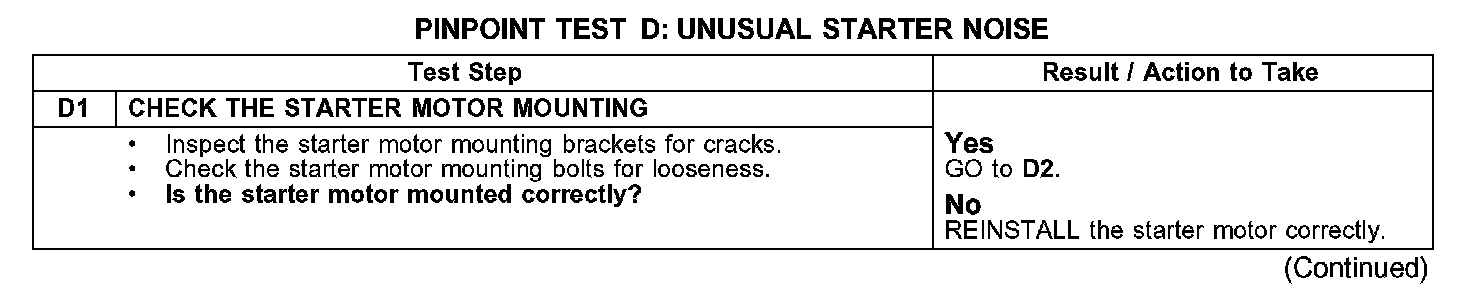

D1:

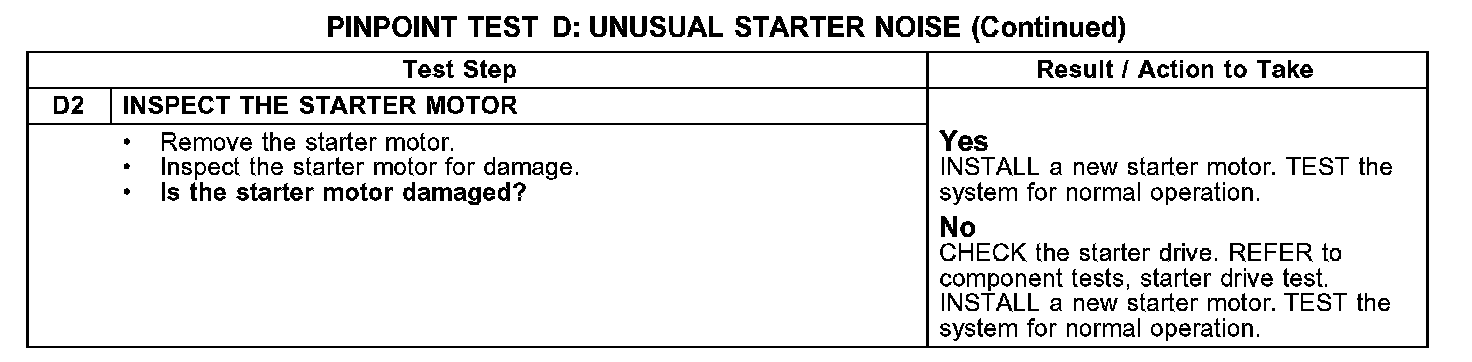

D2:

Possible Causes
- Starter motor mounting
- Starter motor mounting bolts tightening sequence
- Flexplate
- Starter motor drive
- Starter motor
