Seals, Rings and Gasket Locator

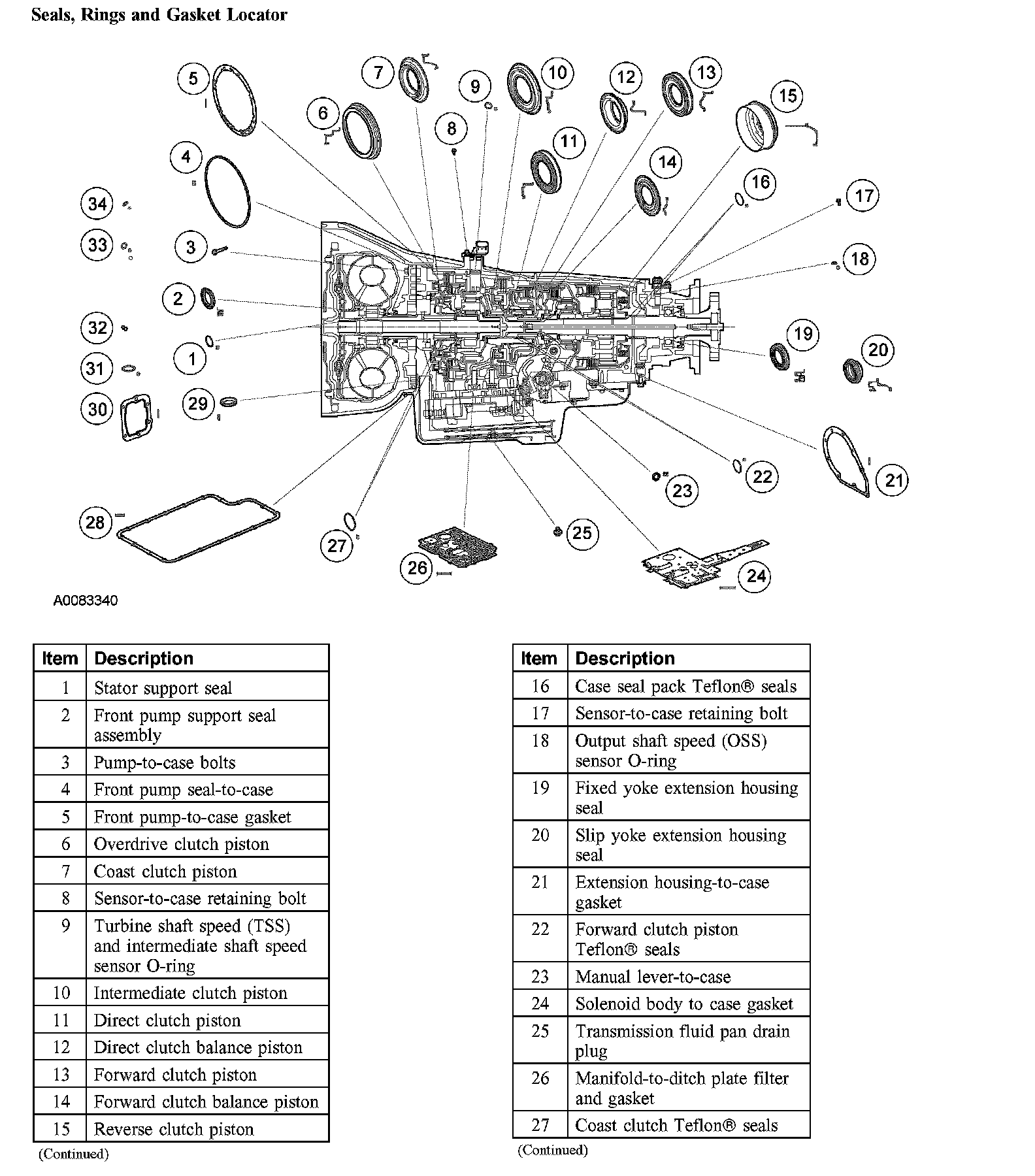

Seals, Rings and Gasket Locator (Part 1):



Seals, Rings and Gasket Locator (Part 2):
