Removal

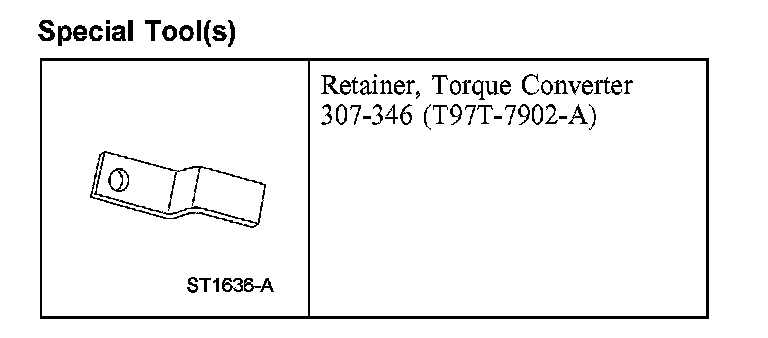

TransmissionSpecial Tool(s):
Removal
All vehicles
1. Disconnect the battery.
2. Remove the air cleaner air intake duct assembly.

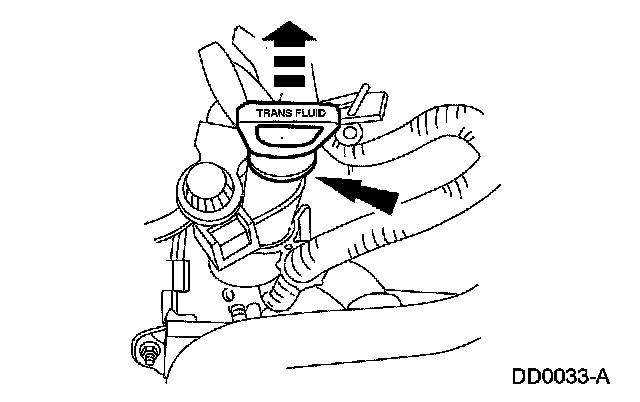

3. Remove the transmission fluid level indicator.
4. Remove the engine cover.
5. NOTE: Also refer to the 2 illustrations.

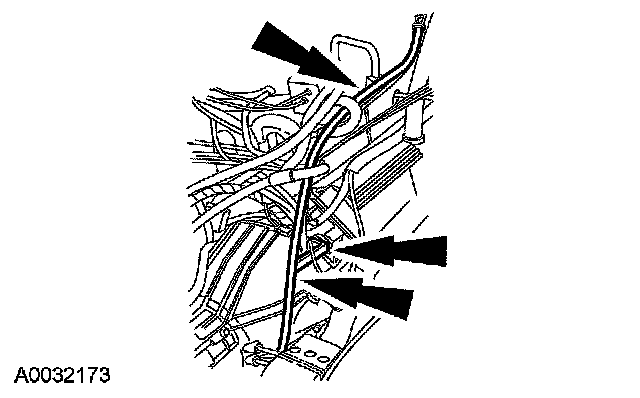

Remove the fluid filler tube.
^ Remove the bolt.

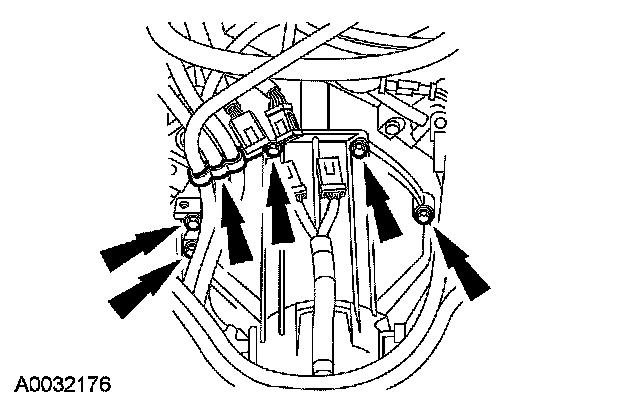

6. Disconnect the electrical harness connectors.
7. Remove the torque converter housing-to-engine retaining bolts. Position the fuel and electrical harness brackets aside.

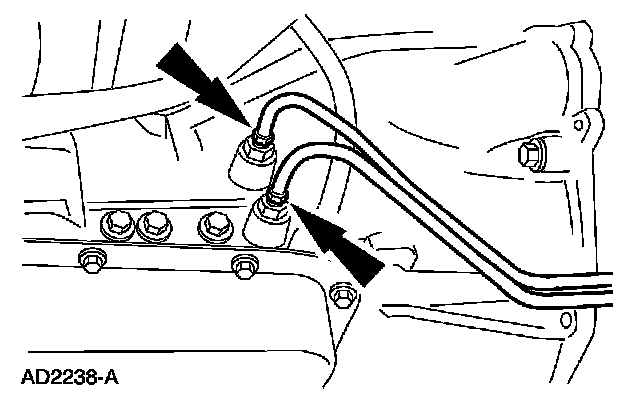

8. NOTE: The case fittings must be held in place to prevent them from moving.
Disconnect the fluid cooler tubes. Plug all fittings and position the tubes aside.
9. With the vehicle in NEUTRAL, position it on a hoist.

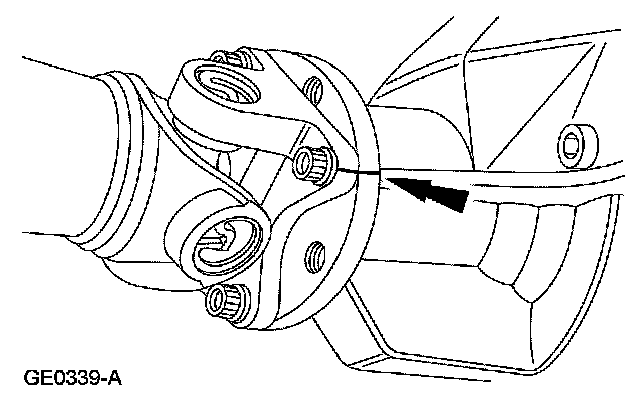

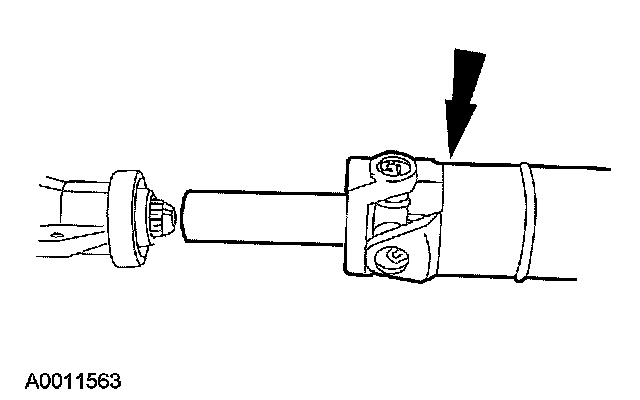

10. NOTE: The output shaft and driveshaft are a balanced assembly.
Mark the driveshaft flange and the rear pinion flange for correct alignment during assembly.

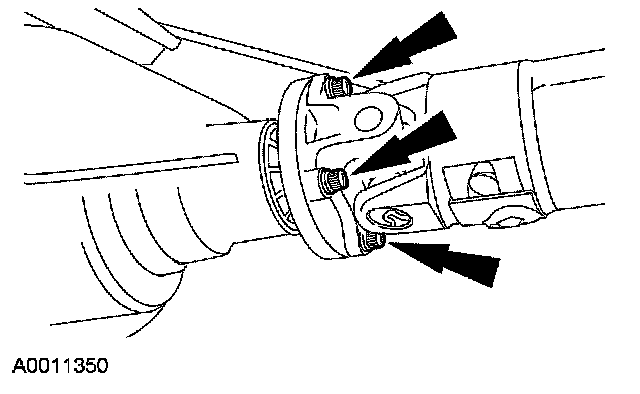

11. Remove the 4 bolts.
12. Remove the driveshaft.

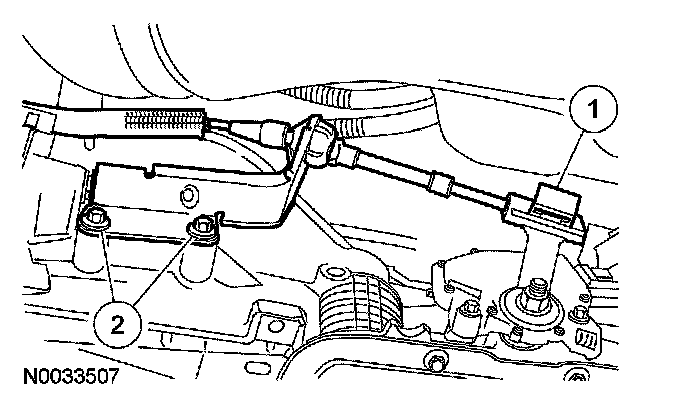

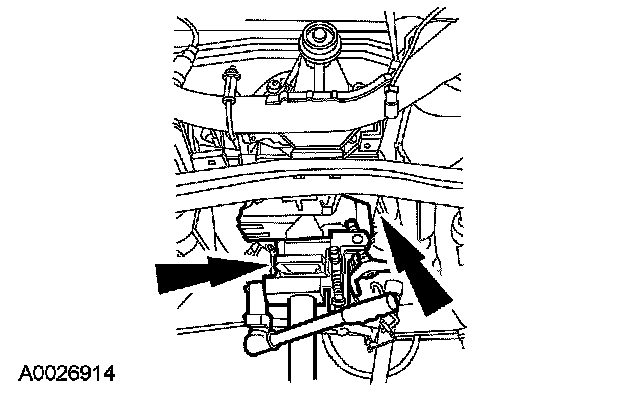

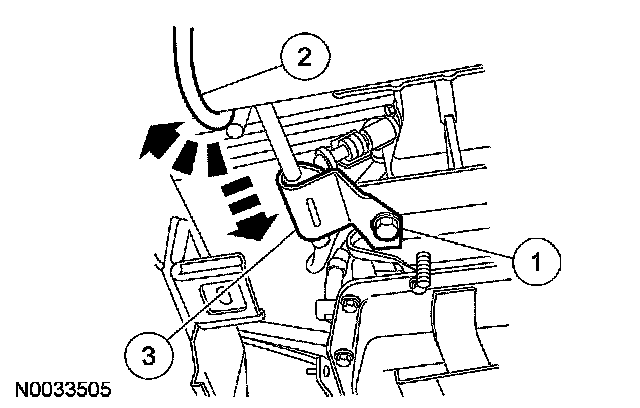

13. Remove the shift cable and bracket.
1 Disconnect the clip.
2 Remove the bolts.

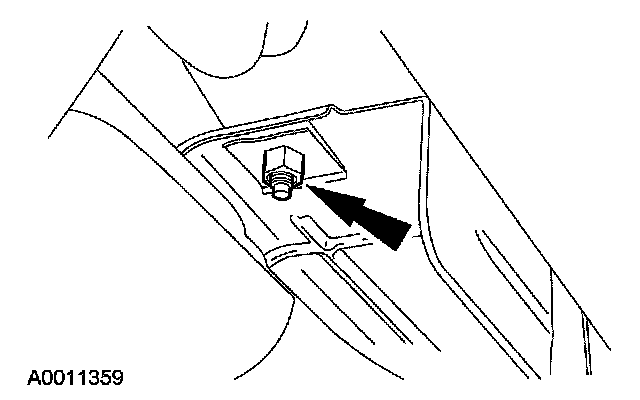

14. Remove the access plugs.
15. Remove the starter motor.
16. If so equipped, remove the fasteners and the front A/C deflector assembly.

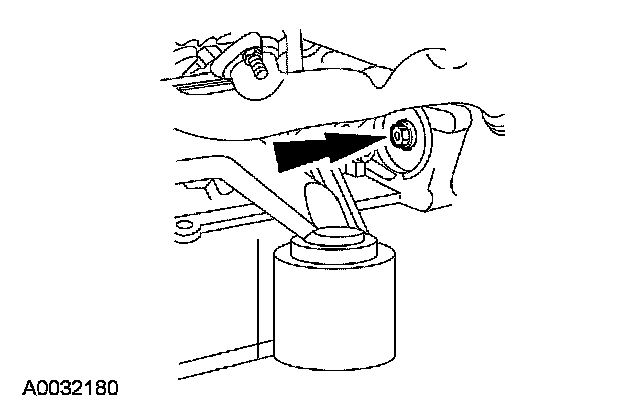

17. Remove and discard the 4 torque converter-to-flexplate retaining nuts.

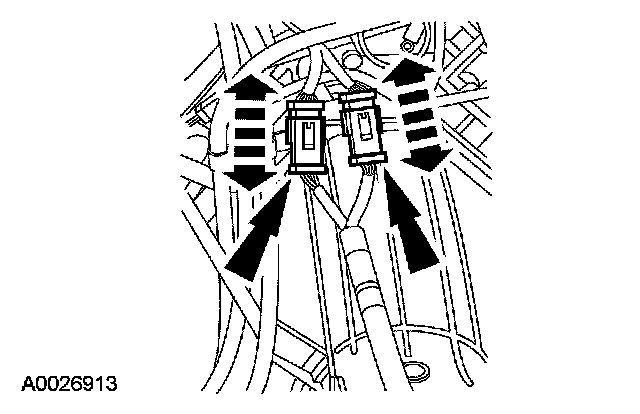

18. Disconnect the catalyst monitoring sensor harness connectors.
19. Remove the bolts.
5.4L engine

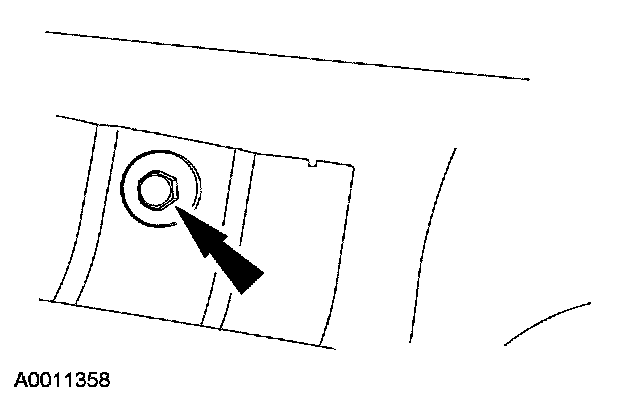

20. Remove the top bolt for the RH heat shield.
21. NOTE: The nut is welded to the heat shield.
Do not attempt to remove the nut.

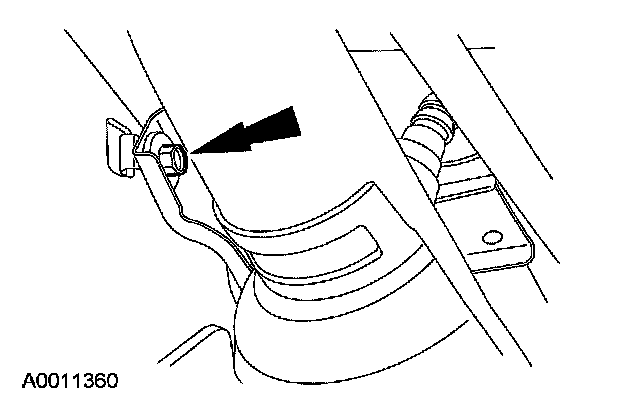

^ Remove the bolt for the RH heat shield.
22. Remove the bolt for the RH heat shield.
All vehicles
23. Secure the high lift transmission Jack to the transmission.

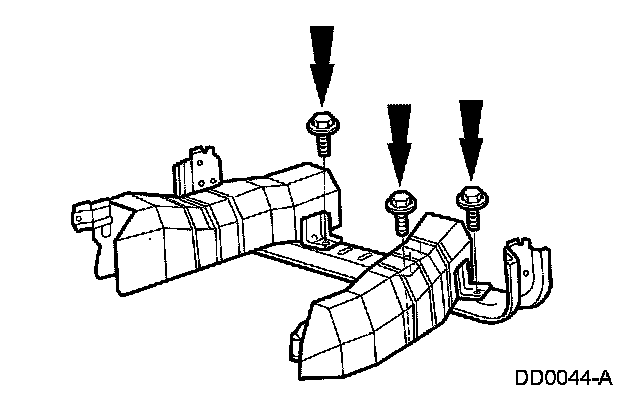

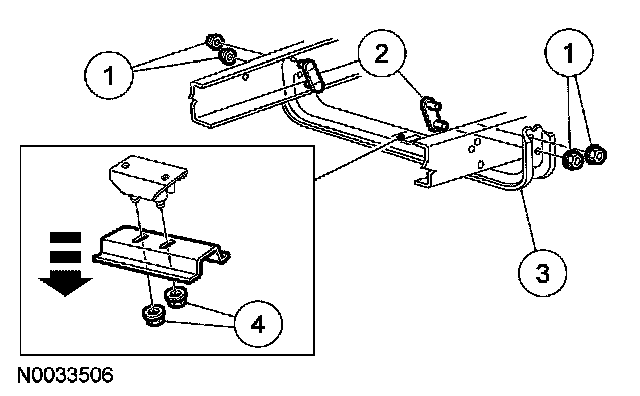

24. Remove the crossmember.
1 Remove the crossmember-to-frame retaining nuts.
2 Remove the stud brackets.
3 Support the transmission support crossmember.
4 Remove the transmission insulator and retainer-to-crossmember retaining nuts and the transmission support crossmember.
4.6L engines
25. Remove the clamp and hanger assembly.
1 Remove the bolt.
2 Loosen the clamp.
3 Remove the bracket and position the hanger aside.
All vehicles

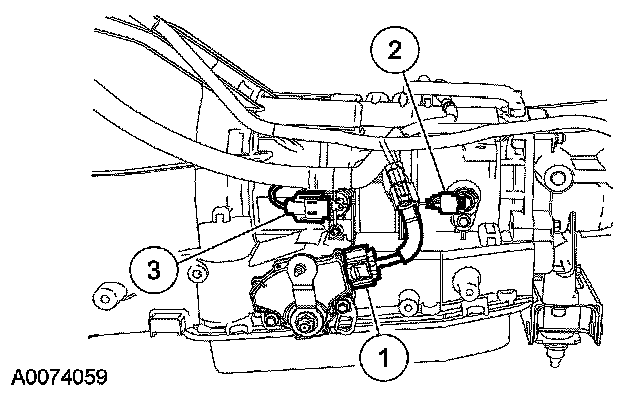

26. Disconnect the electrical connectors and remove the wire harness from the transmission.
1 Disconnect the digital TR sensor electrical connector.
2 Disconnect the OSS and TSS sensor electrical connectors.
3 Remove the catalyst monitor connector retainer from the stud.

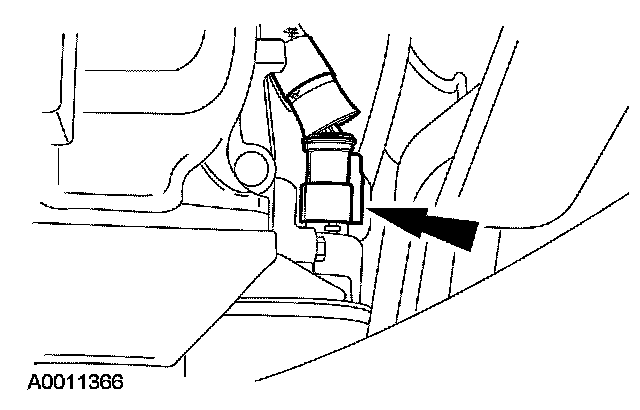

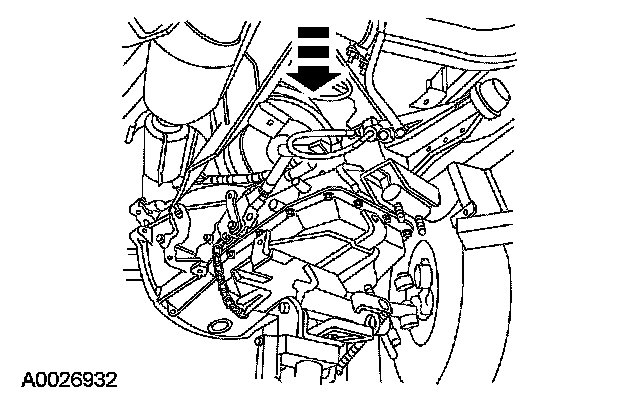

27. Disconnect the solenoid body connector.

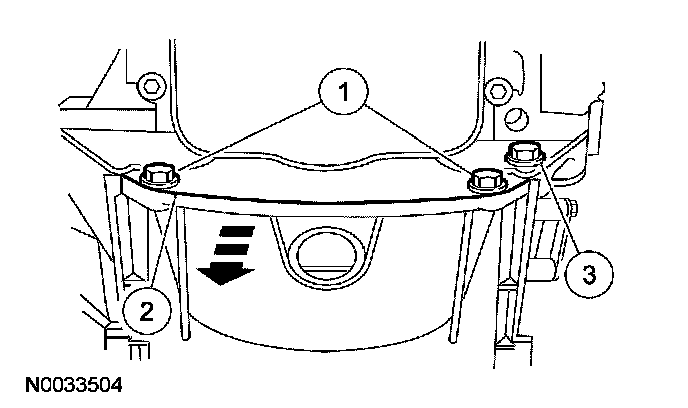

28. Remove the flexplate inspection plate.
1 Remove the bolts.
2 Remove the flexplate inspection plate.
3 Remove the bolt.

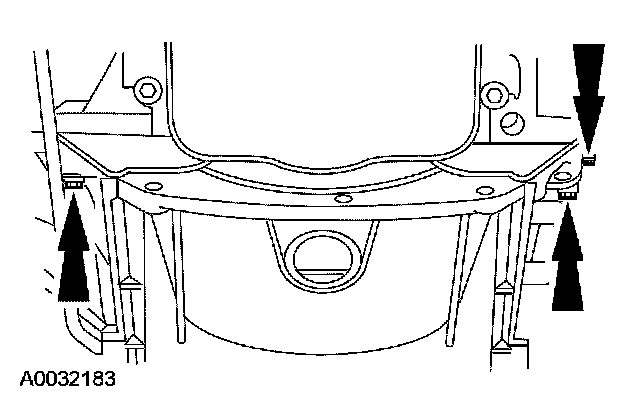

29. Remove the bolts.
30. Remove the transmission from the vehicle.
CAUTION: Watch for clearance between the transmission and the right side heat shield retaining bracket as well as other obstructions.
Separate and back the transmission away from the engine, positioning the extension housing above the exhaust crossover pipe.

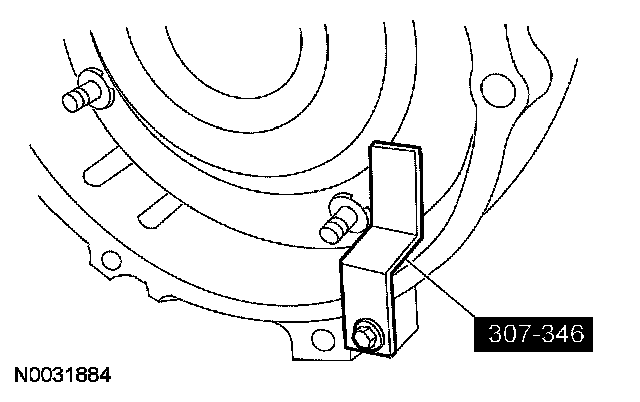

31. Install the special tool.
WARNING: The torque converter must be held firmly in its installed position.
CAUTION: Watch for clearance between the transmission and the engine.
Carefully tilt the front of the transmission downward.
CAUTION: Watch for clearance between the transmission and the exhaust crossover pipe.
Lower the transmission enough to clear the engine. Then, carefully pull the Jack with the transmission toward the front of the vehicle, lowering the transmission as required until it is clear of the exhaust crossover pipe.
Tilt the front of the transmission upward until level.
Remove the transmission with the Jack from under the vehicle.
