Part 2 of 2
Transmission Continued

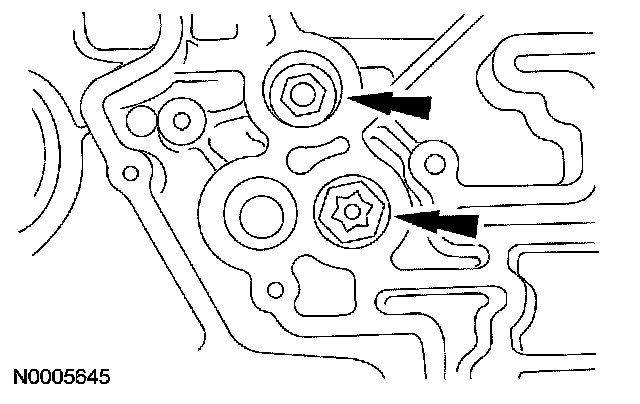

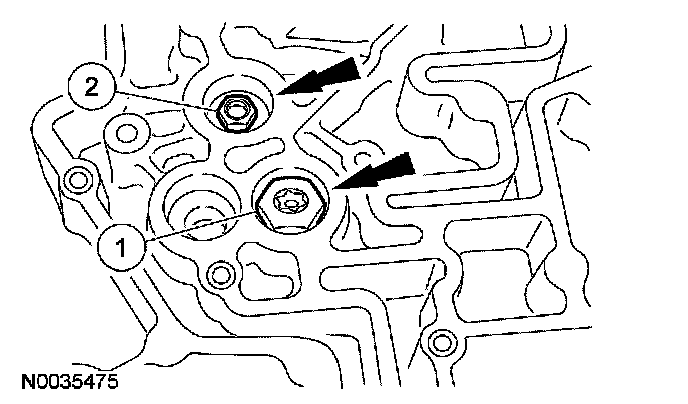

36. Loosely install the feed bolts.
1 Loosely install the Torx(R) head forward clutch feed bolt into the case toward the rear of the case.
2 Loosely install the hex head intermediate clutch feed bolt into the case toward the front of the case.
37. Using the special tool, install the center support snap ring.
^ The snap ring should be installed with the flat edge facing downward. The gap in the snap ring should be facing in the 6 o'clock position. Tap the snap ring securely into the case.
38. Tighten the feed bolts.
^ Tighten to 32 Nm (24 ft. lbs.).
39. Install the No. 5 thrust bearing onto the center support.

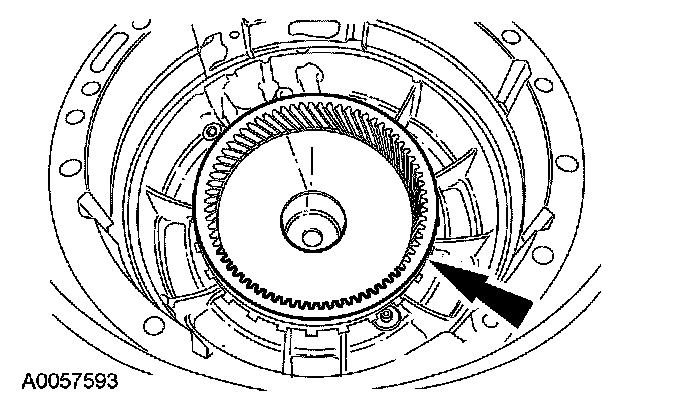

40. Install the center shaft and ring gear.
41. Install the No. 4 thrust bearing onto the center shaft.

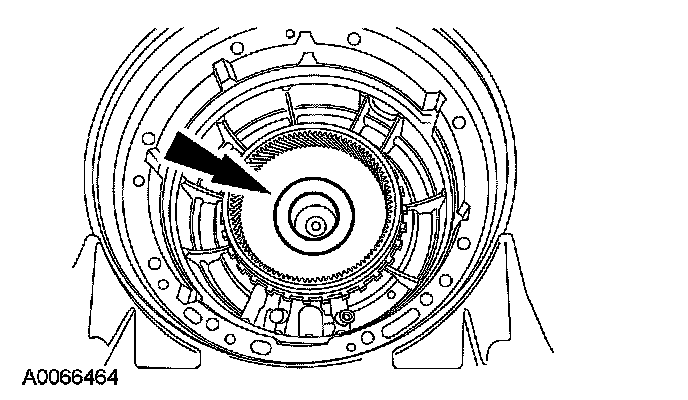

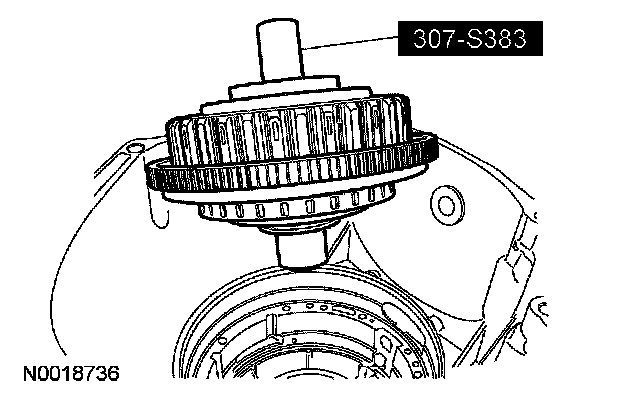

42. Using the special tool, install the coast clutch assembly and overdrive carrier.

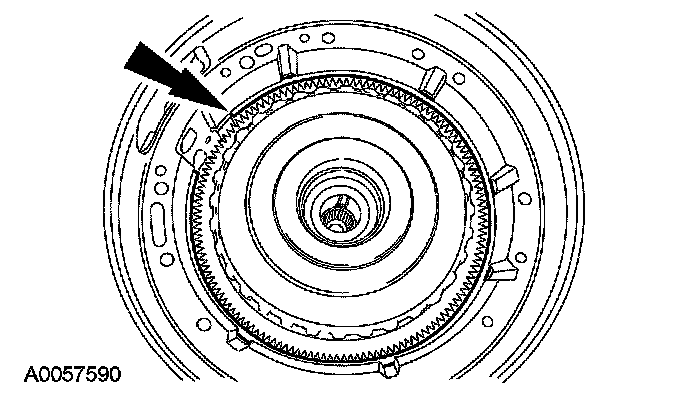

43. Install the overdrive clutch assembly snap ring with the gap in the 6 o'clock position.

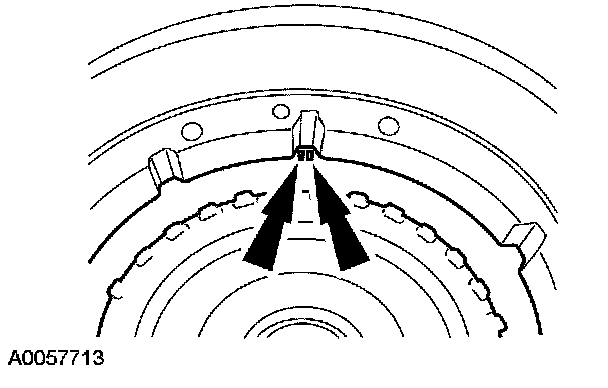

44. Install the overdrive pressure plate with the notches facing up.

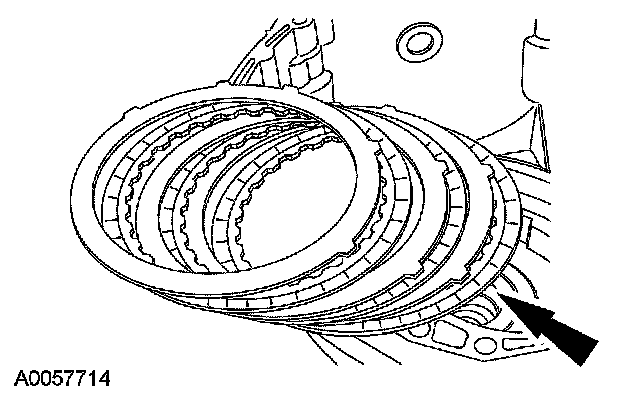

45. Install the overdrive clutch.
^ Start with a friction plate, alternating with a steel plate.

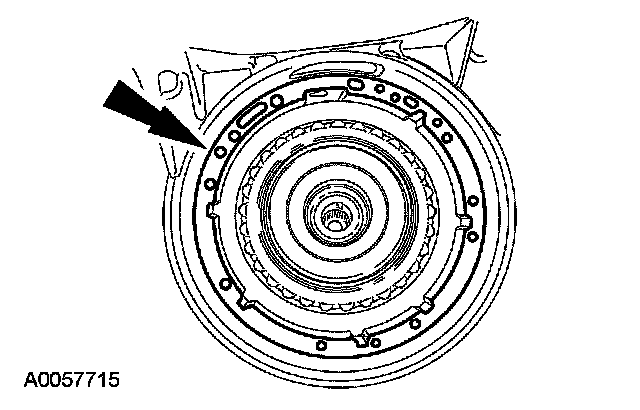

46. Install a new pump gasket.
47. Install the No. 2 thrust bearing.

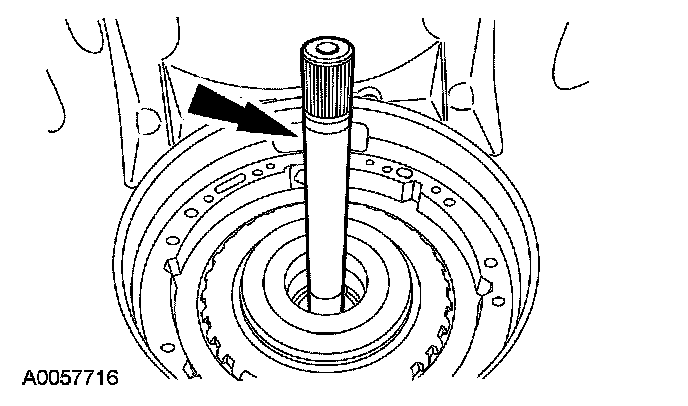

48. Install the input shaft into the case.

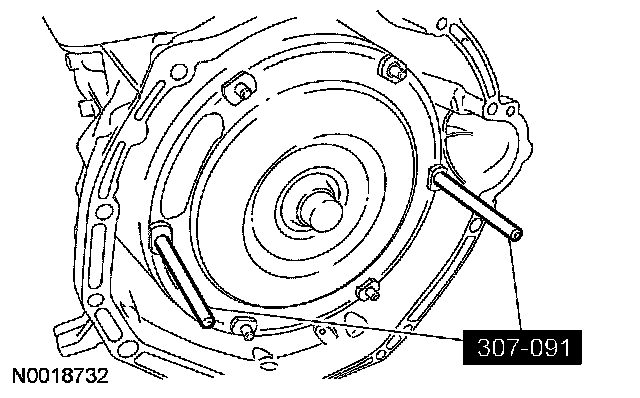

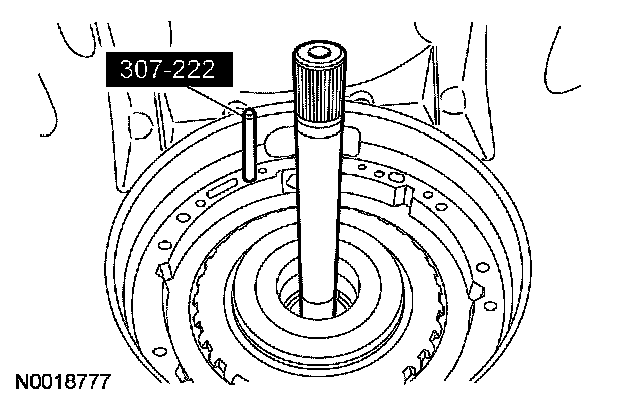

49. NOTE: Alignment pins are used in case holes located at the 5 o'clock and 11 o'clock positions.

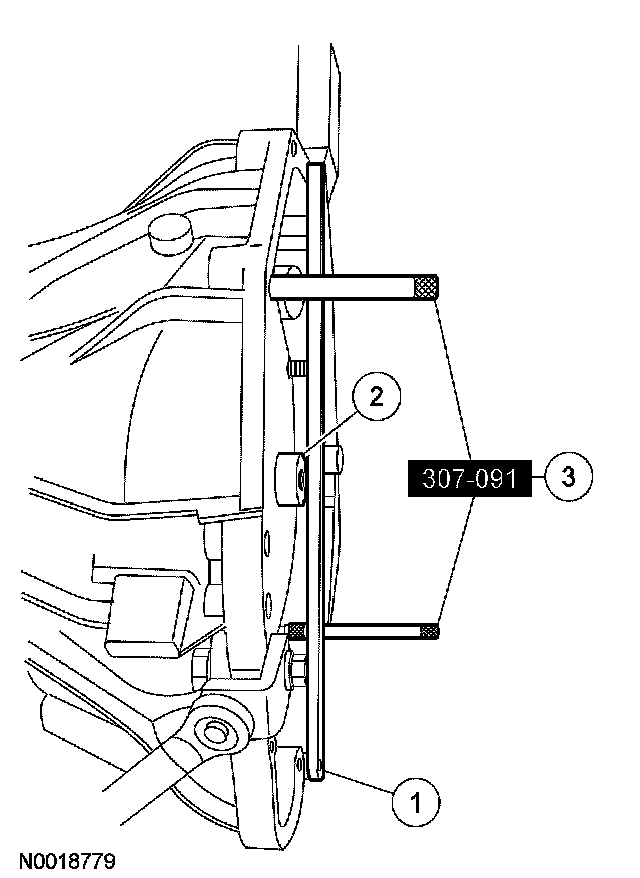

Install the special tools into the case in order to install the pump.
50. Check to make sure that the No. 1 thrust washer is installed on the pump stator.

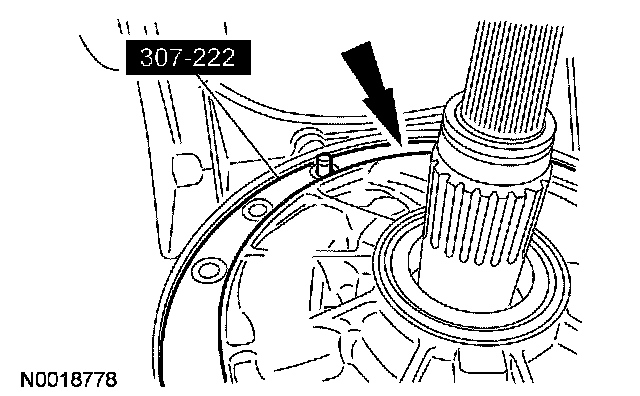

51. NOTE: Pump-to-case alignment pins are used in case holes located at the 11 o'clock and 5 o'clock positions.
Using the special tools, install the pump assembly.
52. Install new pump body-to-case retaining bolts.
^ Tighten to 27 Nm (20 ft. lbs.).

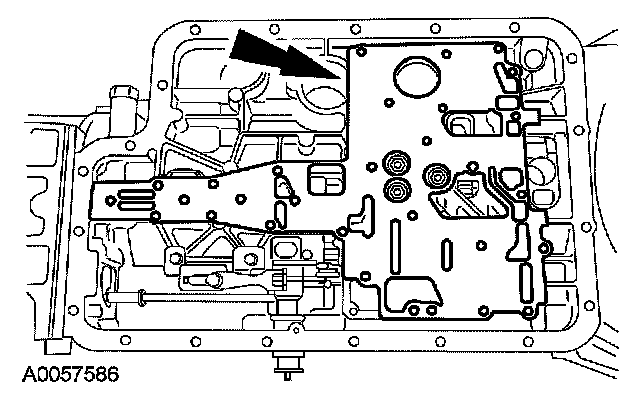

53. Install a new main control body gasket.

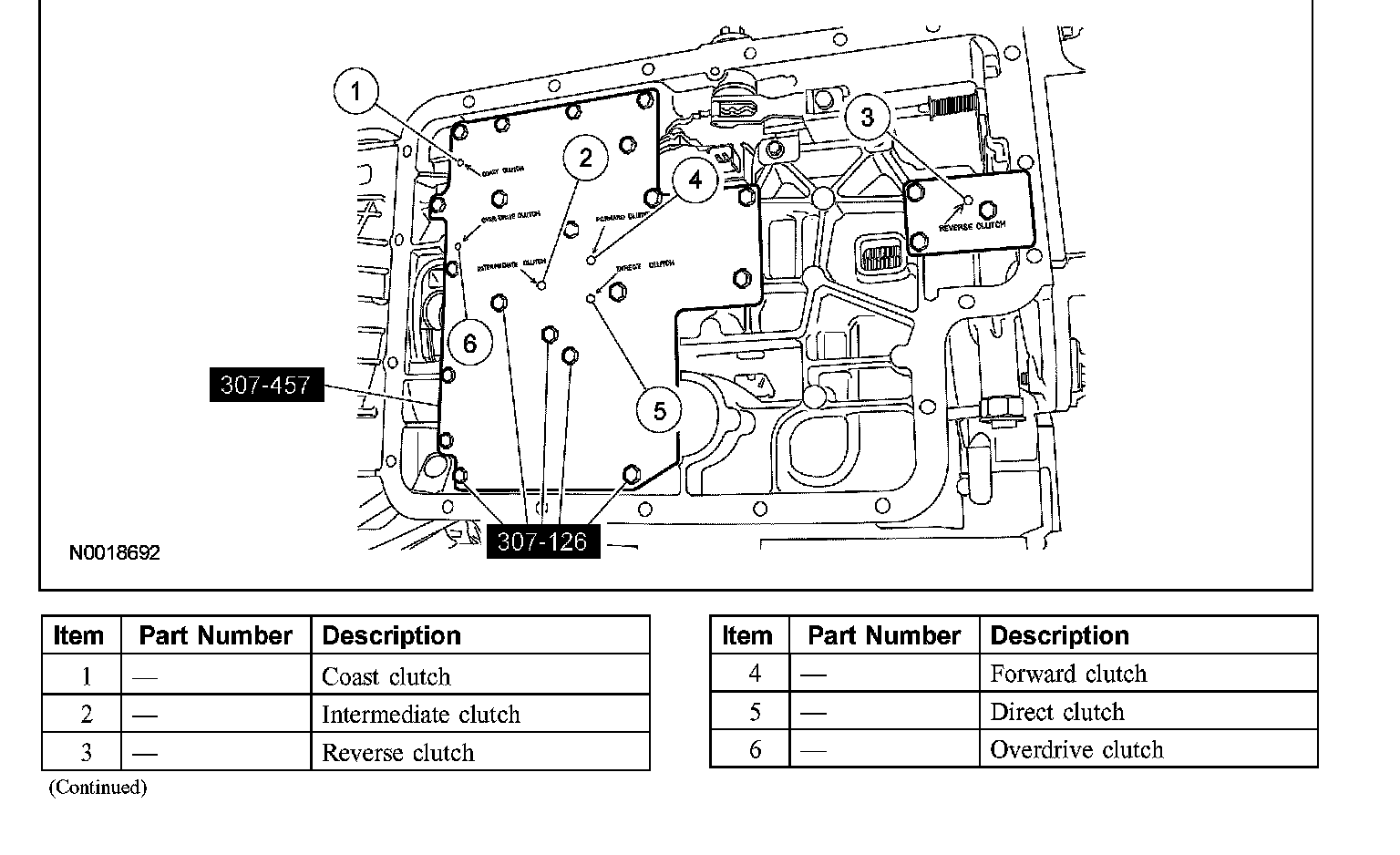

54. Using the special tools, check the function of each clutch. Apply 20 psi (137.9 kPa) of air to each port.

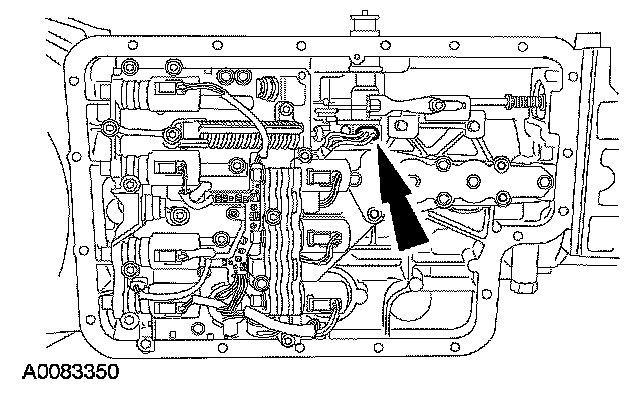

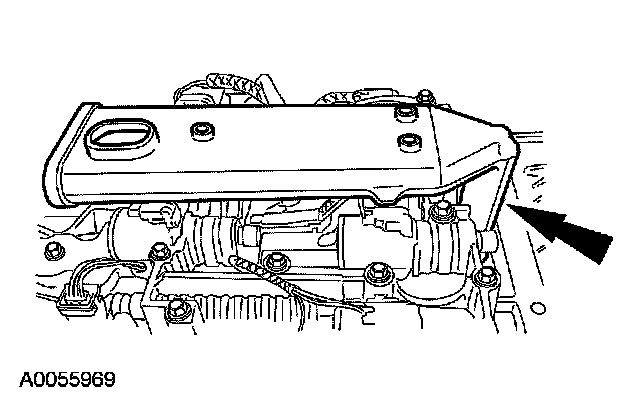

55. Using the special tools, install the solenoid body and loosely install the bolts.
^ While installing the solenoid body, align the manual valve.

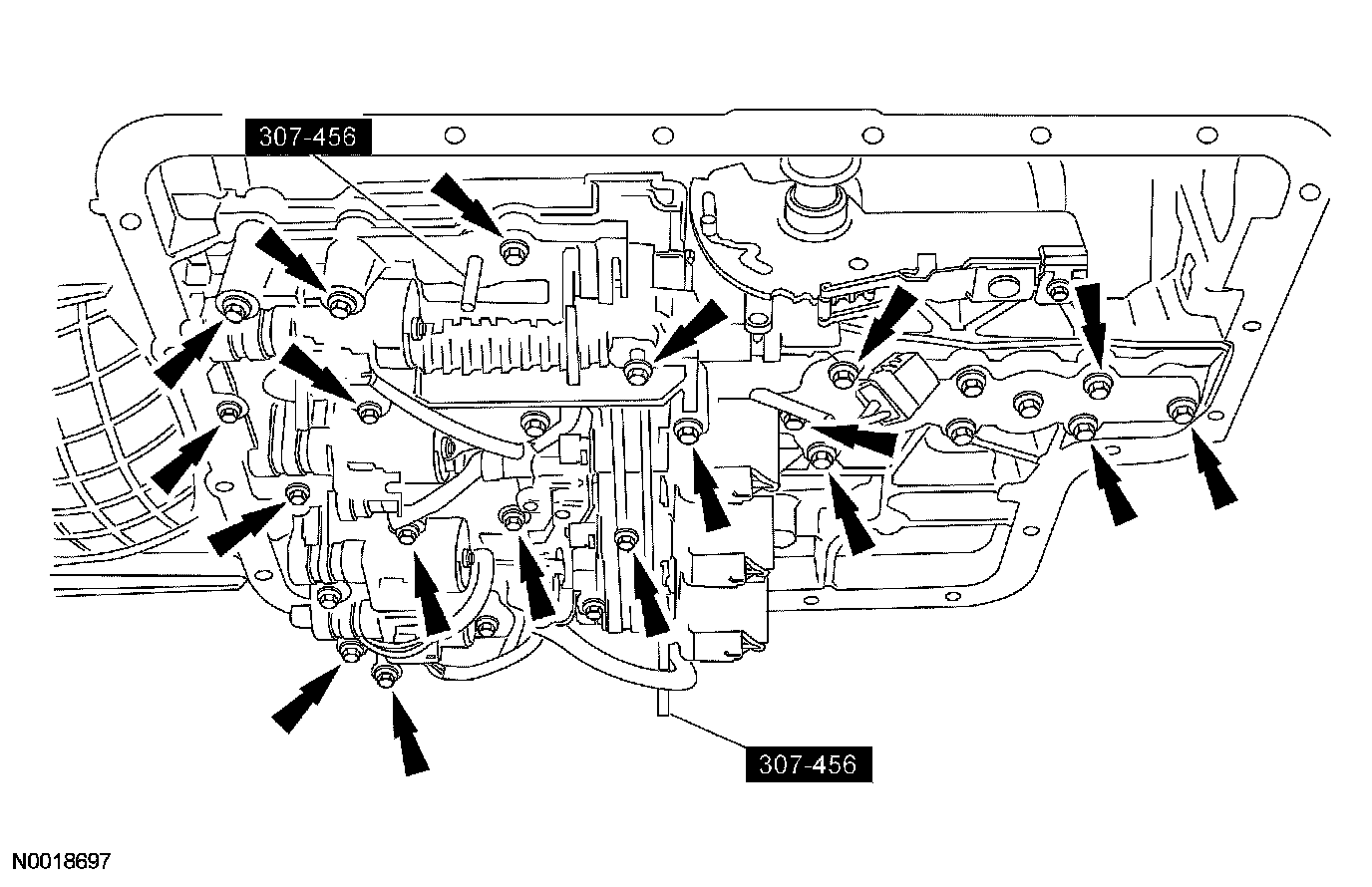

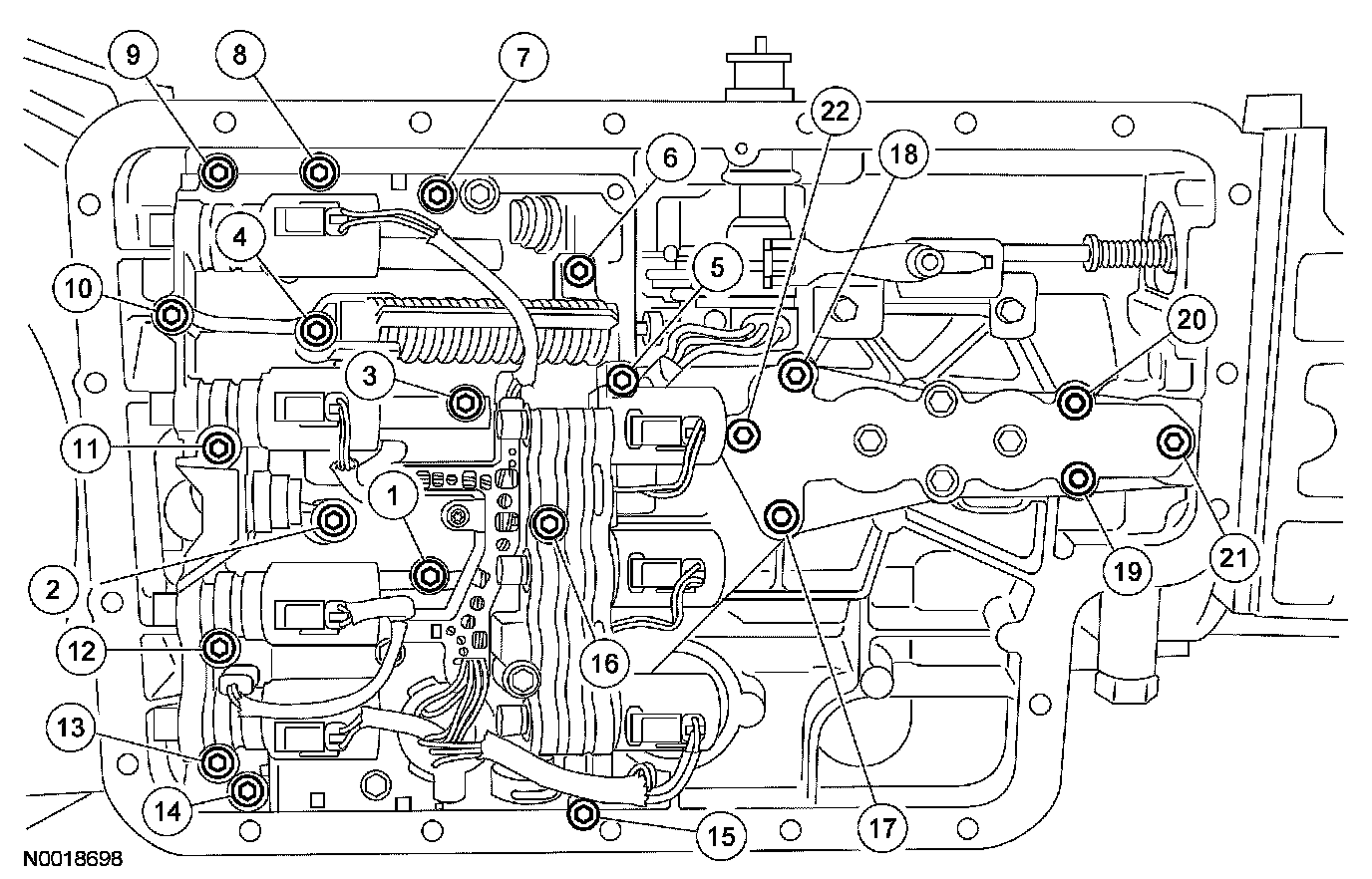

56. Tighten all the bolts in the sequence shown.
^ Tighten to 13 Nm (10 ft. lbs.).

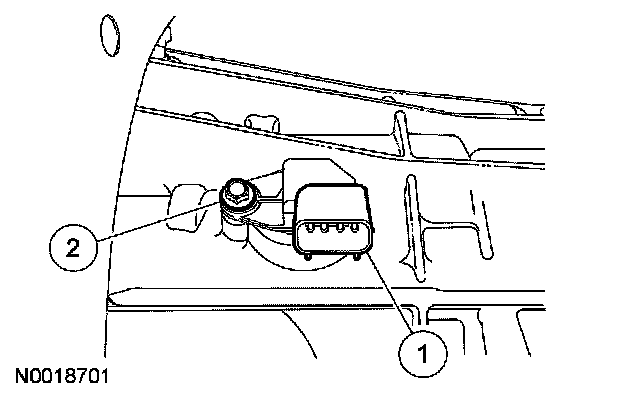

57. Connect the TR sensor connector.
58. NOTE: Prior to installing the fluid filter, make sure that the old seal is not stuck in the case.
Install a new transmission fluid filter.

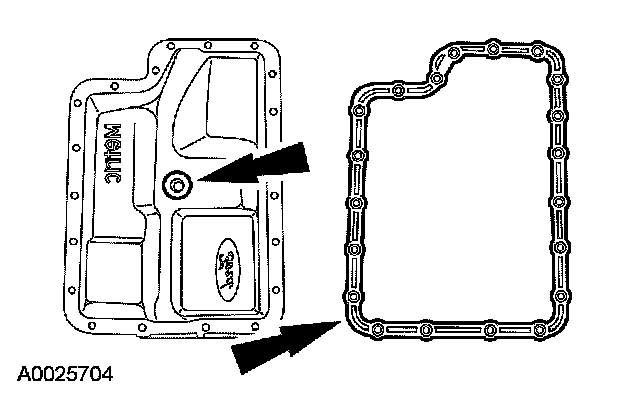

59. NOTE: Reuse the fluid pan gasket unless it is damaged.

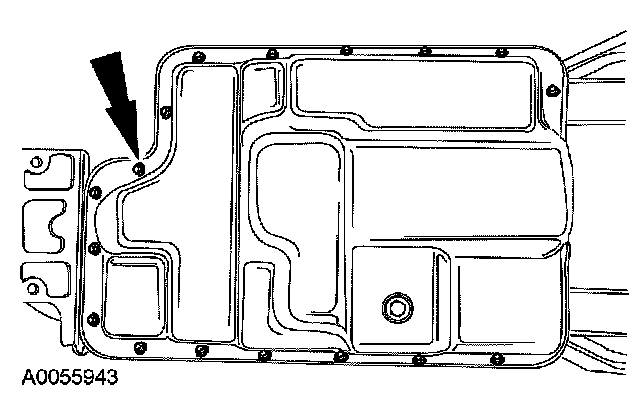

Install the transmission fluid pan gasket to the fluid pan. Make sure the magnet is positioned over the dimple in the fluid pan.
60. Install the transmission fluid pan.
^ Tighten to 15 Nm (11 ft. lbs.).
61. Install the intermediate shaft and turbine shaft speed (TSS) sensor.
1 Install the TSS sensor.
2 Install the TSS sensor bolt.
^ Tighten to 9 Nm (80 inch lbs.).

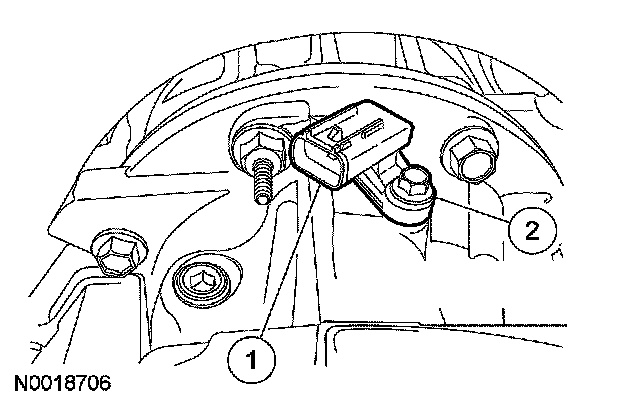

62. Install the output shaft speed (OSS) sensor.
1 Install the OSS sensor.
2 Install the OSS sensor bolt.
^ Tighten to 9 Nm (80 inch lbs.).

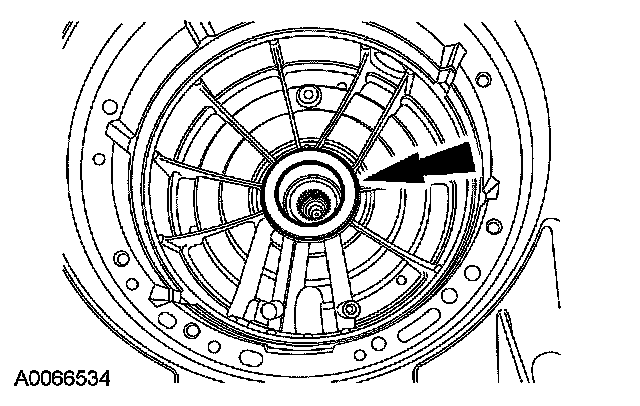

63. CAUTION: Do not damage the fluid pump gear O-ring seal when installing the torque converter.
CAUTION: Make sure the converter hub is fully engaged in the front pump support and gear and rotates freely. Do not damage the hub seal.
CAUTION: If the torque converter slides out, the hub seal may be damaged.

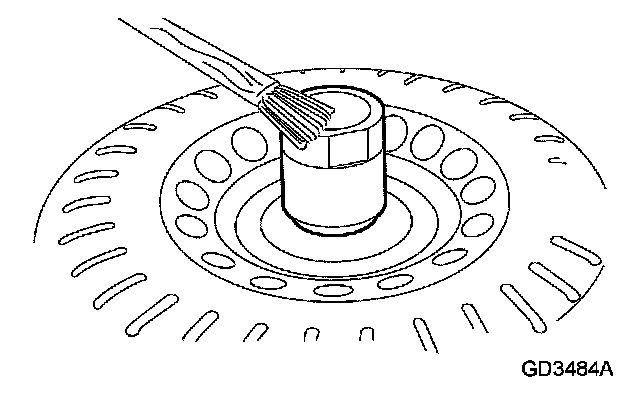

Lubricate the converter hub with clean automatic transmission fluid.
64. CAUTION: Use care when installing the torque converter to avoid damage to the front pump stator support seal.
NOTE: Check the converter crankshaft pilot for nicks or damaged surfaces that can cause interference when installing the transmission to the engine. Check the converter impeller hub for nicks or sharp edges that can damage the pump seal.
Using the special tools, install the torque converter. Push and rotate the converter onto the front pump assembly until it bottoms out.
65. Check the seating of the torque converter.
1 Place the straightedge across the converter housing.
2 Make sure there is a gap between the converter pilot face and the straightedge.
3 Remove the special tools.

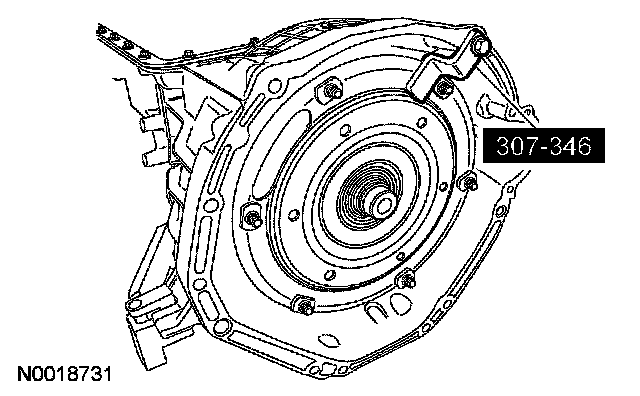

66. Use the special tool to hold the torque converter in place when installing the transmission.
