Selector Lever Cable and Bracket 4R70E,4R75E

Selector Lever Cable and Bracket 4R70E,4R75E

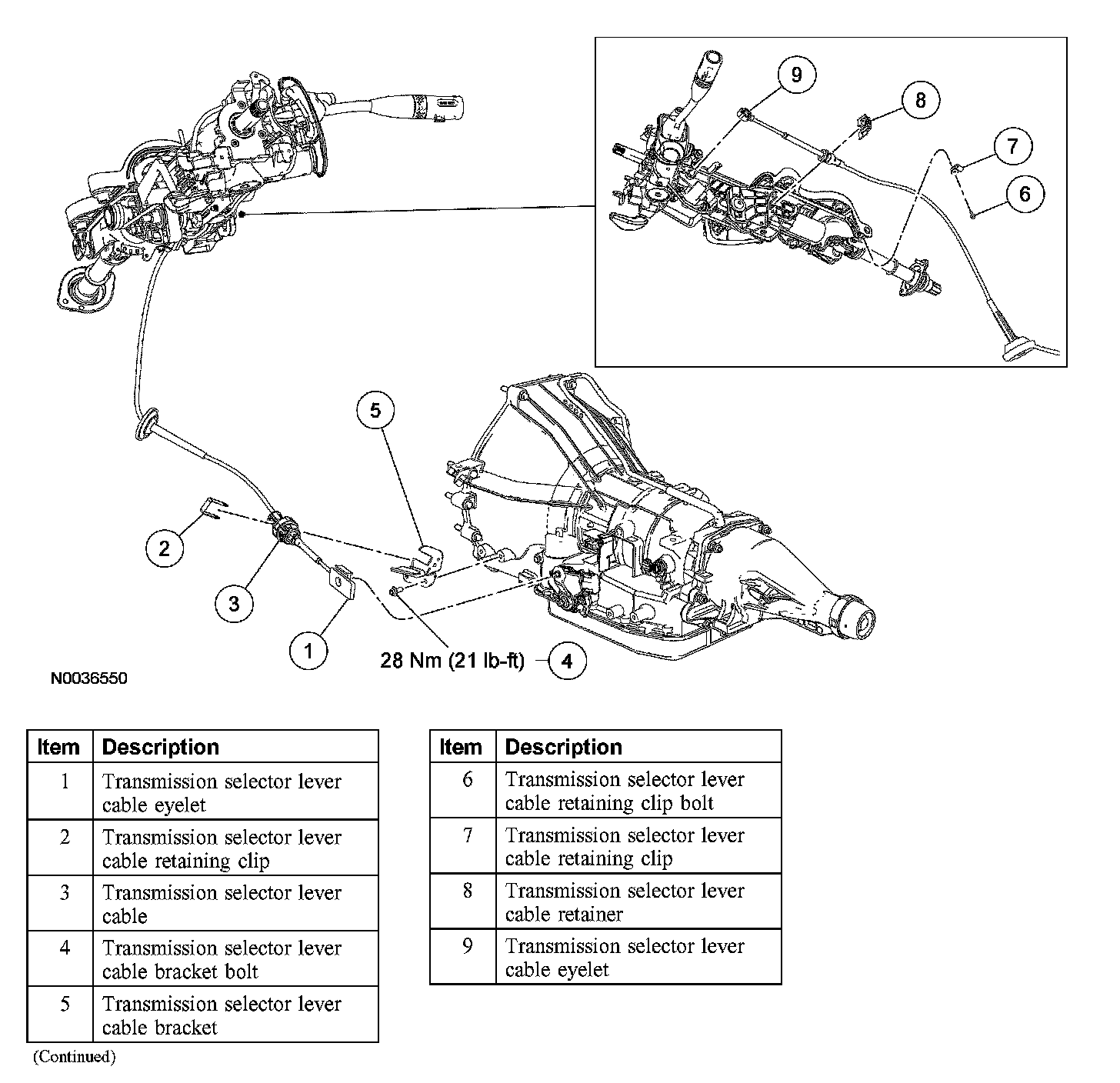

Removal and Installation

NOTE: To prevent shift cable damage, do not apply force to the transmission shift cable assembly between the steering column shift tube bracket and the steering column bracket.

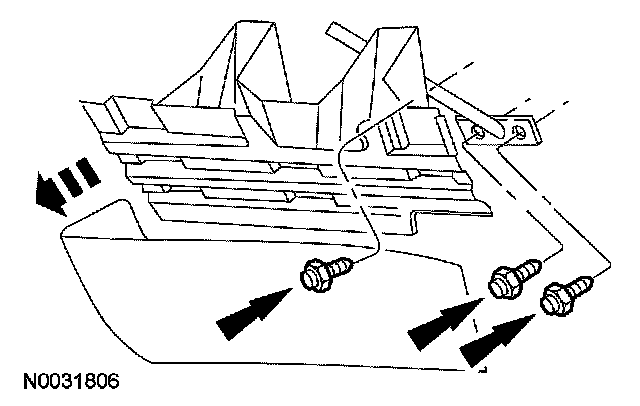

1. Remove the instrument panel steering column cover, the driver side knee brace and the instrument panel steering column opening cover reinforcement.
^ To install, tighten to 9 Nm (80 inch lbs.).





2. Disconnect the shift cable.
1 Disconnect the shift cable from the steering column shift tube lever.
2 Carefully lift the locking tab and disconnect the shift cable from the steering column bracket.
3. Push the rubber grommet and the transmission shift cable through the bulkhead.
4. With the vehicle in NEUTRAL, position it on a hoist.





5. NOTE: To prevent shift cable damage, do not apply force to the shift cable between the transmission manual control lever and the shift cable bracket.

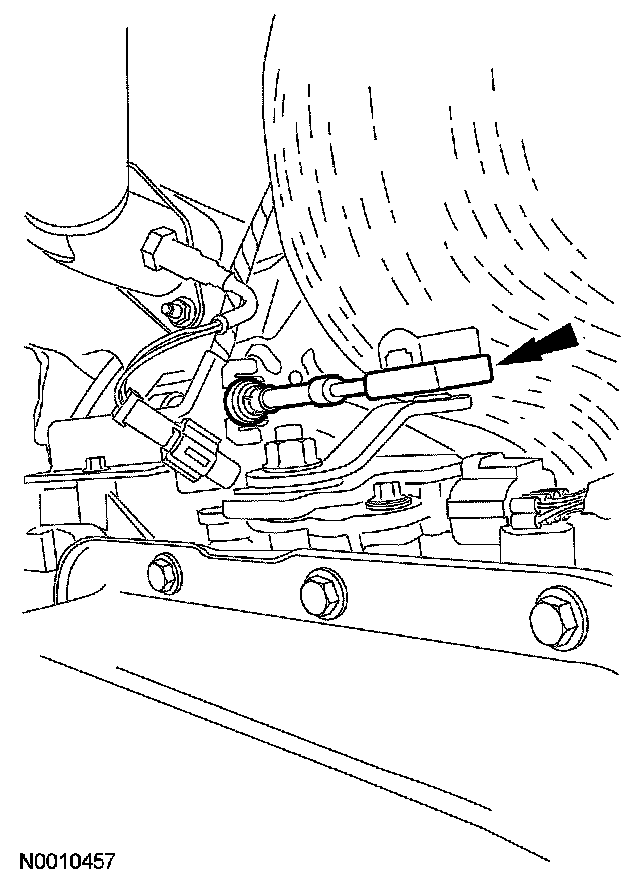

Disconnect the cable at the manual control lever.

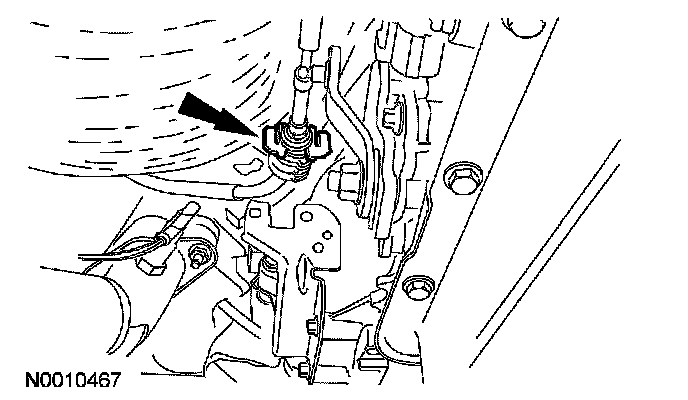

6. Remove the locking tab and shift cable from the bracket.
^ Discard the locking tab.





7. Remove the shift cable bracket (all except vehicles equipped with 4.2L engine).

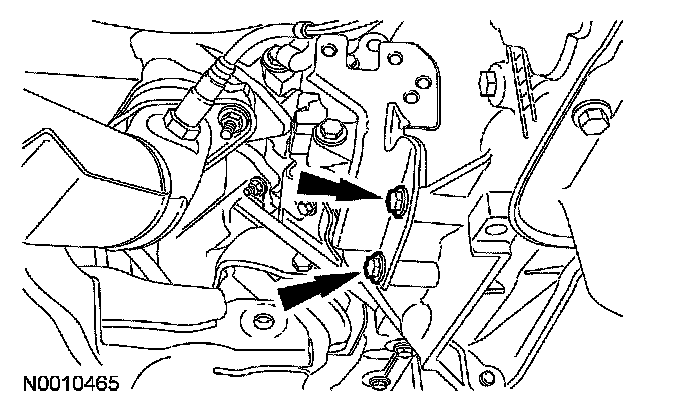

^ Remove the bolts.
^ To install, tighten to 28 Nm (21 ft. lbs.).
^ Remove the shift cable bracket.
8. To install, reverse the removal procedure.
^ Adjust the shift cable.
