Test E: PC-A (Line Pressure) Solenoid

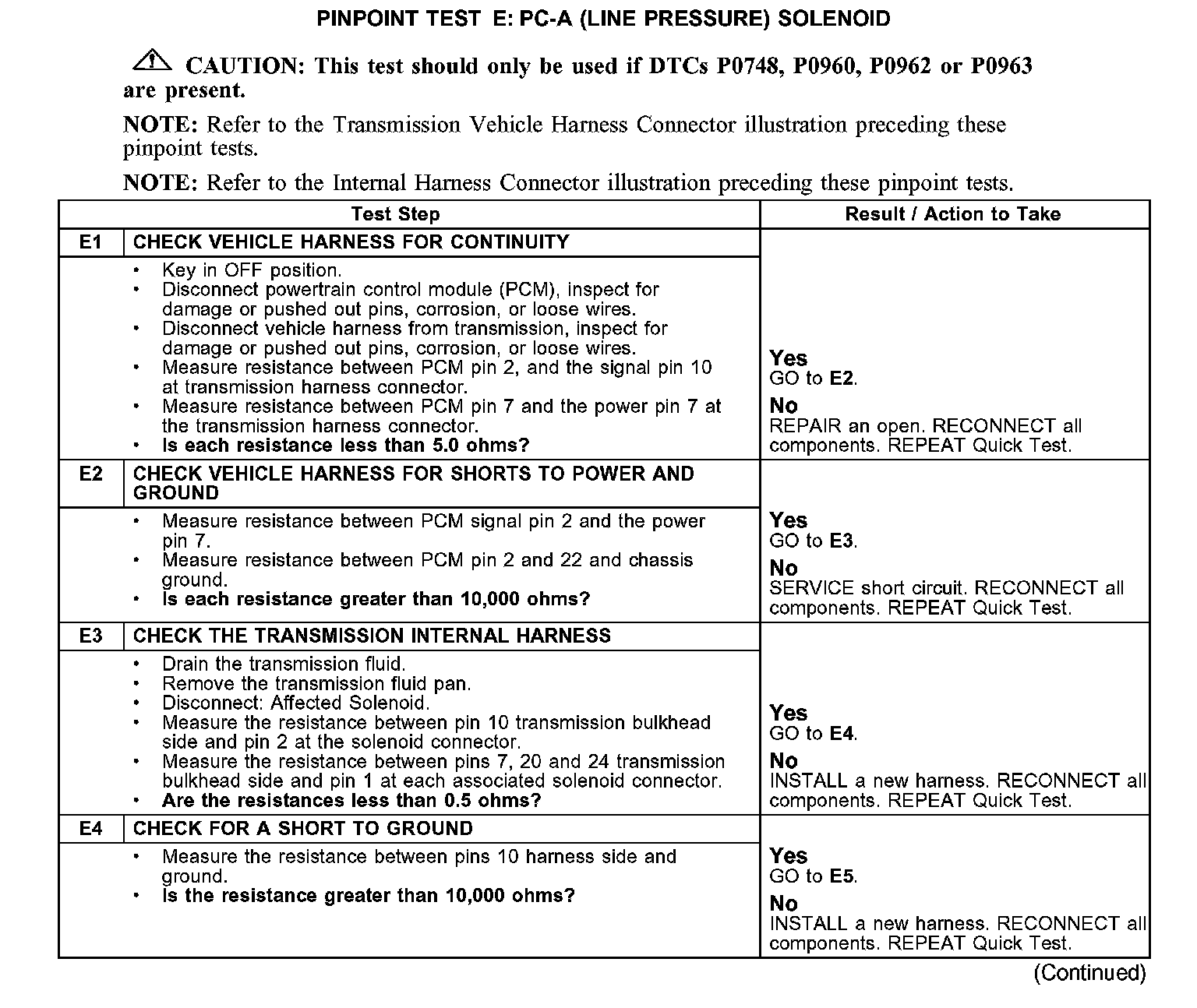

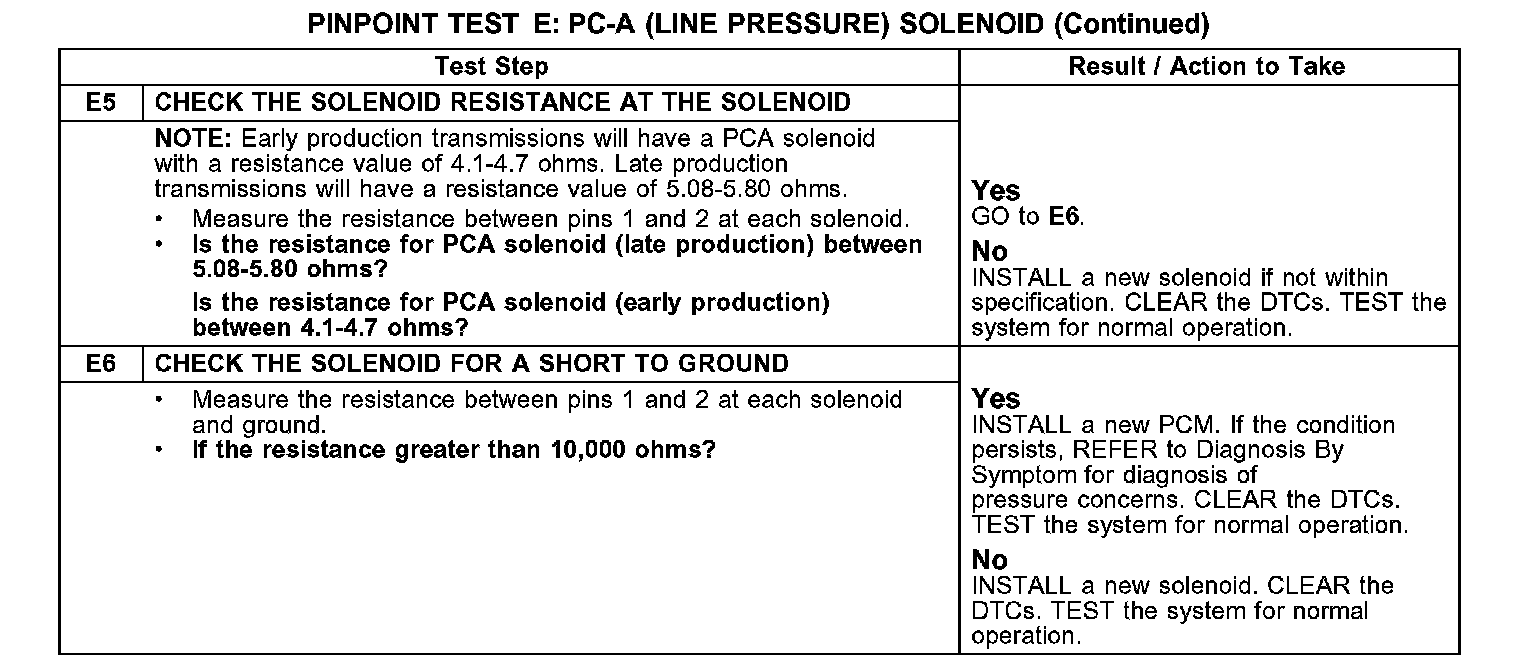

PINPOINT TEST E: PC-A (LINE PRESSURE) SOLENOIDE1-E4:
E5-E6:
CAUTION: This test should only be used if DTCs P0748, P0960, P0962 or P0963 are present.
NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests. Transmission Connector Layouts
NOTE: Refer to the Internal Harness Connector illustration preceding these pinpoint tests. Transmission Connector Layouts
