Climate Control

REGISTER - DRIVER AND PASSENGER SIDE

Removal and Installation

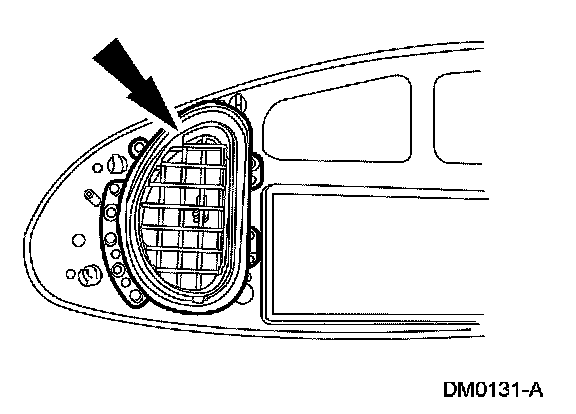

1. Use a small screwdriver to release the 2 side tabs inside the register.
2. Grasp the center knob and remove the register.
3. To install, reverse the removal procedure.

REGISTER - CENTER

Removal
1. Remove the instrument cluster finish panel.
2. Remove the center finish panel.







3. CAUTION: Use care not to damage the center finish panel.

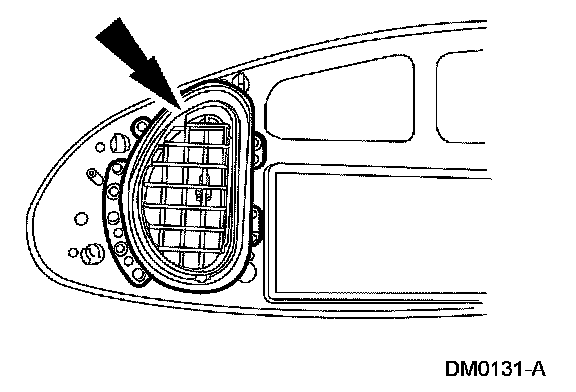

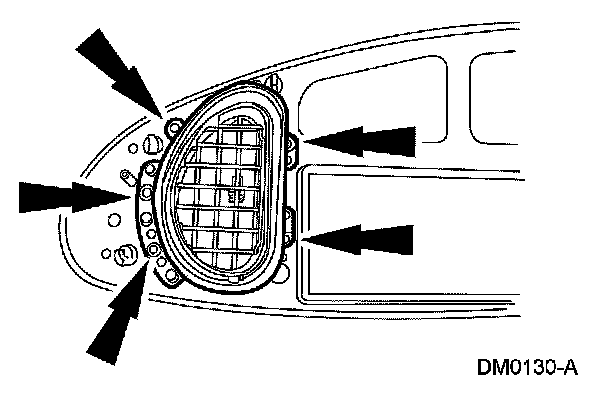

Drill out the heat stakes on the register and remove the register.







4. Remove the louver assembly.

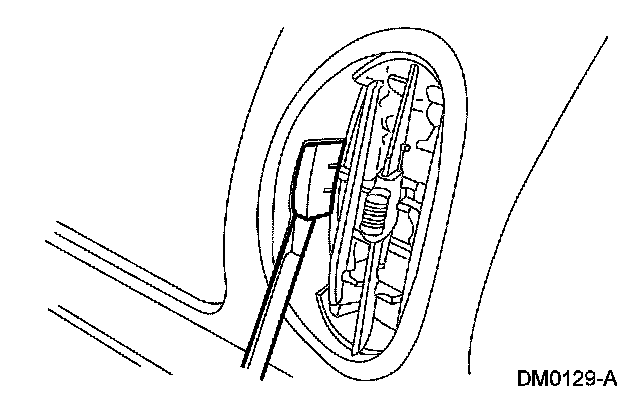

- Use a screwdriver to pry out the louver assembly.

Installation







1. Install the louver assembly.
2. Install the register.







3. CAUTION: Use care when melting the heat stakes not to melt, warp, or damage the center finish panel.

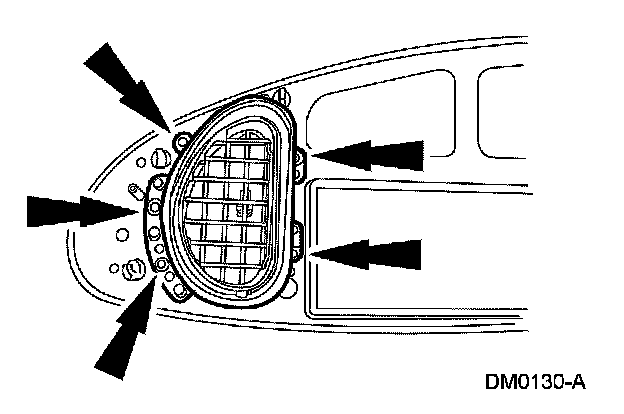

Use a soldering iron to melt the heat stakes.

4. Install the center finish panel.
5. Install the instrument cluster finish panel.
