Test G: The Illuminated Entry Is Inoperative When Using The Remote Transmitter

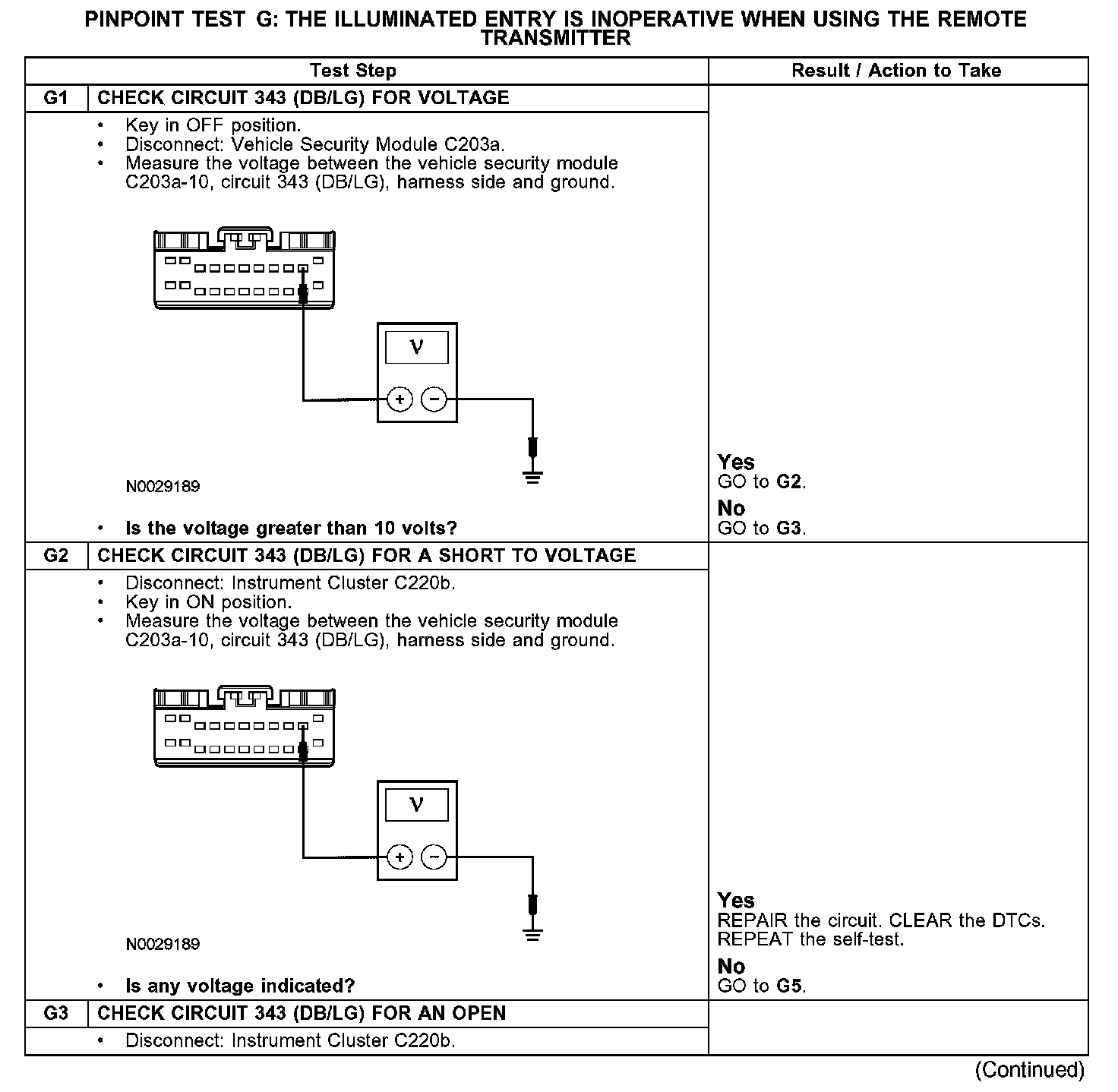

PINPOINT TEST G: THE ILLUMINATED ENTRY IS INOPERATIVE WHEN USING THE REMOTE TRANSMITTER

G1-G3:

G3-G5:

Normal Operation
The illuminated entry feature is activated by the vehicle security module and the instrument cluster. The vehicle security module provides a ground on circuit 343 (DB/LG) to alert the instrument cluster to illuminate the interior lamps.

Possible Causes
- Circuit 343 (DB/LG) open or short to voltage
- Instrument cluster
- Vehicle security module
