Front Fender: Service and Repair

FENDER - EXPEDITION







Exploded View

Removal and Installation

NOTE: Left side shown, right side similar.

1. Remove the front fender splash shield.

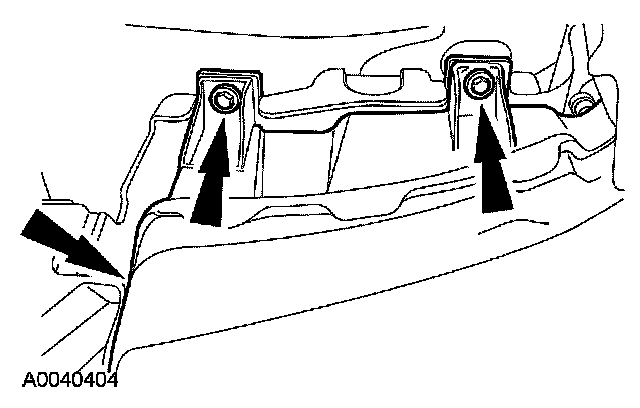

2. Remove the 2 front fender-to-front bumper cover bolts.
- To install, tighten to 8 Nm (71 lb-in).

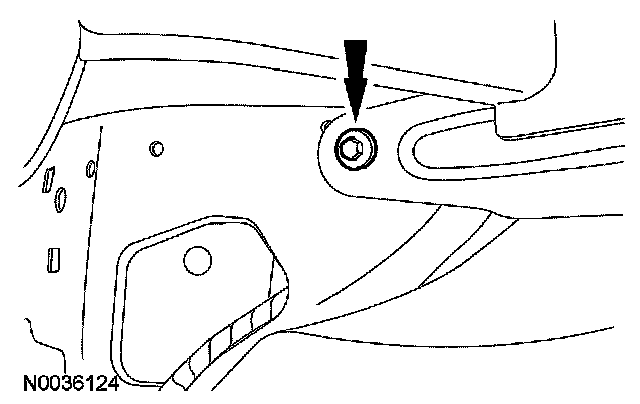

3. Remove the front fender-to-radiator support bolt.
- To install, tighten to 12 Nm (9 lb-ft).

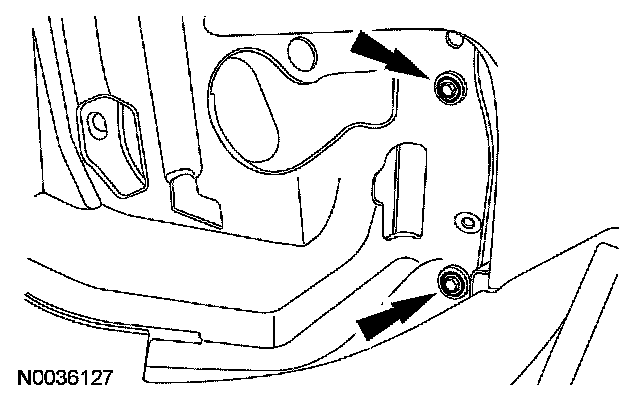

4. Remove the 2 front fender lower bolts.
- To install, tighten to 12 Nm (9 lb-ft).

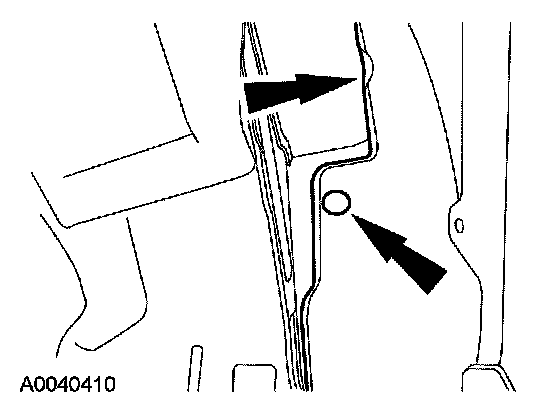

5. Remove the foam insulator.
- Remove the pin-type retainer.

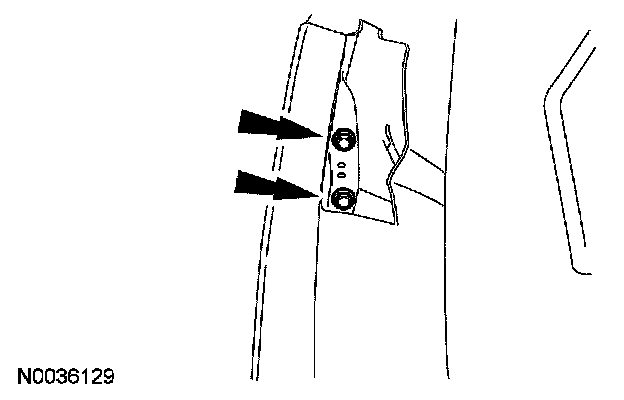

6. Remove the 2 front fender inner bolts.
- To install, tighten to 12 Nm (9 lb-ft).

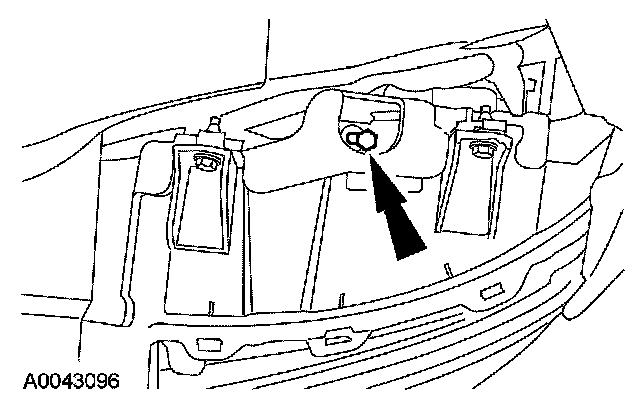

7. Loosen the headlamp retaining bolt.







8. Remove the headlamp.
- Remove the bolts and disconnect the electrical connectors.







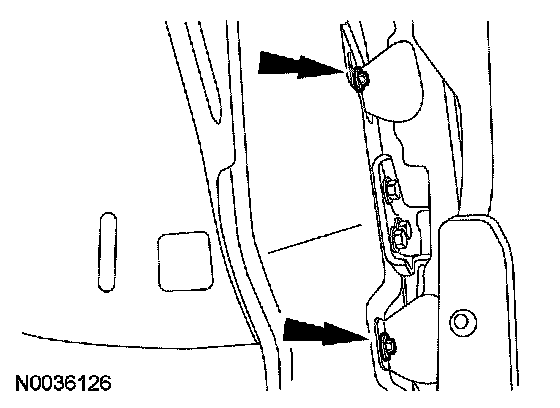

9. Remove the 2 front fender front bolts.
- To install, tighten to 8 Nm (71 lb-in).

10. Remove the cowl panel grille.







11. Remove the front fender.
1 Remove the 4 bolts.
2 Remove the front fender.
- To install, tighten to 12 Nm (9 lb-ft).

12. To install, reverse the removal procedure.
