Blower Motor Resistor: Service and Repair

AUXILIARY BLOWER MOTOR RESISTOR

Removal and Installation

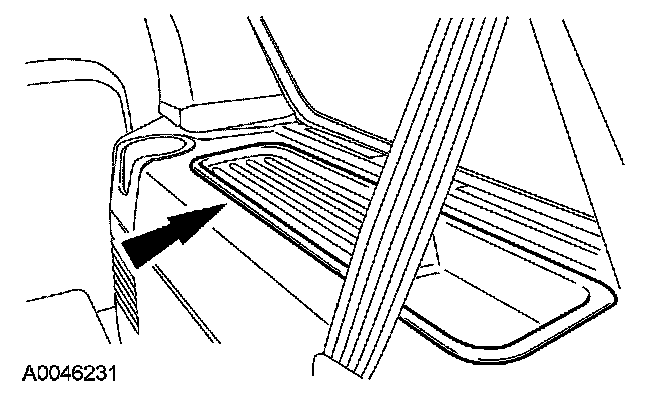

1. Remove the RH quarter trim panel access panel.

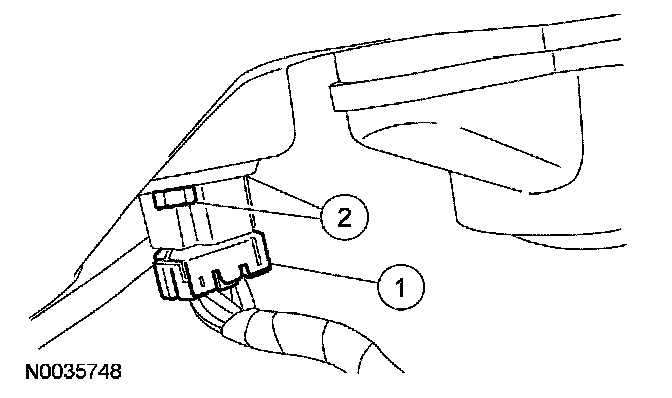

2. Remove the blower motor resistor.
1 Disconnect the blower motor resistor electrical connector.
2 Remove the 2 blower motor resistor screws and the blower motor resistor.

3. To install, reverse the removal procedure.
