Rear Door Window Regulator: Service and Repair

WINDOW REGULATOR - REAR DOOR






Removal and Installation
1. Remove the rear door trim panel.

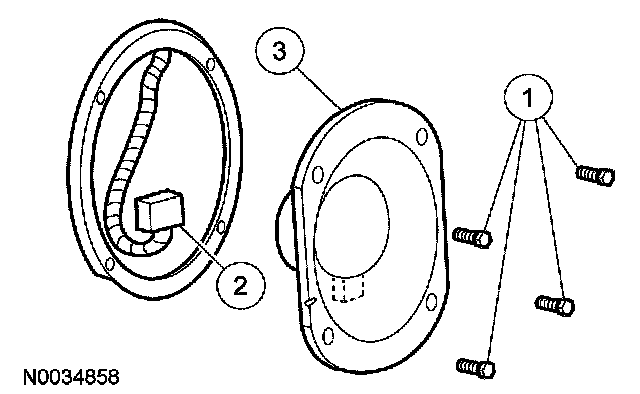

2. Remove the rear door speaker.
1 Remove the screws.
2 Disconnect the electrical connector.
3 Remove the speaker.

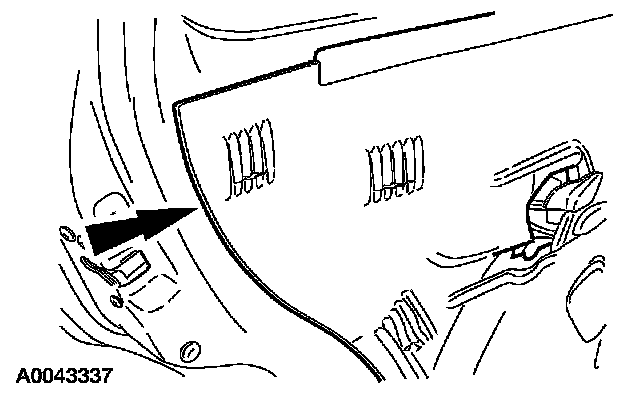

3. Remove the rear door weathershield.
4. Connect the window control switch.

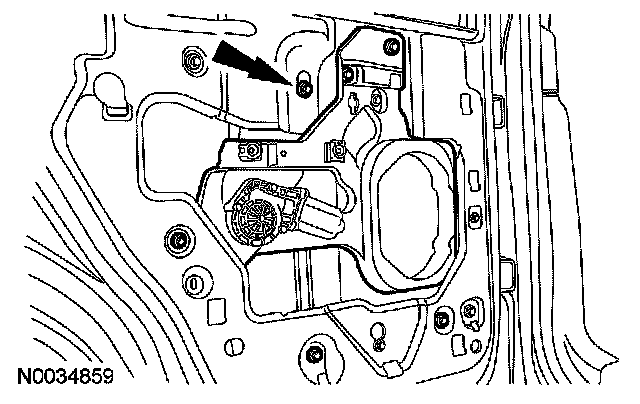

5. Lower the window glass to access the 2 window glass-to-regulator bolts.
6. Disconnect the window control switch.






7. Remove the window glass-to-regulator bolts and rear door window glass.
- To install, tighten to 11 Nm (8 lb-ft).

8. NOTE: Secure the rear window glass in the full UP position.

Secure the rear window glass with tape to the front door frame.

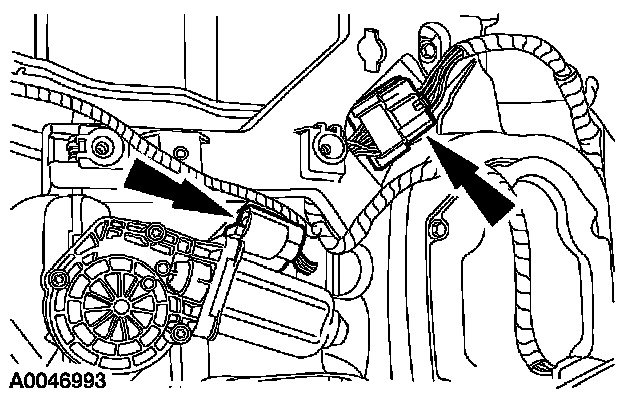

9. Disconnect the rear door window regulator electrical connectors.






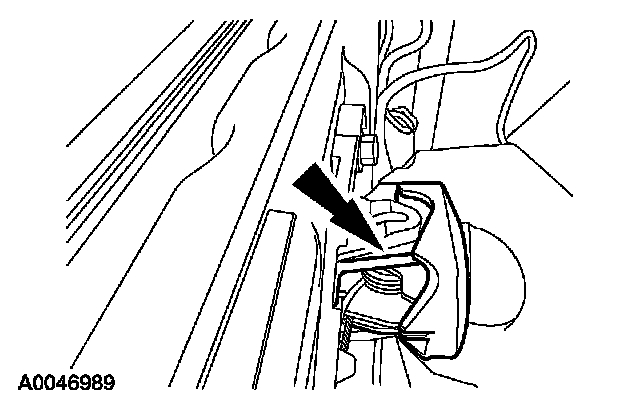

10. Position the interior door handle aside.
- Lift upward on the interior door handle retaining bracket and pivot the interior door handle out of the bracket.






11. Remove the rear door window regulator assembly.
- Remove the bolts.
- To install, tighten to 11 Nm (8 lb-ft).

12. To install, reverse the removal procedure.
