Test D: DTC C1095 - Anti-Lock Brake System (ABS) Hydraulic Pump Motor Circuit Failure
Test D: DTC C1095 - Anti-Lock Brake System (ABS) Hydraulic Pump Motor Circuit FailureNormal Operation
Fused battery voltage is supplied to the anti-lock brake system (ABS) module from battery junction box (BJB) fuses 6 (40A) and 33 (30A) along circuits SBB06 (BN/RD) and SBB33 (RD) respectively. Fused ignition voltage is supplied to the ABS module from smart junction box (SJB) fuse 18 (10A) along circuit CBP18 (GY/OG) and ground is provided along GD120 (BK/GN).
The operating voltage required to run the hydraulic pump motor is in a range between 10 and 17 volts.
Possible Causes
^ Fuse(s)
^ Circuit open
^ Hydraulic pump motor
^ ABS module
CAUTION: Use the flex probe kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

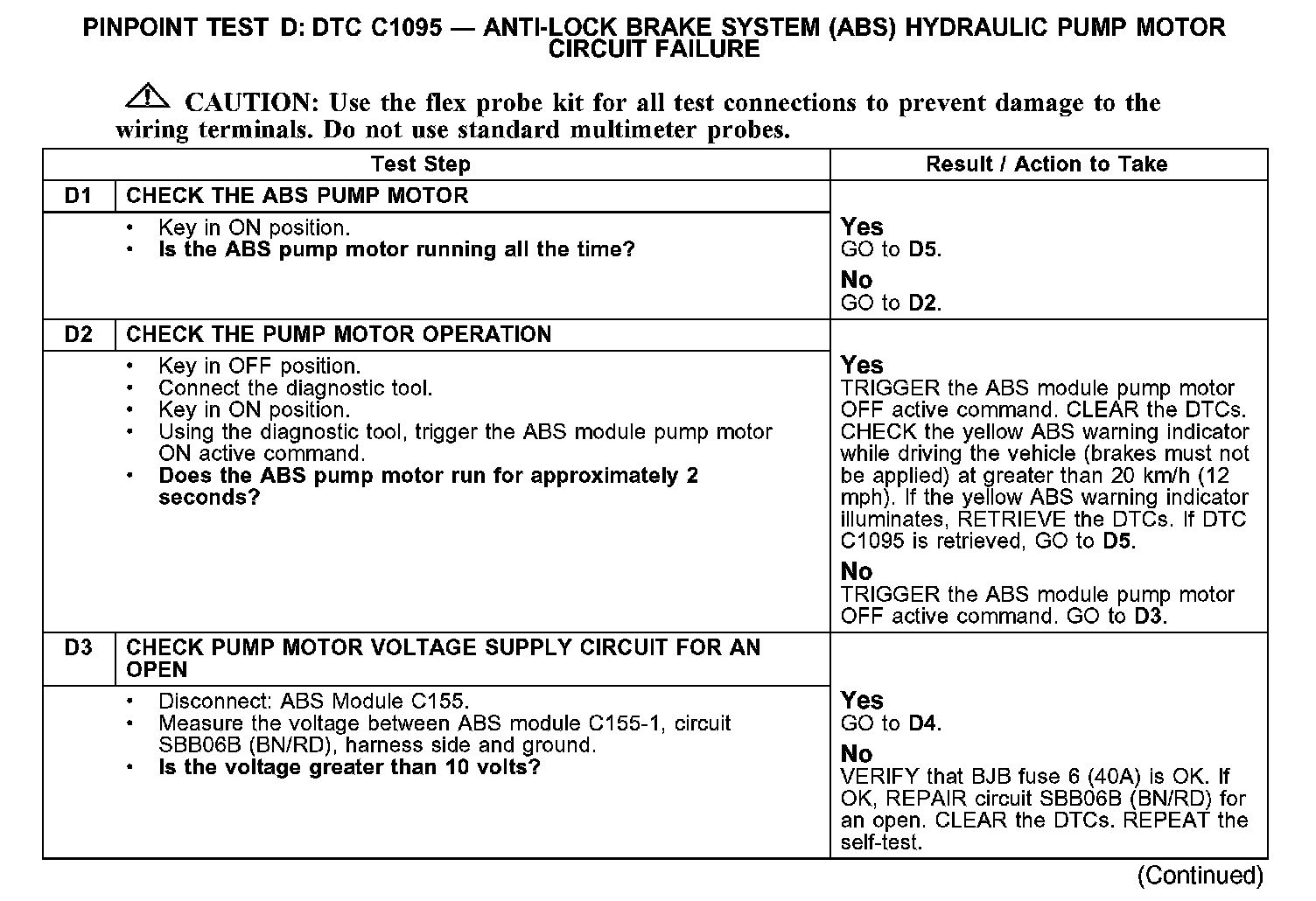

D1-D3:

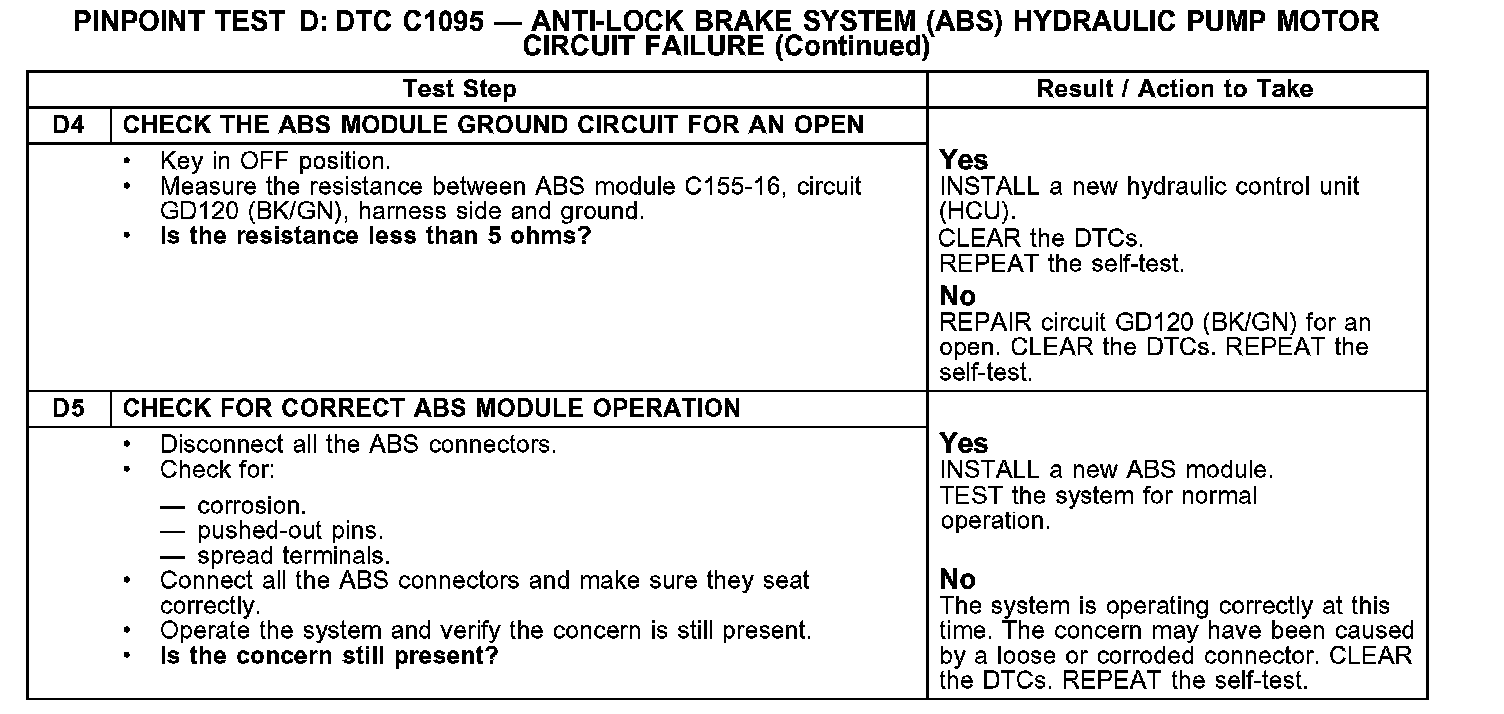

D4-D5:
