Home >> Ford >> 2006 >> Explorer 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Sunroof / Moonroof Module >> Diagrams

Sunroof / Moonroof Module: Diagrams

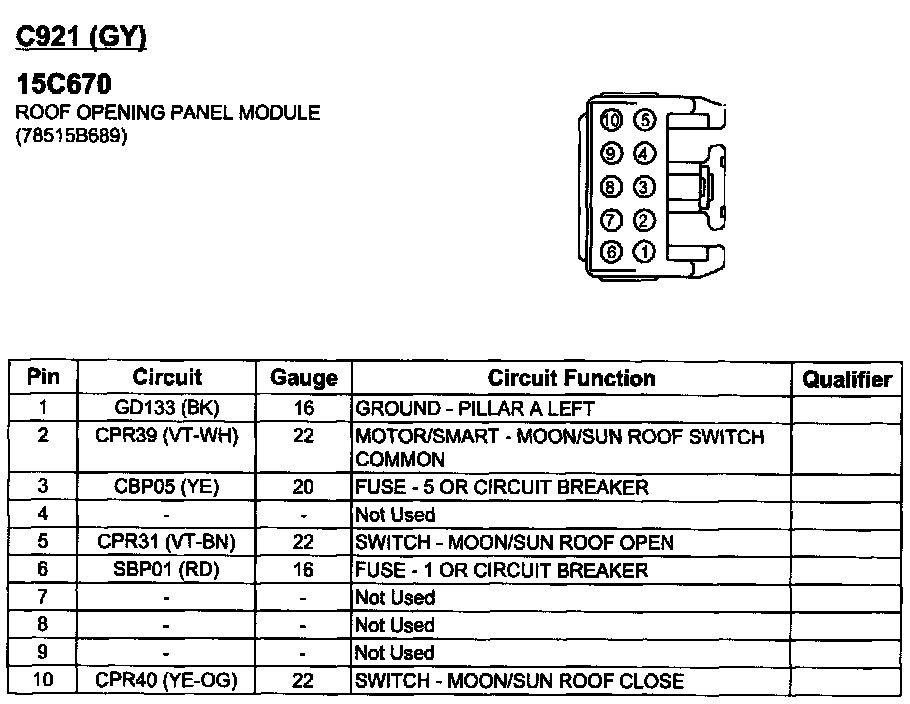

C921:
