214, Feel-Harsh (Some/All)

214 (part 1):




214 (part 2):




214 (part 3):

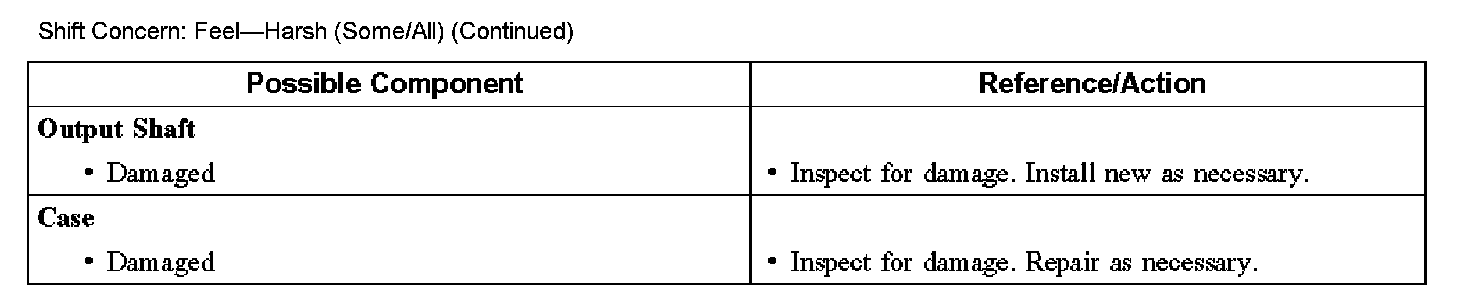

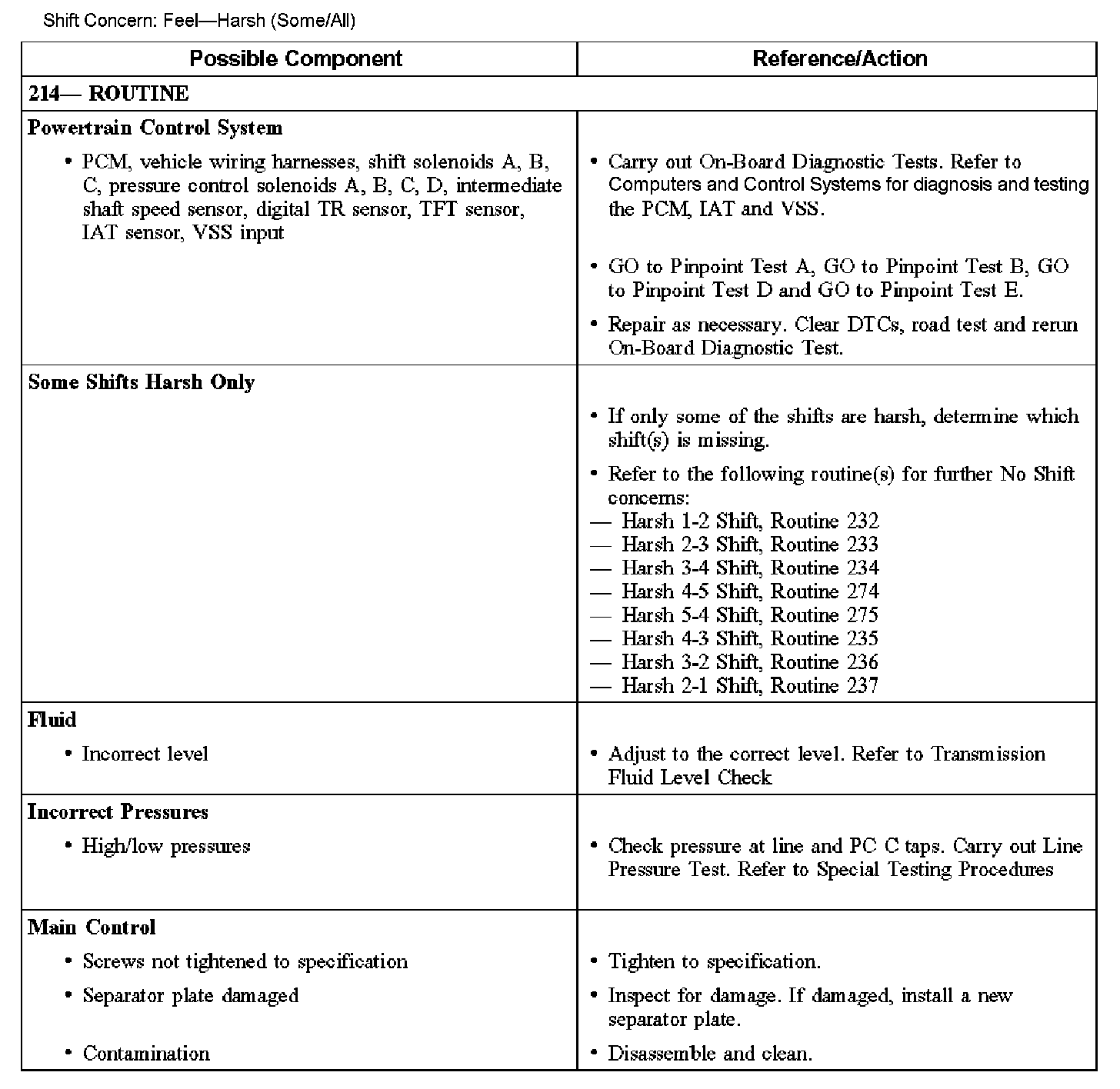

Shift Concern: Feel-Harsh (Some/All)
