Air Duct: Service and Repair

AIR INLET DUCT

Removal and Installation
1. Remove the heater core and evaporator core housing.







2. Remove the air inlet duct.

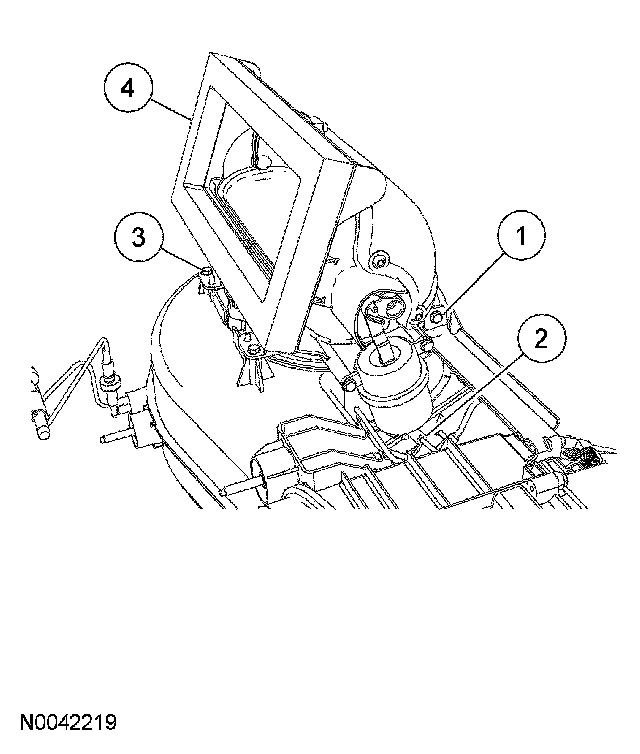

1 Remove the support bracket screw.
2 Disconnect the air inlet door vacuum control motor vacuum connector.
3 Remove the 3 air inlet duct screws.
4 Remove the air inlet duct.

3. To install, reverse the removal procedure.
