5R55S Automatic Transmission
>>
Test F: Solenoid Mechanical Failure
Test F: Solenoid Mechanical Failure

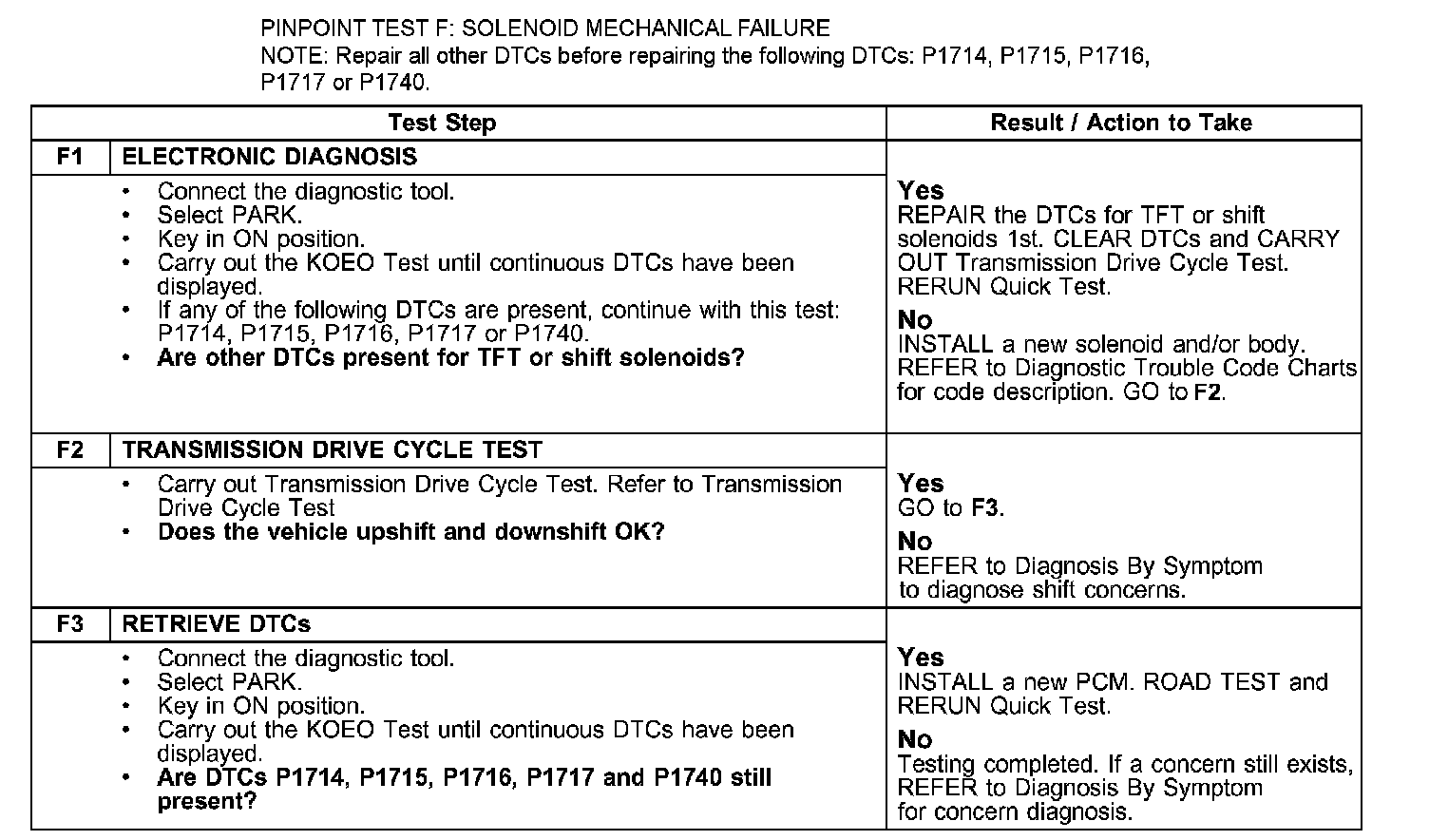

PINPOINT TEST F:
SOLENOID
MECHANICAL FAILURE
F1-F3:
NOTE:
Repair all other DTCs before repairing the following DTCs: P1714, P1715, P1716, P1717 or P1740.
