Timing Components: Specifications

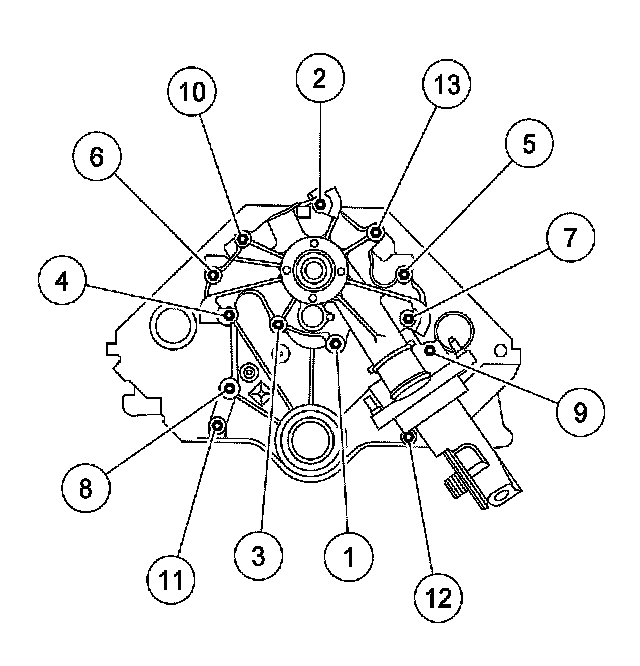

Timing Cover





Capscrew No. 12 10 Nm (89 inch lbs.)
All other fasteners 28 Nm (21 ft. lbs.)
Oil pan-to-engine front cover bolts 10 Nm (89 inch lbs.)

Crankshaft pulley bolt 160 Nm (118 ft. lbs.)
